- Open Front - No Beam
- 4496 mm 2-wheel alignment wheelbase
- Powerslide and Inflation Station capable
Heavy lifting, four-post lift alignment racks
Alignment Rack
Four-Post Lifts
High production automotive lifts and alignment racks
Hunter offers a four-post model for nearly every need. Easy-to-use open-front models make alignment easy. The widest runways and two wheelbase lengths make easy work of even large trucks. Add Inflation Station, PowerSlide®, and Alignlight options to really ramp up productivity.
New Harsh Duty options are available for high road salt/brine use applications.
Features at-a-glance
-
Open-front or closed-front configurations
-
Stainless steel turnplates standard
-
Built-in slip plates standard
-
Two moveable worksteps standard
Specifications at-a-glance
-
8164 kgCapacity
-
2 x 4083 kgCapacity jacks
-
660 mmWide runways
-
4496 or 5360 mm2-Wheel alignment capable

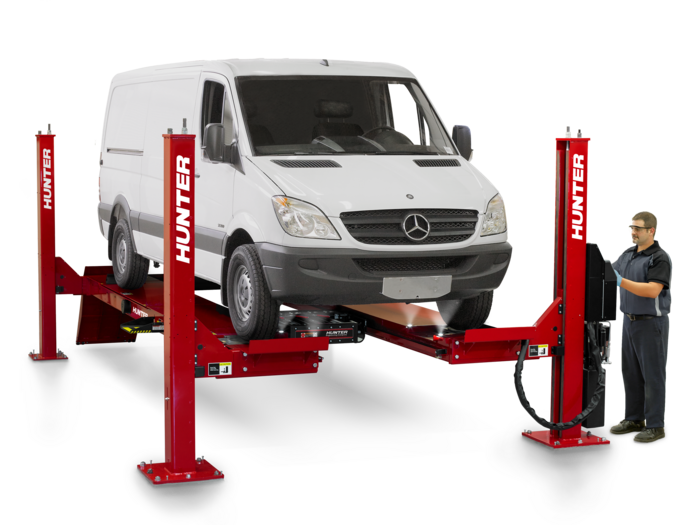

Hunter Four-Post Lifts
/
Four-Post Alignment Lift Overview
Hunter's industry-leading alignment technology on our four-post lift rack! Complete with Fully Integrated Alignment capabilities!
Hunter's New Swing Air Jacks for Vehicle Lifts at A Glance
Hunter Swing Air Jacks add capabilities for lifting vehicles off the runways during alignment procedures and other multi-service operations.
Alignment Check on a Four Post Lift
Hunter's industry-leading alignment technology on our four-post lift rack! Complete with caster measurements!
Hunter's Family of RX Scissor & Four Post Lift Racks
Hunter's family of Lift Racks, including scissor and four-post lifts are available in traditional or flush mount configurations. The RX16 features a power up mode, lifting sixteen thousand pounds.
The Hunter Four-Post Lift Rack: Detailed Operation
The foremost consideration with any lift rack is safety. The simple but sure locking system featured on Hunter’s L451 and L454 lift racks ensures the vehicle lowers only when you want it to.
PRODUCT FAMILY AT-A-GLANCE
L451
L451L
- Open Front - No Beam
- 5359 mm 2-wheel alignment wheelbase
- Powerslide and Inflation Station capable
L454
- Closed Front Beam
- 4495 mm 2-wheel alignment wheelbase
- Powerslide and Inflation Station capable
L454L
- Closed Front Beam
- 5359 mm 2-wheel alignment wheelbase
- Powerslide and Inflation Station capable
Four-Post Lift Features
1
2
3
4
5
Open-front workspace
Easy access to service points and jacks. (Standard on L451 models)
Capable runways
66 cm extra-wide runways can service vehicles up to 233 cm. Two lengths are available to accommodate 449.6 cm or 536 cm wheelbases.
High-capacity
Heavy-weight 8164-kg lifting capacity is best-in-class.
Swing air jacks
Two 4082-kg capacity swing air jacks come standard for unmatched height, reach and durability.
Integrated controls
Convenient console featuring push-button functions give technicians full-control.
1
2
3
4
5
Built-in slipplates
2235 mm to 4013 mm for 4-wheel alignments.
Stainless steel turnplates
Standard, for a lifetime of easy and accurate alignments. PowerSlide™ turnplates offer ease-of-use.
Airline access
Air supplied to jacks and auxiliary ports come standard.
Two movable worksteps
Sturdy, lightweight and lock into multiple convenient locations.
Optional AlignLights
See where you work. Lights shut off automatically when rack is lowered and turn on when raised.
1
2
3
4
Cables & locks
High-strength galvanized cables and 16-position louvered level locks provide long, reliable life.
Louvered approach ramps
High-traction design prevents wheel spin – better than diamond plate or abrasive finish.
Tough umbilical covering
Protective cord covering prevents damage to air and hydraulic lines.
Built & installed locally
Designed & built in the USA, and installed locally by Hunter's highly-qualified service team.
Hunter's 3-Year Warranty
Hunter Engineering Company warrants new equipment replacement parts for three years and labor for six months.
Optional Harsh Duty Four-Post Lift
Racks with Hunter's Harsh Duty feature enhanced corrosion protection for those regions with high road salt and brine solution usage.
Stainless Steel Slipplate
Corrosion-resistant stainless steel slipplate tops.
Epoxy-Sealed Joints
Epoxy-sealed joints and seams prevent salt seepage between adjoining pieces of metal.
Zinc-rich primer
Zinc-rich primed, powdercoated and caulked runways and ramps.
Stainless Steel Turnplates
Corrosion-resistant stainless steel complete turnplates.
