Hunter's high-definition target with patented QuickClamp® adaptors are lightweight and durable.
Fast results with quick setup time
Hunter Standard Alignment
/
Alignment System
Standard Alignment Machines
Fast results with quick setup time

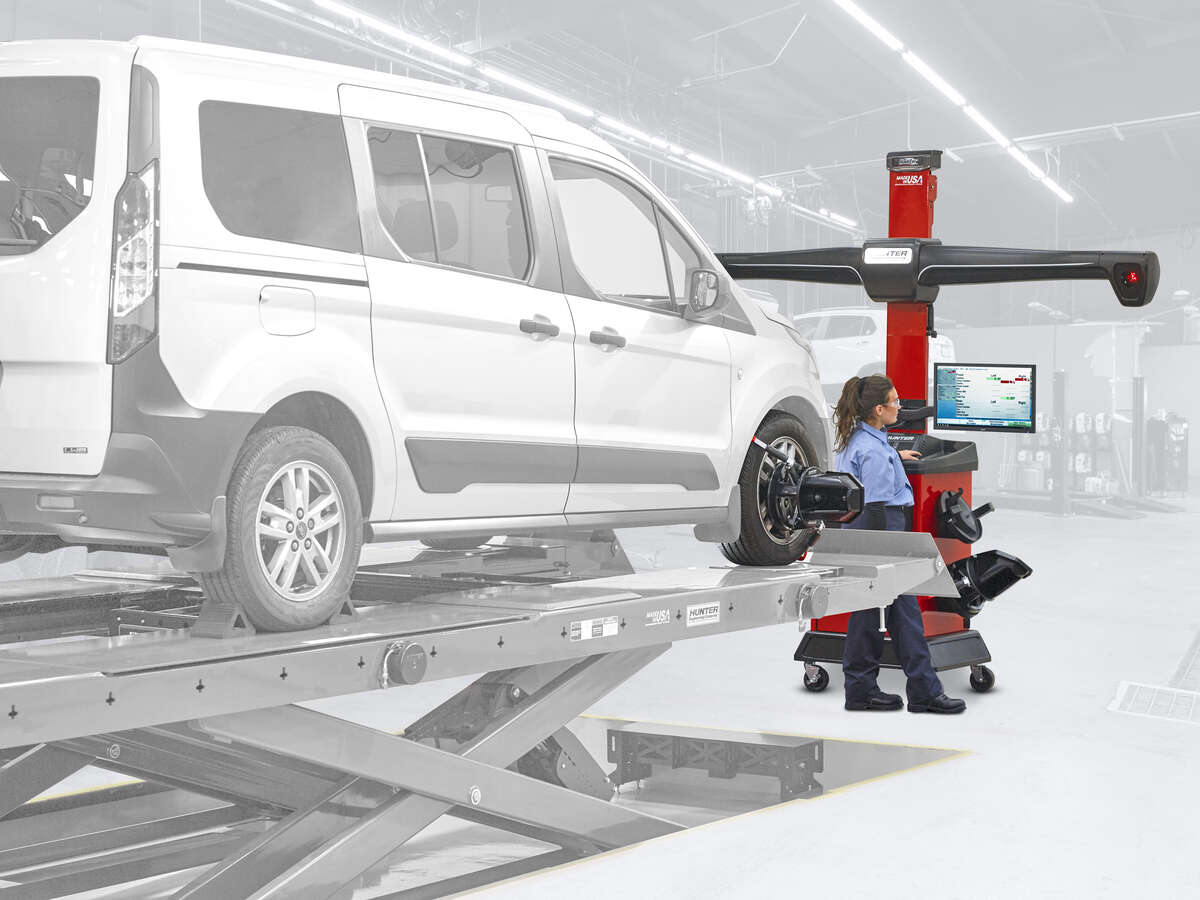

Hunter offers alignment systems with simple operation and low cost of ownership. The standard alignment machines offer quick and efficient alignment reading through powerful HawkEye® imaging technology and WinAlign® Lite software.
Features at-a-glance
-
Easy and safe wheel adaptors
-
Capable WinAlign® Lite software
-
High durability, high uptime
-
Comprehensive vehicle coverage
Specifications at-a-glance
-
2 minuteSetup time
-
24.5 in.Maximum wheel diameter
High-definition targets
Camera Sensors
High-resolution camera sensors capture alignment measurements on all four wheels.
Industry-proven software
Hunter's WinAlign® alignment software is optimized for speed and efficiency.
Alignment measurements in minutes
Standard alignment systems using HawkEye® digital imaging technology offers shops alignment service optimized for speed and efficiency with simple operation and low cost of ownership. Digital cameras measure the position and orientation of the wheels with pinpoint accuracy using reflective targets.
1
Select a vehicle
2
Measure angles
3
Make adjustments
4
Present results
Select a vehicle
- Recall specifications
Measure angles
- Install targets
- Capture measurements
- Review "before" results
Make adjustments
- Follow the adjustment instructions
- Print before-and-after results
Present results
- Sell more alignments
- Generate greater profits
Future-proof your shop
HawkEye Elite® X upgradeable aligner is the industry-standard in wheel alignment, featuring powerful software, QuickGrip® wheel adaptors, and setting you on the path for full ADAS calibrations.
Why Do Cars Need Wheel Alignment?
When your car is out of alignment, you may experience irregular tire wear, handling problems or a crooked steering wheel. A wheel alignment adjustment can correct these problems.
Fully Integrated Alignment Equipment from Hunter Engineering
Hunter's fully integrated alignment system reduces the technician's trips around the vehicle, and greatly reduces trips to the alignment console.
A New Age of Wheel Service
In times of change and uncertainty, you need partners you can always rely on. An American company manufacturing high-quality products in America, fully embracing innovation through increasingly sophisticated technology – that was Hunter Engineering 75 years ago at its beginning, and it’s Hunter Engineering today.
Designed & Built in the USA
For 75 years, Hunter Engineering Company® has been designing and building automotive service equipment in the USA.

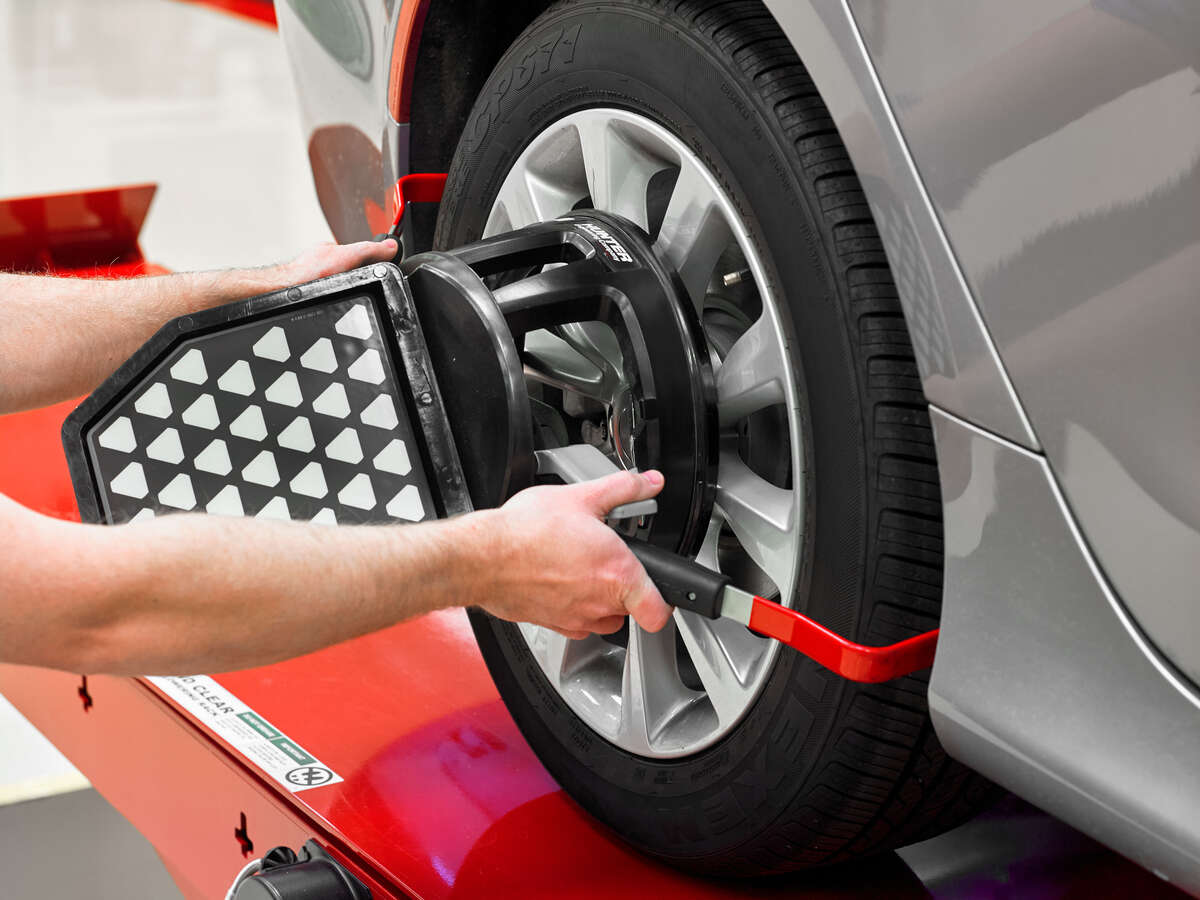

Speed setup time with Hunter's patented QuickGrip® adaptors and high-definition targets
Fast installation
Spring-loaded clamping arms install easily — off-center placement has no effect on accuracy.
Avoid rim damage
Clamps hook tires and protective ring provides no metal-to-metal contact.
Efficient design
Lightweight, durable and low-profile form make QuickGrip® adaptors a technician-favorite.
Easy to clamp
Spring-loaded arms secured by thumb switch grip the tyre for faster setups with no knob twisting.
No metal-to-metal contact
Clamping arms grip the tyre, not the rim. A protective rubber ring sits between the target and the rim.
Lightweight and durable
Weighs only 3.3 kg (7.4 lbs.) and shop-tough to withstands drops with no electronics, cables or necessary calibration.
Quick Change Hooks
Interchangeable arms cover up to 940 mm (37 in.) assemblies.
QuickComp®
Compensate all wheels and capture initial measurements in one motion.
Deep-wheel extension
Service vehicles with deep rims or protruding hubs without any problem.
Standard accessory
Live Bar Graph Measurements
See live measurements and perform adjustments with ease using large, color coded bar graphs in standard and customizable views.
WinToe® adjustments
Ensure a straight steering wheel every time without repeated adjustments or using a steering wheel holder.
Power Tools
Advanced adjustments made easy with built-in Power Tools to guide the way for control arms, bushings, shims, and wheel off adjustments.
Ride Height Spec Coverage
Easily obtain ride height based alignment specifications for BMWs, Mercedes-Benz, Peugeot, and more with built-in calculations plus optional inclinometer tool.
Front Axle Only Measurement Option
Quickly perform basic, front end alignments by only mounting the front axle targets. No rear target mounting required.
Soundguide
WinAlign® provides auditory indicators that sound during the adjustment process for when the console screen is not visible.
Wheelbase and Track Width Measurements
Get a full picture of the vehicle's wheelbase and track width measurements.
Vehicle Symmetry Measurements
See accurate wheelbase setbacks and track width offsets to properly diagnose and align vehicles.
Patented and industry-proven alignment features
Save your technicians time and effort with live bar graph measurements, WinToe®, Power Tools, and more.
Set up the right alignment configuration for your shop
Offer bay-to-bay flexibility with completely mobile cabinet and camera sensors or fixed-column sensors with manual adjustable height.
Each configuration comes with self-centering wheel adaptors.
See available options
Handheld Remote
Save time and effort with remote control around the shop bay.
CodeLink®
Perform steering system resets for supported vehicles.
Remote Indicator
See adjustments live when working under the vehicle rear.
Wheel-off adaptors
Install alignment targets or sensors on hubs to ease adjustments with the wheel out of the way.

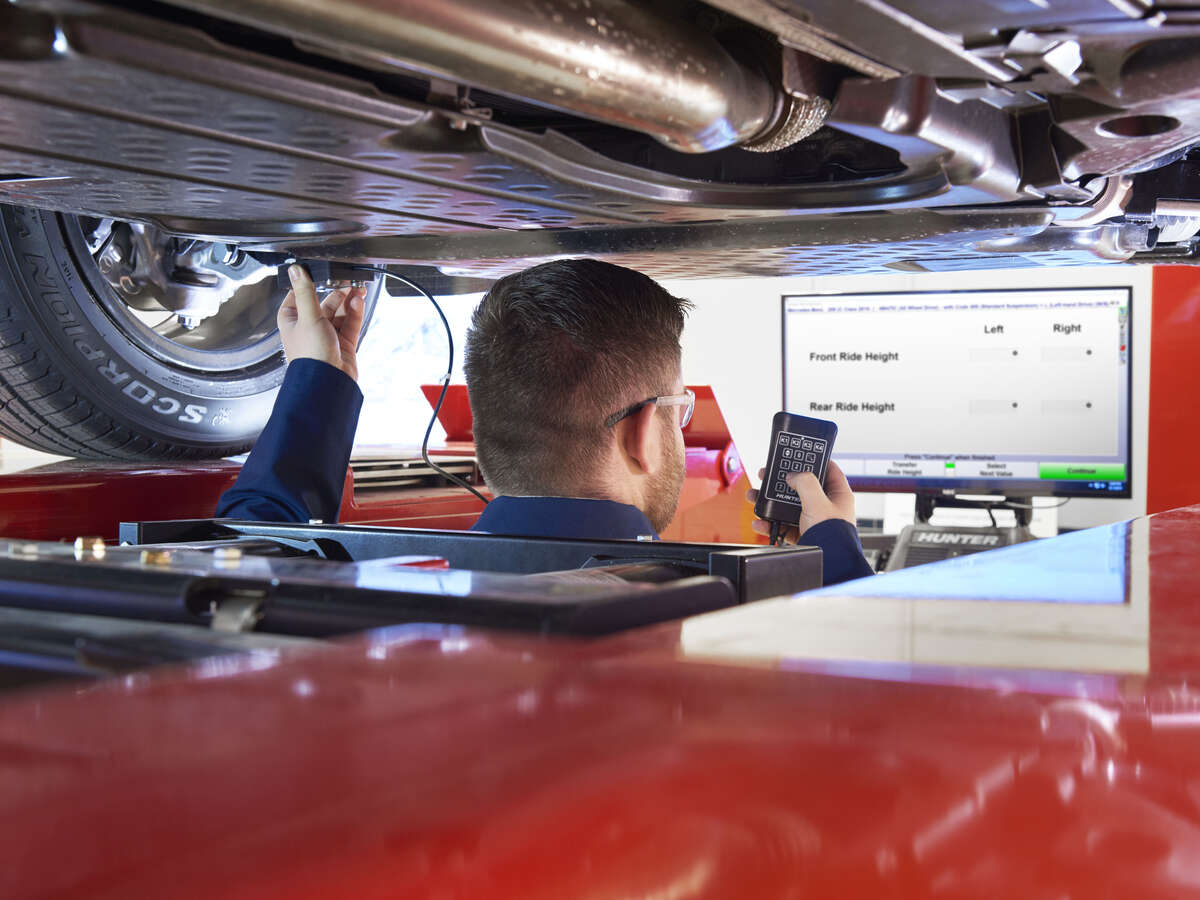

Handheld inclinometer
Easily obtain ride height based alignment specifications for BMWs, Mercedes-Benz, Peugeot, and more with built-in calculations.
See wheel targets
HS223
High-definition wheel targets with QuickGrip® adaptors
Requires camera sensors
HS221
High-definition wheel targets with self-centering adaptors
Requires camera sensors

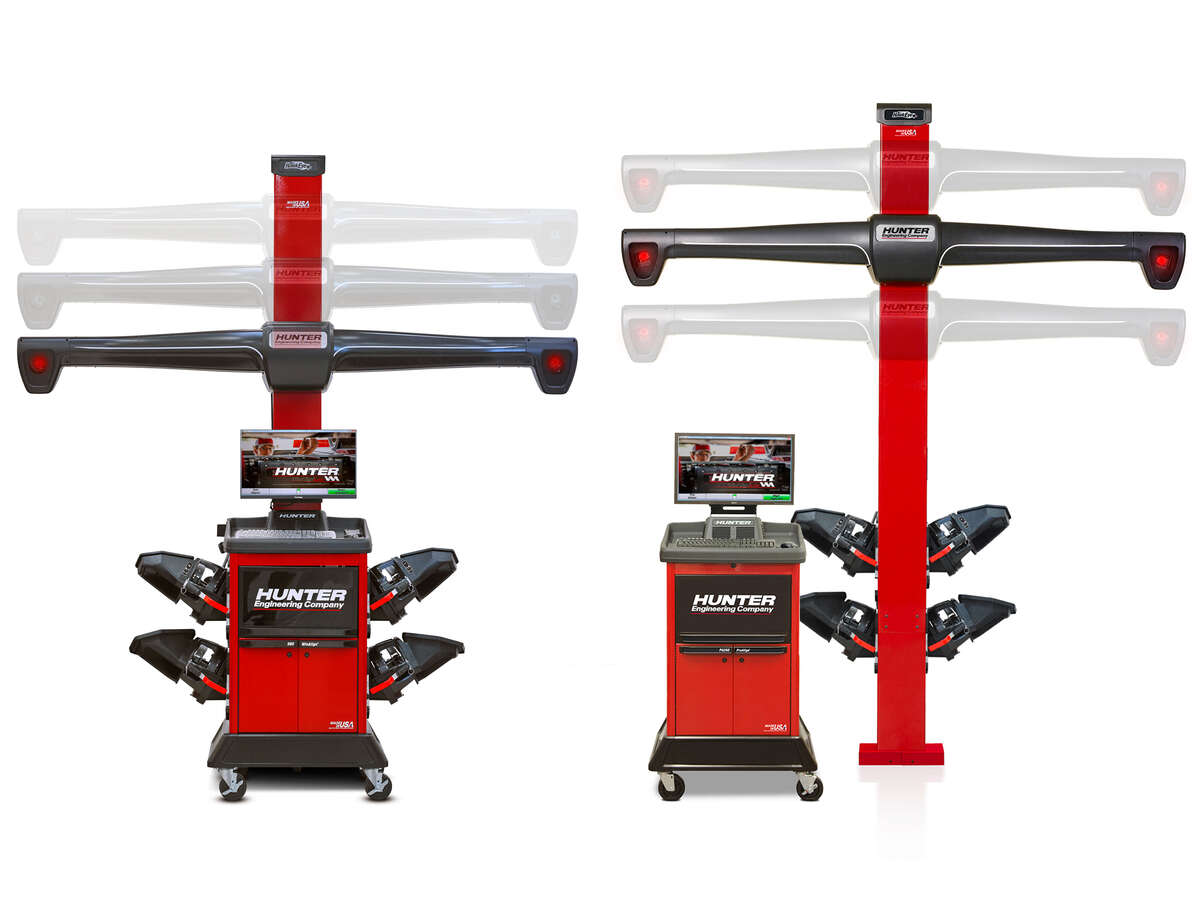

See camera sensors
Cabinet Mount (CM)
Services multiple alignment bays and provides a full range of travel for additional lift height.
MANUAL LIFT (ML)
Provides a full range of vertical travel for additional lift height.
FIXED COLUMN (FC)
Suitable for specific alignment height ranges
Wall Mount (FC)
Enable the optimal use of available space.
Get more work done with less hassle using Fully Integrated Alignment (FIA)
Automatic locking and unlock functions allow your technicians to focus more on the alignments.
Precision Cameras
High-resolution cameras measure wheels automatically once the fourth target is installed.
WinAlign® Console
Patented
Centralized system that guides the technician through the alignment process.
PowerSlide® System
Patented
Slipplates and turnplates automatically lock and unlock at appropriate times.
Inflation Station
Patented
Automatically inflates all four tires simultaneously while recording final pressure.
AlignLights
Illuminate your work area with automatic on/off during lift functions.
Calculate your payoff and profits
Invest in the industry-standard
HawkEye Elite® features powerful software tools, dedicated high-resolution camera sensors, and the technician-favorite QuickGrip® wheel adaptors.
Having trouble deciding?
We have listed some things to consider when choosing an alignment machine.
Access vehicle-specific undercar information in the alignment bay
- Explore a vast collection of vehicle-specific undercar information
- Eliminate time-consuming manual searches with our online database of advanced sensor reset requirements
- See how-to's and instructions featuring illustrations, images and videos
Improve communication all around
Communicate results & educate your customers on misalignment, while accessing vehicle-specific undercar information in the alignment bay with WebSpecs®.
See communication features
Communicate results and maintain customer data
- Save & recall vehicle results
- Allow customers to view results online
- Provide results to other business to validate warranties or insurance claims
Eliminate confusing technical conversations
- Show easy-to-understand videos, illustrations and images
- Help your customer make informed decisions
- Solidify trust with your customers
Connect your equipment to your business
- Maximize your shop's performance
- Simplify customer discussions with selling tools
- View extensive undercar information
1
2
3
Monitor Trends
Get a high-level overview of your alignment machine usage trends.
Receive daily reports
Setup to receive daily Push Reports to keep your goals and performance in check.
Recall Past Results
View previously serviced vehicles and recall printouts.
Documents
-
Brochures
-
Specification Sheets
-
Accessories
Hunter's 3-Year Warranty
Hunter Engineering Company warrants new equipment replacement parts for three years and labor for six months.
Proudly designed & built in the USA
From raw steel to finished product. When you choose Hunter, you're investing in more than 1,000 American workers.
