Safe and fast tire changers for big tires

Heavy-Duty

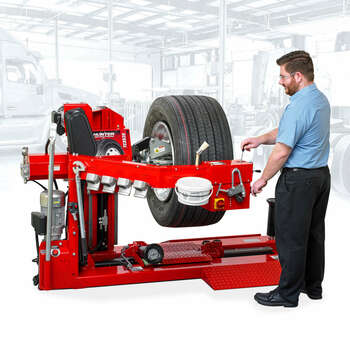

Heavy-Duty Tire Changers

Powerful tire changers for big tires

Whether your need is a capable, efficient machine for semi-truck tires, or a tire machine that will change skidder tires, Hunter has a model to suit. The TCX635HD outpaces any tire changer for over-the-road truck tires with none of the fatigue and safety risk of bars and hammers. The TCX645HD can do all that, plus handle implement tires up to 90 inches in diameter.

Features at-a-glance

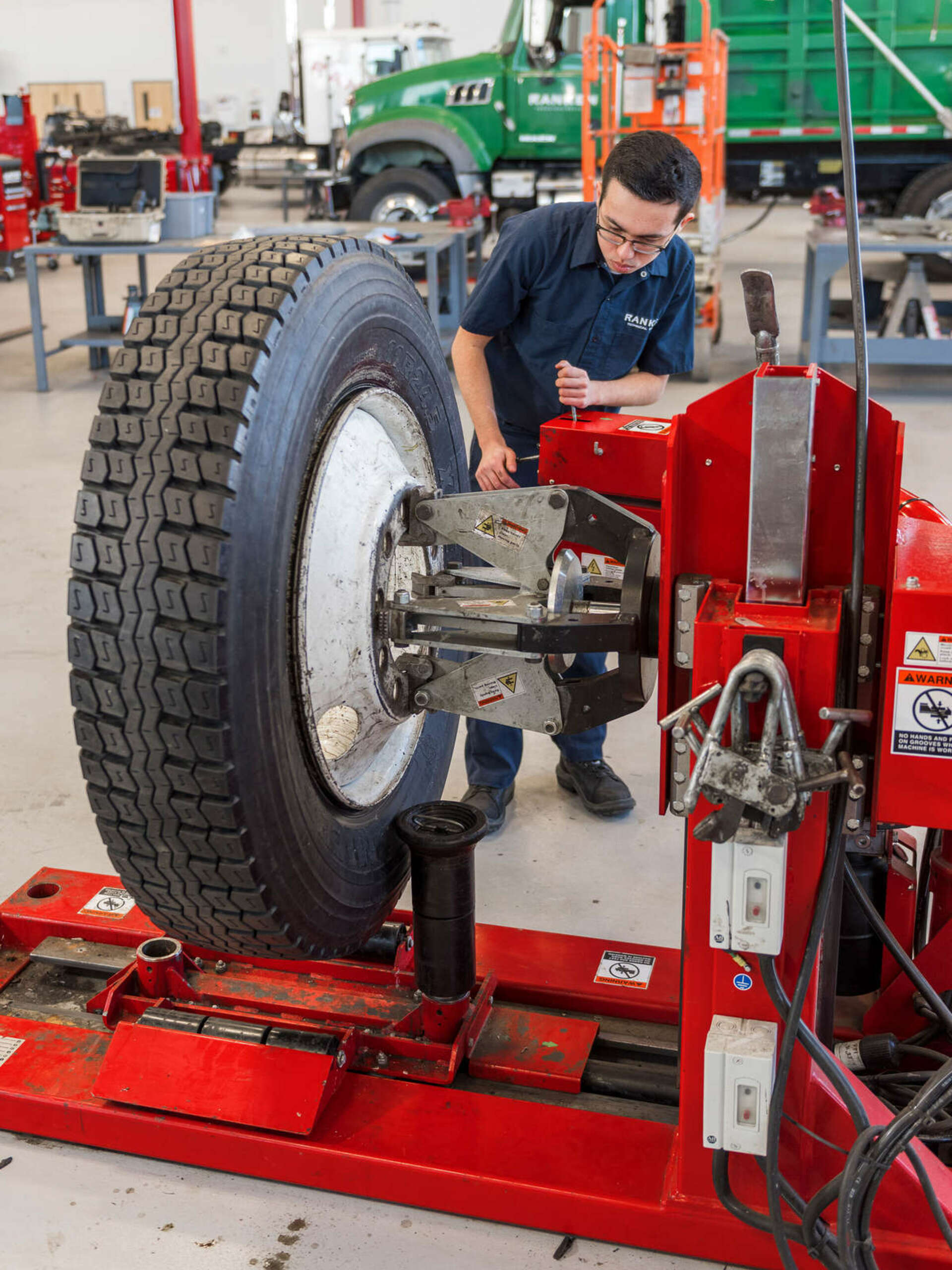

Tulip-style wheel clamp
Safe controls
Roller Demounting
Standard Hook

Get a quote

Hunter Heavy-Duty Tire Changers

/

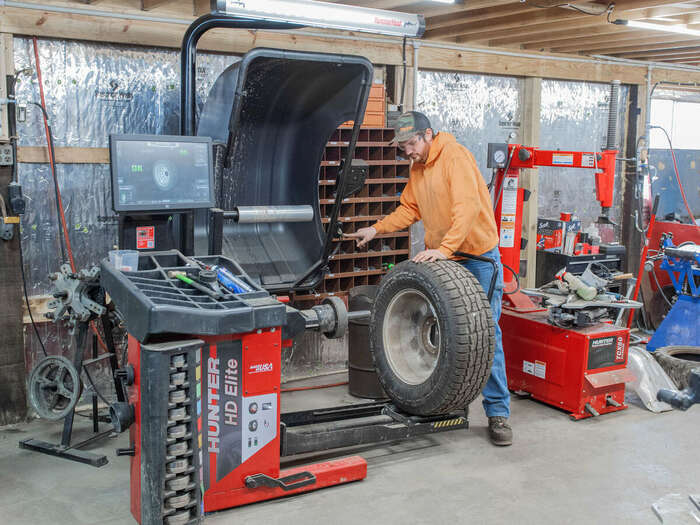

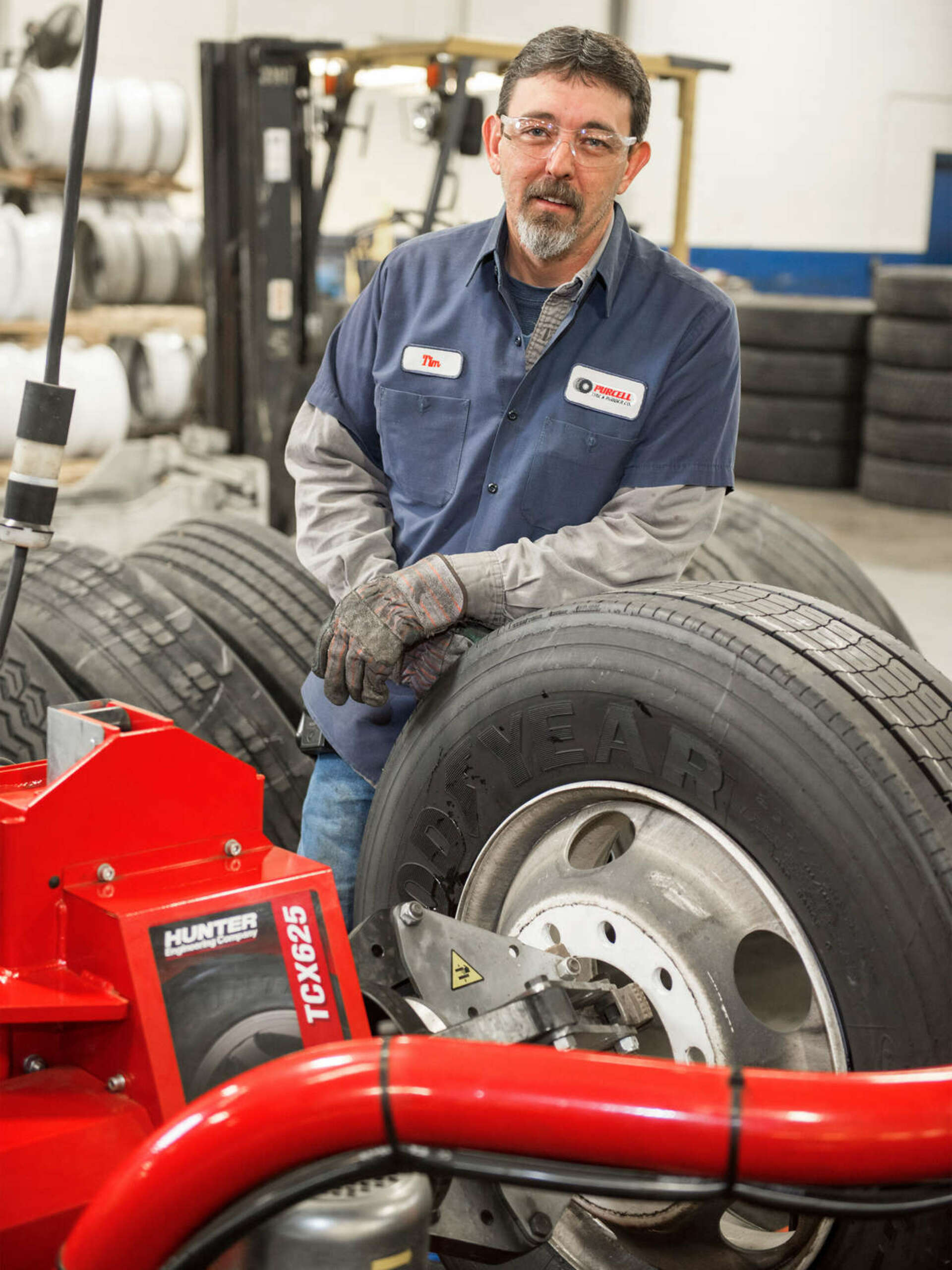

Thomas Tire relies on Hunter to maintain trust with HD and commercial customers

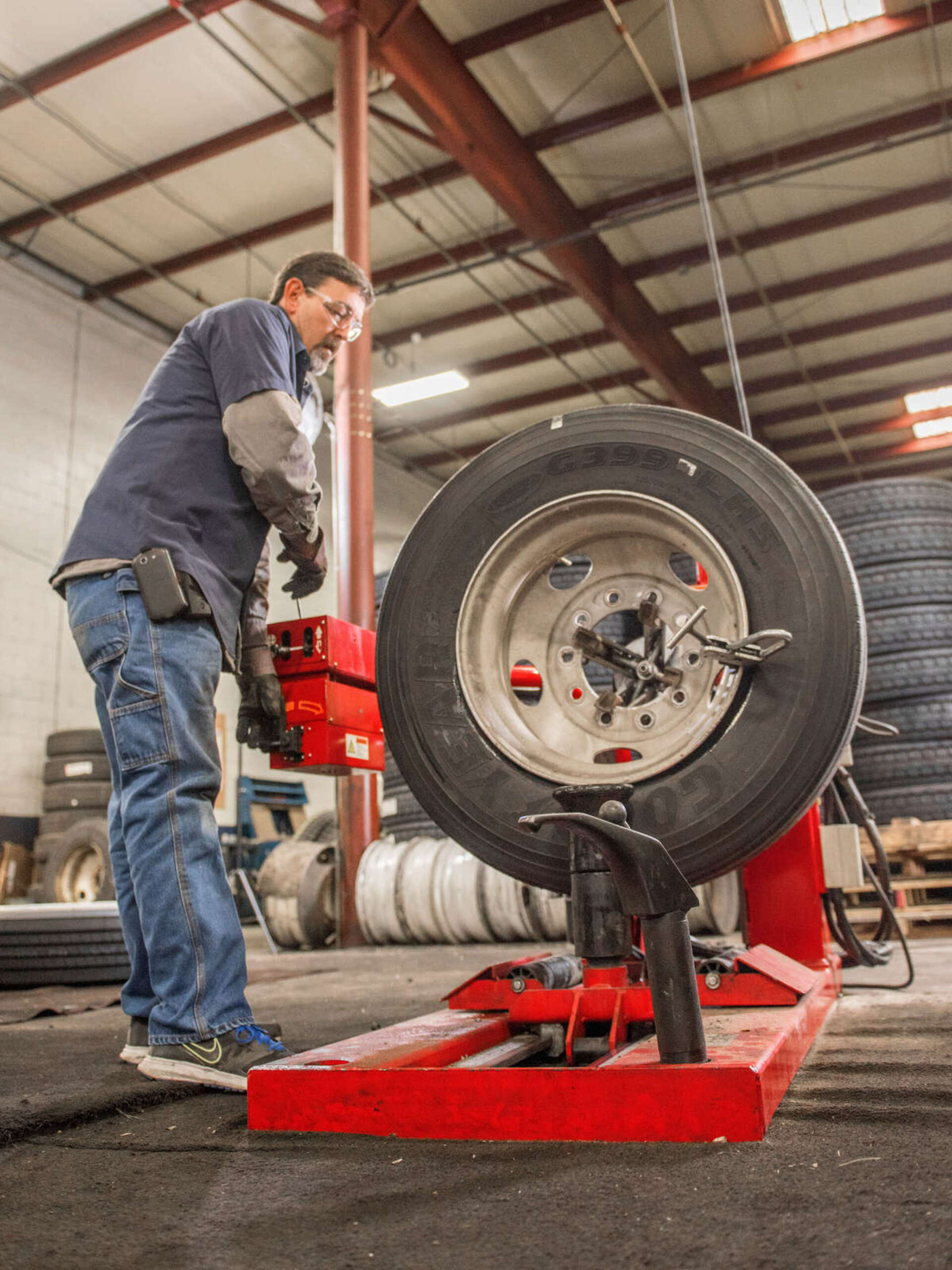

Customers have long relied on Thomas Tire in Asheville, NC to take care of their HD vehicles, says co-owner Sally Thomas. In turn, Thomas relies on Hunter equipment to maintain that trust. “Our dad was always a firm believer in investing in quality, and that’s what we’ve done,” she says.

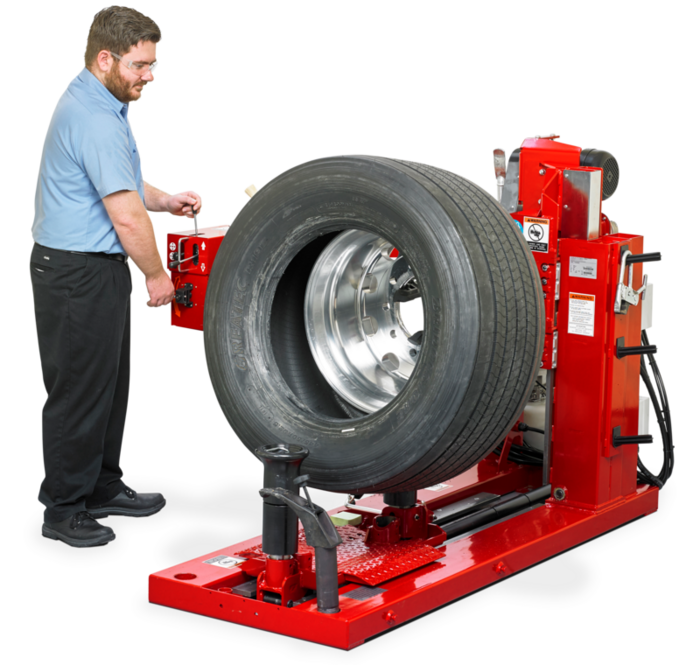

TCX635 Heavy Duty Tire Changer

Plenty of power and speed to change even the most difficult HD truck tires easily and safely.

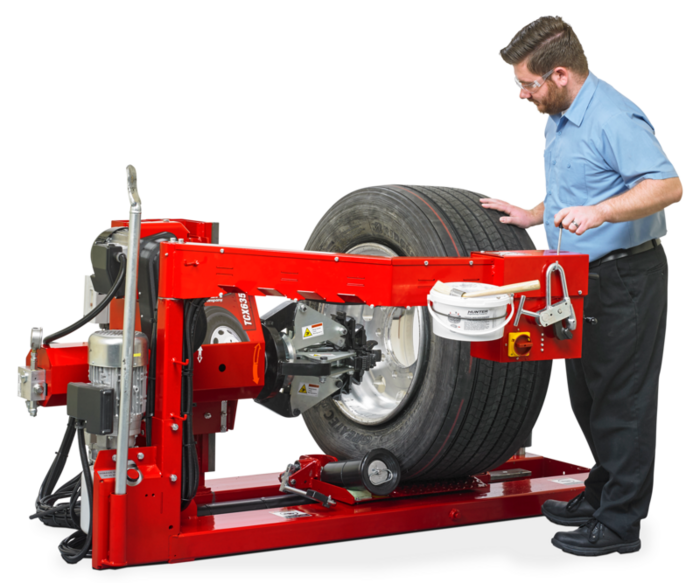

The Hunter TCX635HD Tire Changer

See the easy-to-use features of the Hunter TCX635HD tire changer that help technicians properly service heavy-duty wheel assemblies.

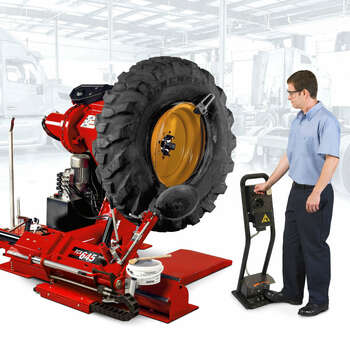

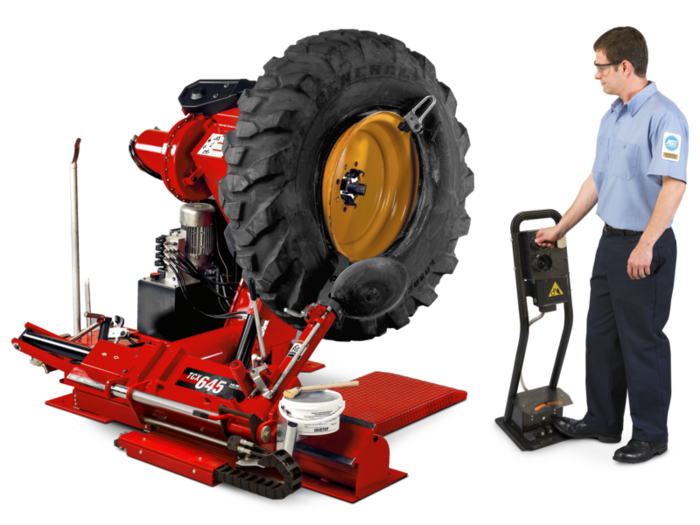

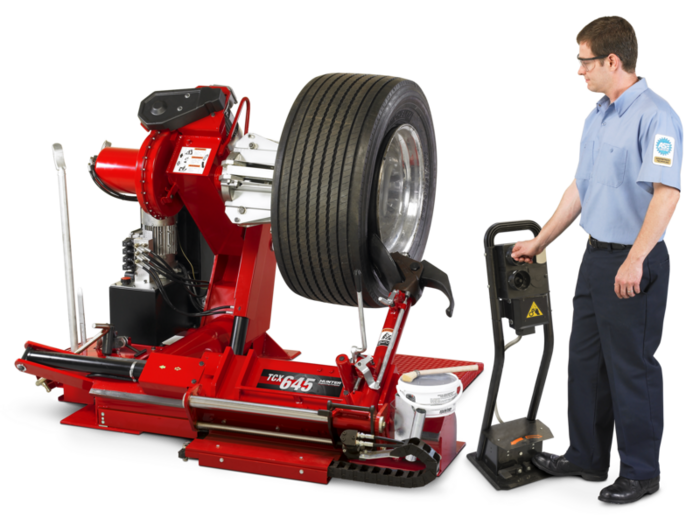

TCX645HD Heavy Duty Tire Changer from Hunter Engineering

TCX645HD Quick Ops-Road Wheels

Watch the process of demounting and mounting road wheels on the Hunter TCX645HD heavy-duty tire changer.

TCX645HD Quick Ops-Skidder Wheels

See how easy it is to properly and safely service skidder wheels on the Hunter TCX645HD heavy-duty tire changer.

PRODUCT FAMILY AT A GLANCE

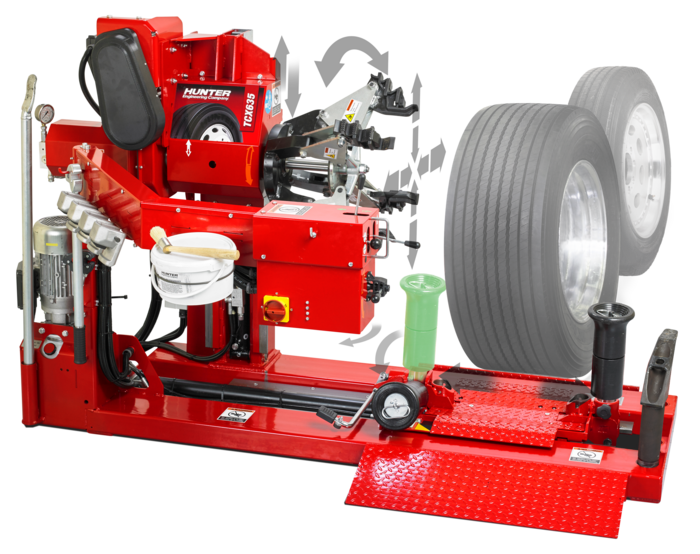

TCX635HD

Extra torque, extra speed

14.5 - 24.5 in. rim diameter
3.94 in. min rim hole diameter
58 in. max tire diameter
27 in. max width
1,545 lbs. max weight
9 rpm CW & CCW
208-240V, 1ph, 60Hz, 20A

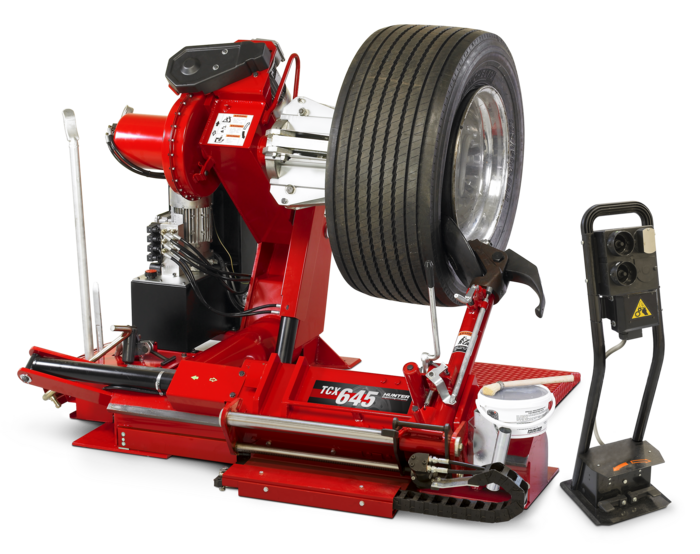

TCX645HD

Truck tires to skidders

14 - 46 in. rim diameter
3.94 in. min rim hole diameter
90.5 in. max Diameter
42 in. max width
2,200 lbs. max weight
10 & 5 rpm CW, CCW
230V, 3ph, 60Hz, 26A

TCX635HD FEATURES

Operator-friendly design

Low risk - No hammers, no bars, no lifting very heavy tires
Low service height - Easy to roll on and no fear of tire falling off during demounting
Optional ramps - Popular "plus" model includes ramps, and mounting bar

Superior wheel accommodation

Easy match mounting - Rotate tire on rim when needed for the smoothest ride
Specialty rim friendly - Standard hook can be used to mount and demount challenging tires and rims without fear of damage
Simple controls - Easy to use levers control all operations in a convenient and safe operator position
Versatile jaws - Secure small center holes, thick wide-based alloy wheels, centerless wheels, and much more

Powerful tools to assist

Fast and easy rollers - Most tires can be pushed on and off, no switching tools

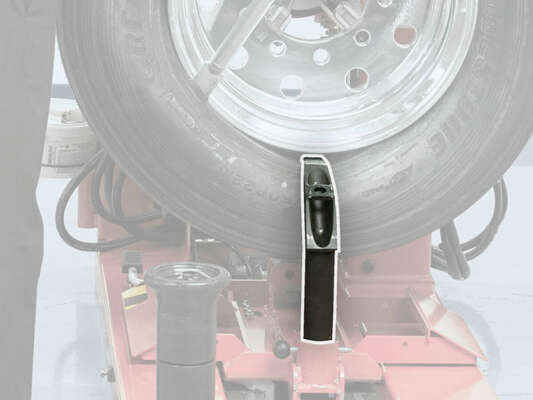

Inner "drop roller" - Speeds service times, never a need to remove to make room
Hydraulic carriage - Maximum power and fast tool positioning

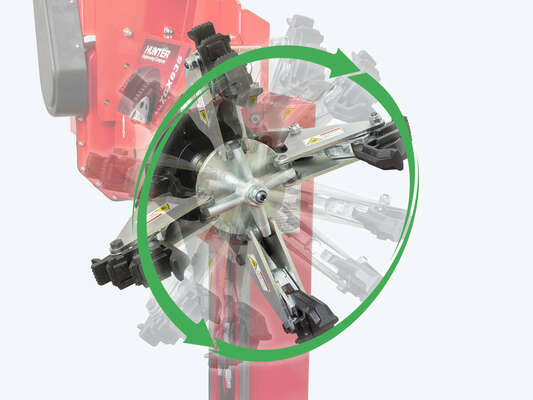

Tulip-style clamp

Quickly & easily clamp assemblies with no damage to the wheel

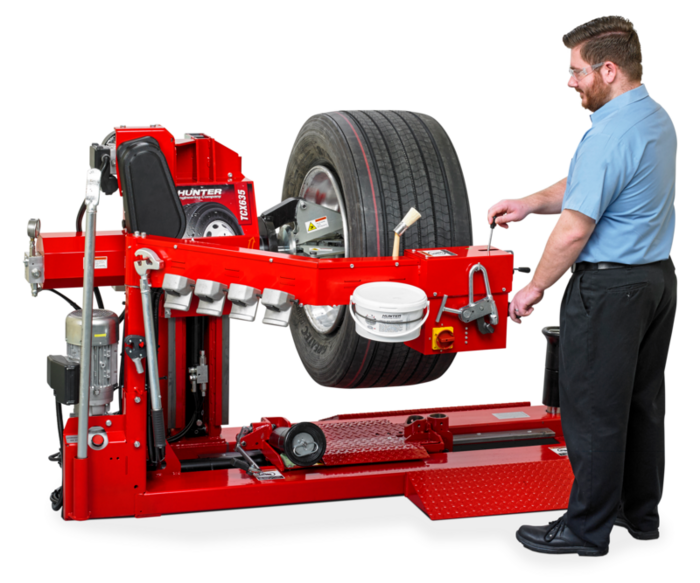

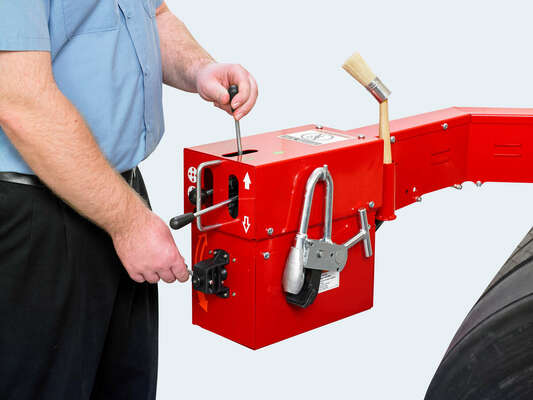

All-in-one controls

Houses all user operations, pivots to allow flexibility, and height is adjustable (two positions)

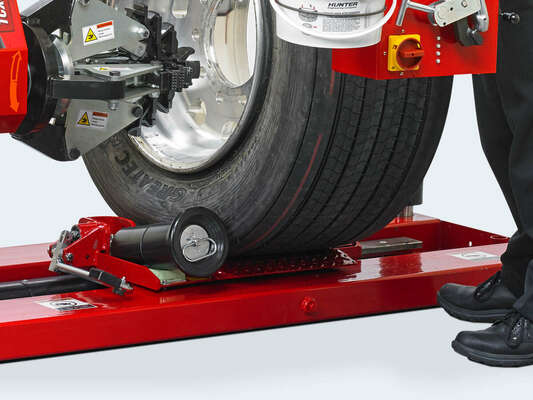

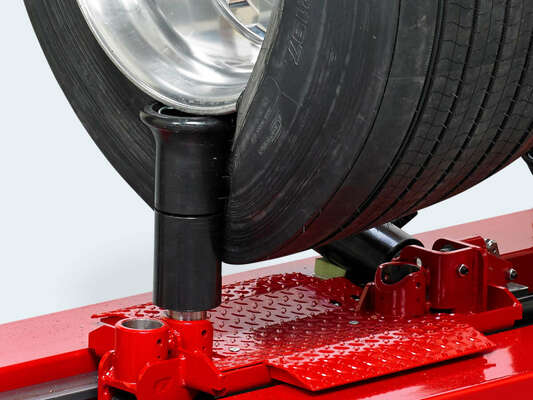

Bead-breaking rollers

Quickly & easily break tire beads with no wheel damage. Drop roller saves time.

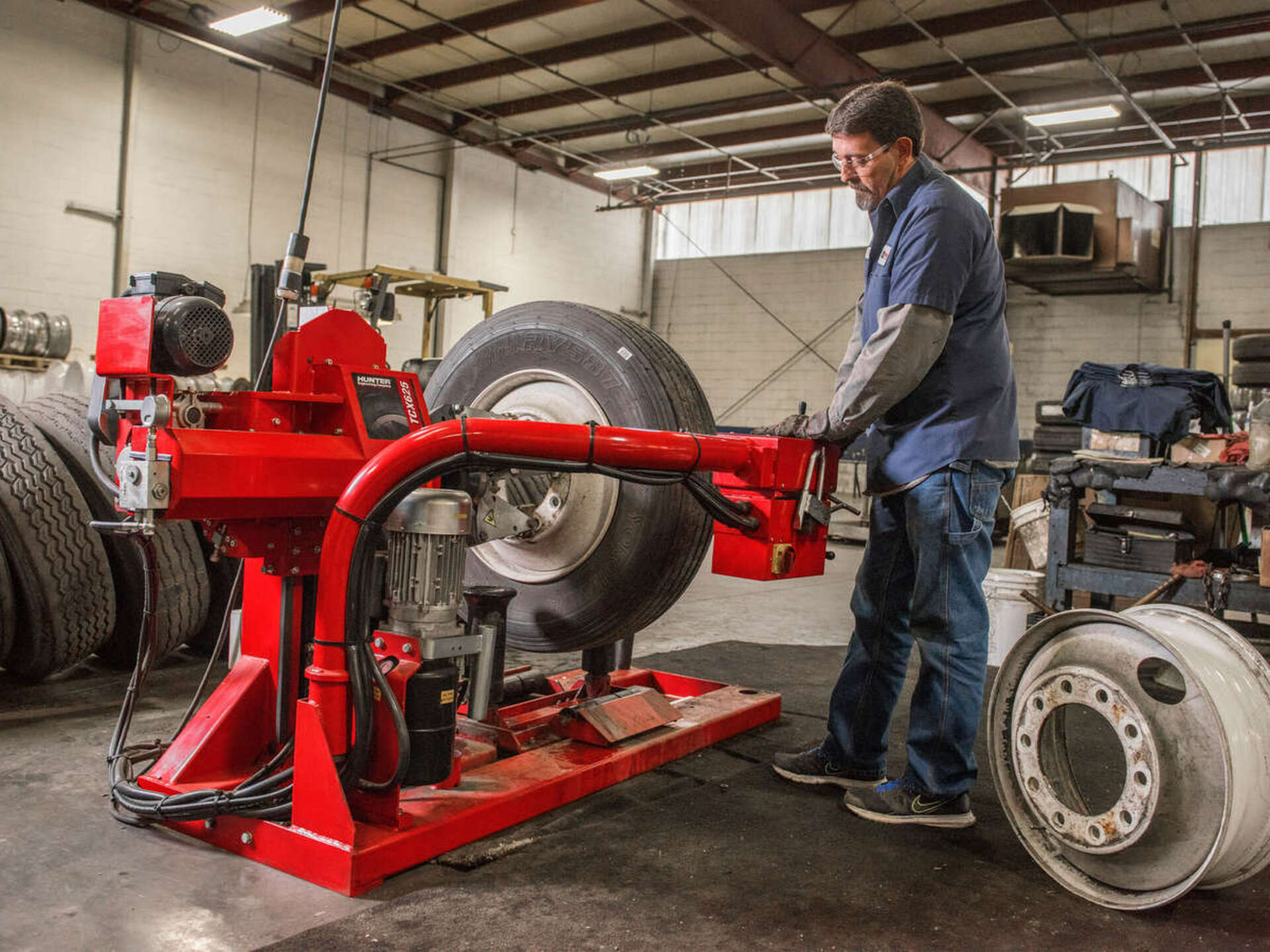

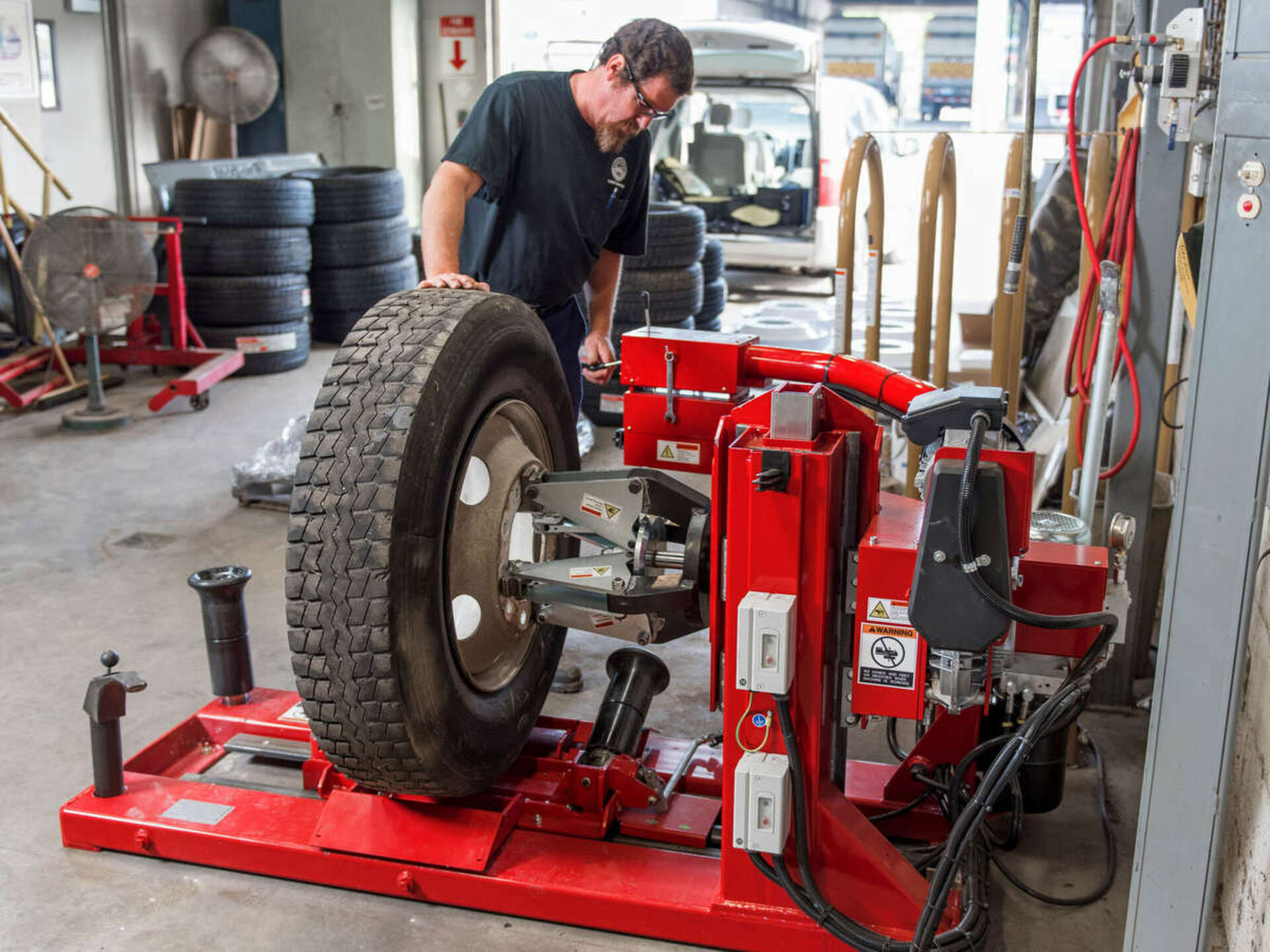

Technician safety

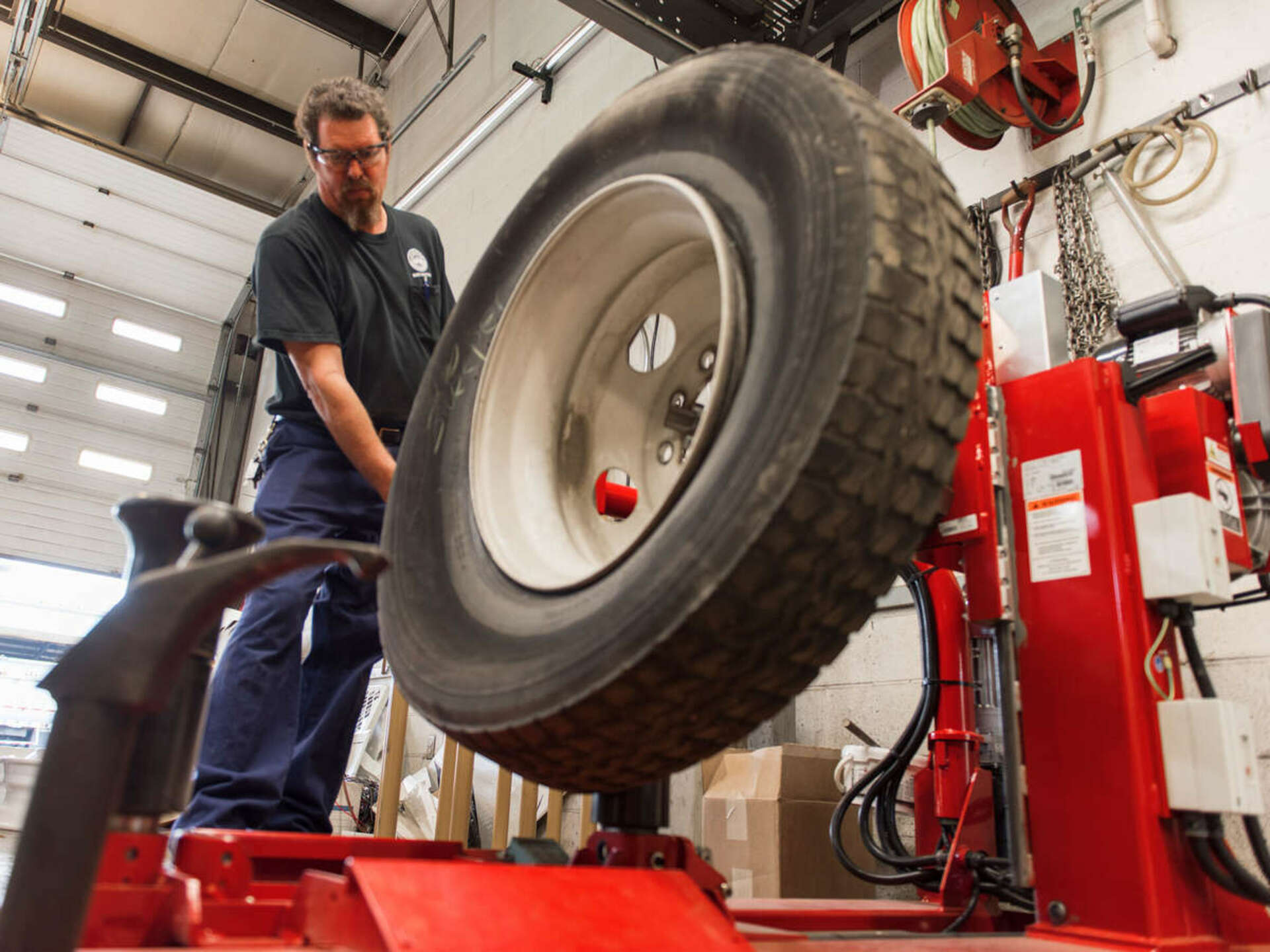

The TCX635 functions close to the ground to keep heavy tires at a safe height.

Easily service special assemblies

Use the standard hook attachment to mount and demount tubed or sharp edged wheels, or other more difficult assemblies.

Send a message to your local Hunter business consultant to schedule a free on-site demo.

This contact form is intended for legitimate Hunter equipment and service inquiries. All other use is prohibited and will be discarded. See Full Terms of Use

Not in ?

Send a message to your local Hunter business consultant to schedule a free on-site demo.

This contact form is intended for legitimate Hunter equipment and service inquiries. All other use is prohibited and will be discarded. See Full Terms of Use

Not in ?

TCX645HD FEATURES

Operator-friendly design

Mobile controller - Full access to controls when servicing the front or back of large assemblies. (Wireless optional)
Low risk - Use powerful tools instead of bars and hammers. No lifting of very heavy assemblies

Superior wheel accommodation

Versatile jaws - Clamp center holes as small as 3.94 in, or rims as large as 46"
Optional skidder clamp - Useful when servicing difficult skidder style double drop center wheels
Spring loaded hook / disc roller - Mount and demount the toughest tires with minimal risk of rim damage

Convenient functions

Two speeds - Select high speed for bead loosening or easy assemblies. Use low speed for the tough ones
Speed carriage - Quickly shuttle the carriage from front to rear of the rim
On-board storage - Keep standard and optional accessories organized

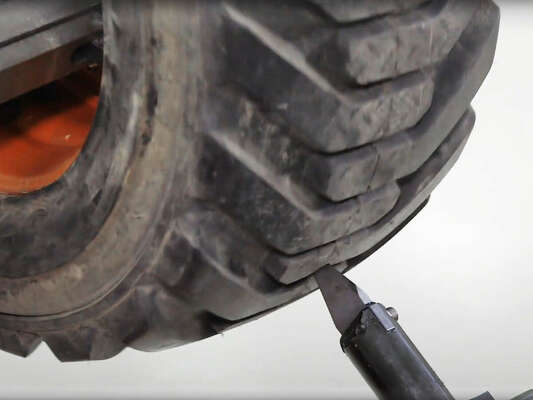

Tire cutter attachment

Quickly and easily cut apart foam filled tires for disposal.

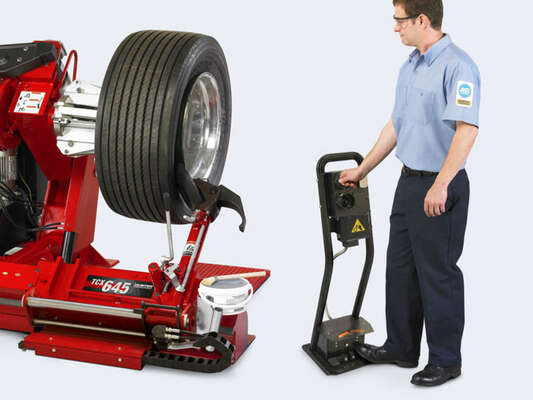

Pedestal control unit

Hand and foot controls actuate multiple operations for delicate bead breaking, mounting and demounting, minimizing the potential for tire or rim damage.

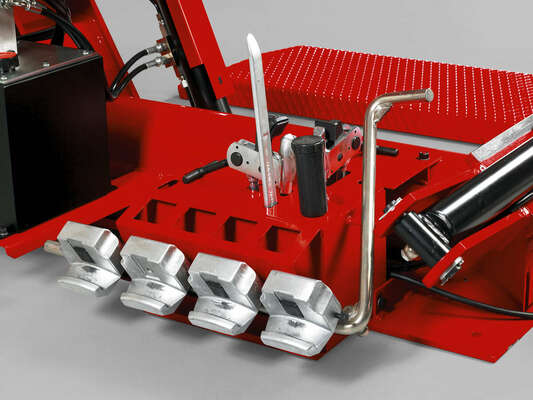

Integrated tool storage

Integrated tool storage is conveniently located on the tire changer base, increasing operating efficiency and helping prevent damage and loss.

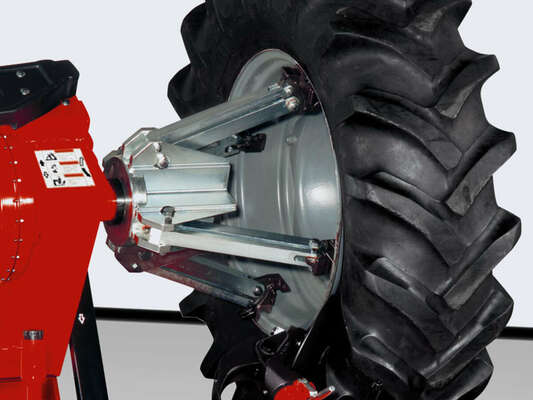

Tulip-style clamp

Tulip system provides universal, self-centering, standard clamping capacity of 14 to 46 inches. Two-speed chuck rotation operates clockwise and counter-clockwise.

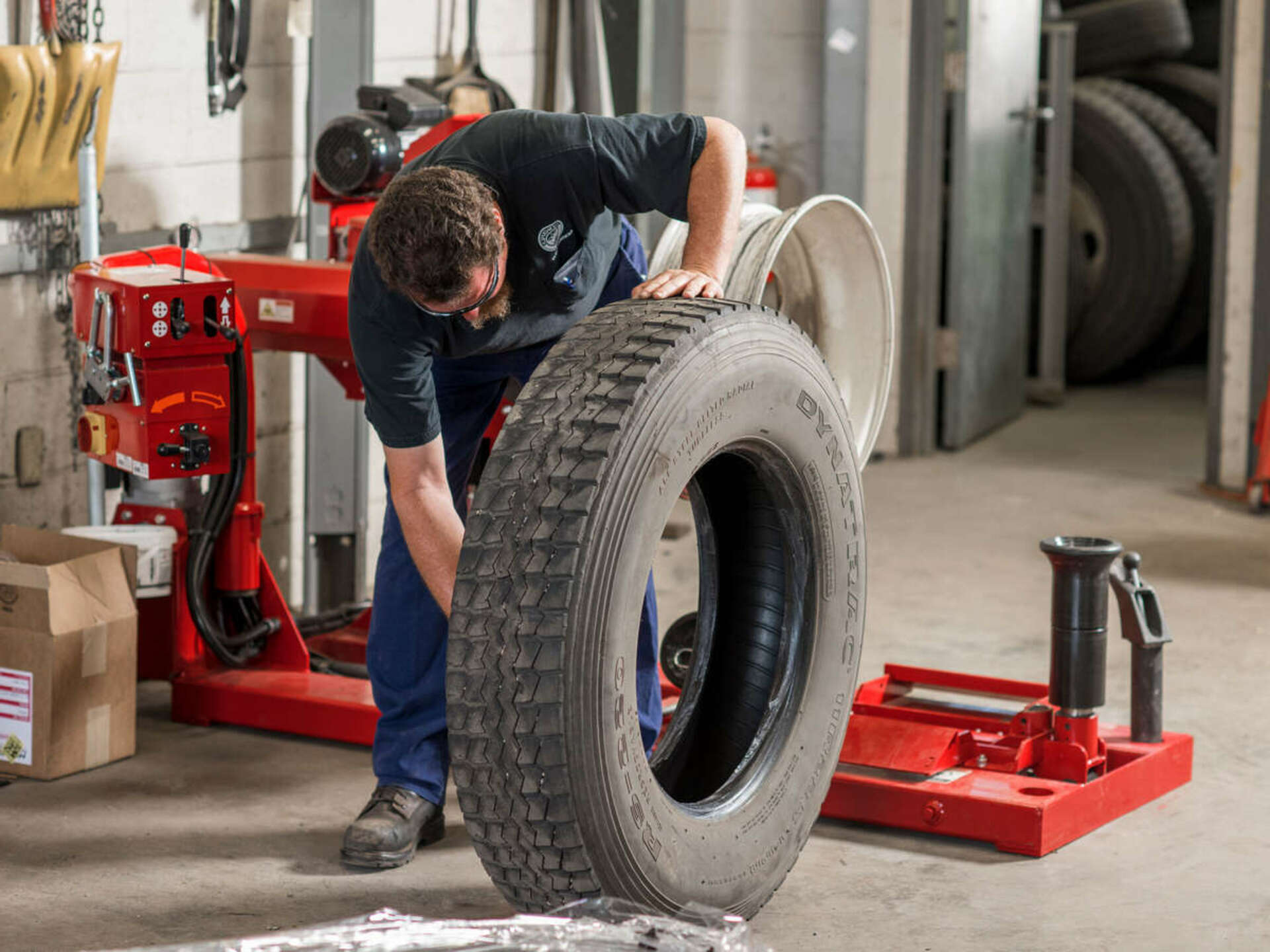

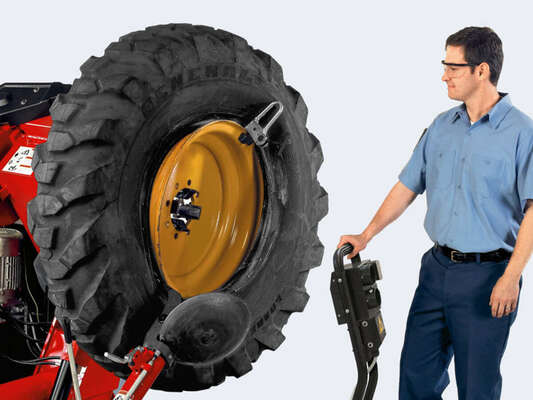

Mount & demount with ease

Tractor, implement and other specialty wheel assemblies are serviced using the same tools and techniques.

Order Hunter tire changer accessories online

Order standard tire changer consumables 24/7 for the industry's leading tire changing machines at Shop Hunter!

Send a message to your local Hunter business consultant to schedule a free on-site demo.

This contact form is intended for legitimate Hunter equipment and service inquiries. All other use is prohibited and will be discarded. See Full Terms of Use

Not in ?

Send a message to your local Hunter business consultant to schedule a free on-site demo.

This contact form is intended for legitimate Hunter equipment and service inquiries. All other use is prohibited and will be discarded. See Full Terms of Use

Not in ?

Match-mounting is easy!

When combined with Hunter's heavy-duty wheel balancers, the heavy-duty tire machines provide match-mounting capability for achieving the smoothest possible ride.
