- 10-34 in. Capability
- Leverless polymer head
- Telescoping chassis sets diameter
- High-volume blast tank
- Dual roller arms
- Automatic indention
- Standard press arm
- Standard wheel lift
Simple operation, superior wheel protection
Tire Changer
Center-Clamp Tire Changers
Simple operation, superior wheel protection
Hunter offers four models of center-clamp tire changers for any need. From the popular three button leverless Auto34 to more basic models, damage free operation is attainable for all budgets.
Features at-a-glance
-
Leverless and traditional options
-
Center-shaft clamping
-
Cam plate tightens under torque
-
Adjustable height mounting
Specifications at-a-glance
-
860 ft-lbs.Torque
-
0-14+ rpmVariable Speed
-
26 & 34 in.Max Rim Diameters
-
19 in.Max Rim Width
Hunter Center-Clamp Tire Changers
/
The Hunter Auto34R Tire Changer
Hunter Engineering’s new Auto34R Tire Changer is designed to quickly and easily service the broadest range of assemblies, from 10 to 34 inches, while also dramatically reducing the opportunity for tire and wheel damage.
The Hunter Auto34R Tire Changer: Detailed operations video
Hunter Engineering’s Auto34R Tire Changer was designed for maximum speed, ease of use, and accuracy and precision. It was also designed to service the broadest range of assemblies, while dramatically reducing the risk of tire and wheel damage.
The Hunter Auto34R Tire Changer: Special clamping procedures
Watch this demonstration about a number of quick and easy clamping procedures for the types of wheels you may not see every day. Topics covered include adjusting the flange plate for plastic-clad wheels, dealing with the large bore of a 19.5 assembly, and several special clamping cases for dually wheels.
TC39 Tire Changer - Hunter Engineering
Easy-to-use center clamp tire changers with premium leverless demounting. The intuitive center-clamp system uses a simple clamping technique with three height positions. Optional wheel lift eases servicing of large assemblies.
TC39 Tire Changer Operation - Hunter Engineering Company
A quick operation video explaining the easy-to-use lever-less center clamp tire changer, with bead press arm to assist in mounting difficult tire and wheel assemblies.
TC37 Tire Changer
Easy-to-use conventional center clamp tire changer with bead press arm to assist in mounting of difficult assemblies.
TC37 Tire Changer Operation
A quick operation video explaining the easy-to-use conventional center clamp tire changers with bead press arm to assist in mounting of difficult assemblies.
The Hunter TC33M Tire Changer: Standard operation
The TC33M Tire Changer was specifically created with mobile service in mind, while its compact yet capable design also makes it perfect for shops with limited space.
Product Family AT A GLANCE
Auto34R
Three button operation
TC39 & TC37
Compact & capable
- 10-26 in. Capability
- Leverless polymer head (TC39)
- Standard polymer head (TC37)
- Dual roller arms
- Manual indention
- Standard press arm
- Optional wheel lift and side shovel
TC33
Conventional Center-Clamping
- 10-26 in. Capability
- Floating 3-point arm
- Standard polymer head
- PowerOut™ bead loosener
- Built-in blast inflation
- Optional plus device
- Optional press arm
- Optional wheel lift
TCX51C
Powerful hybrid design
- 10-30 in. Capability
- Manual swing arm
- Standard polymer head
- Bead press system with locking lower demounting disk
- FastBlast™ inflation system
- Heavyweight, rigid chassis
- PowerOut™ bead breaker shovel
- 220V 2-Speed Power
- Optional wheel lift
Center-Clamp Tire Changer Features
Precise Diameter Control
Electric telescoping chassis is smooth and responsive.
Simple controls
Auto34R features three button operation.
Automatic Indention
Simplifies and speeds bead loosening.
Memory Function
Quickly returns toolhead to preset location
High-volume blast tank
Slim profile and large capacity to seat truck and SUV tires
Small footprint
Improved features save valuable floor space
Did you know?
Bead massage reduces wheel vibrations
Bead massage reduces road force vibration by an average of seven pounds. Some assemblies can see road force reductions well over 20 pounds!
To bead massage you need a dual bead roller center-clamp tire changer. While still clamped, inflate the tire to OEM recommended pressure and refit the core. One at a time, bring the bead roller against the sidewall of the tire at the rim edge and press approximately 1/4 inch into the tire. Rotate two or three revolutions for each bead.
Bead massage takes less than a minute, but can significantly reduce road force, a leading cause of vibration.
MAKE WHEEL SERVICING SAFER AND EASIER
1
2
3
4
5

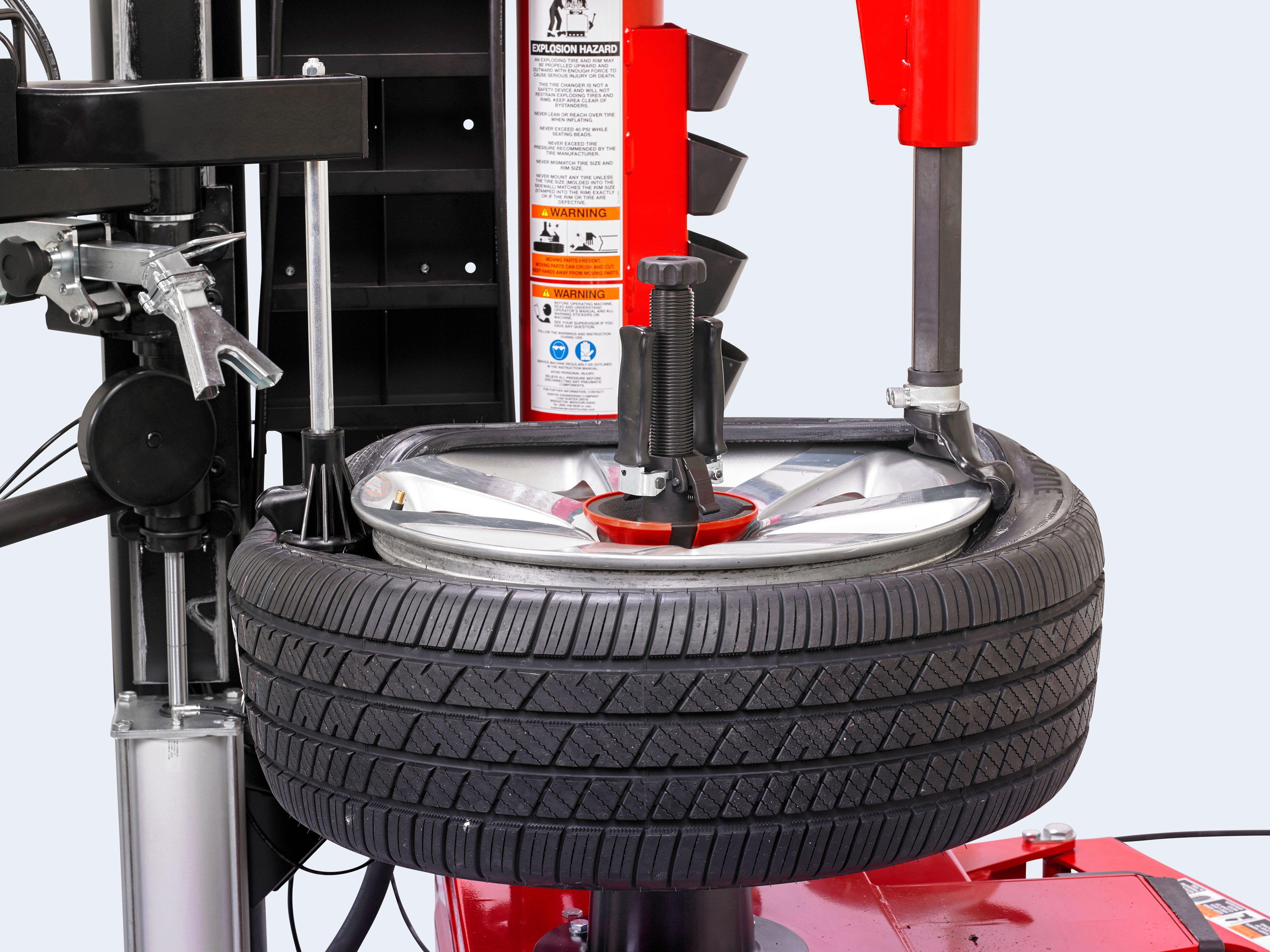

Leverless
Auto34R & TC39
- No scratch polymer head functions as its own lever
- Head is wide and thin for very low mounting stress
- Head does not ride on the wheel face for scratch free operation
Conventional
TC37 & TC33
- Durable polymer head for use with traditional levers.
- Prevents wheel damage and follows the rim edge, no diameter adjusting needed.
- Locks in vertically for clad wheel protection (TC37 only)

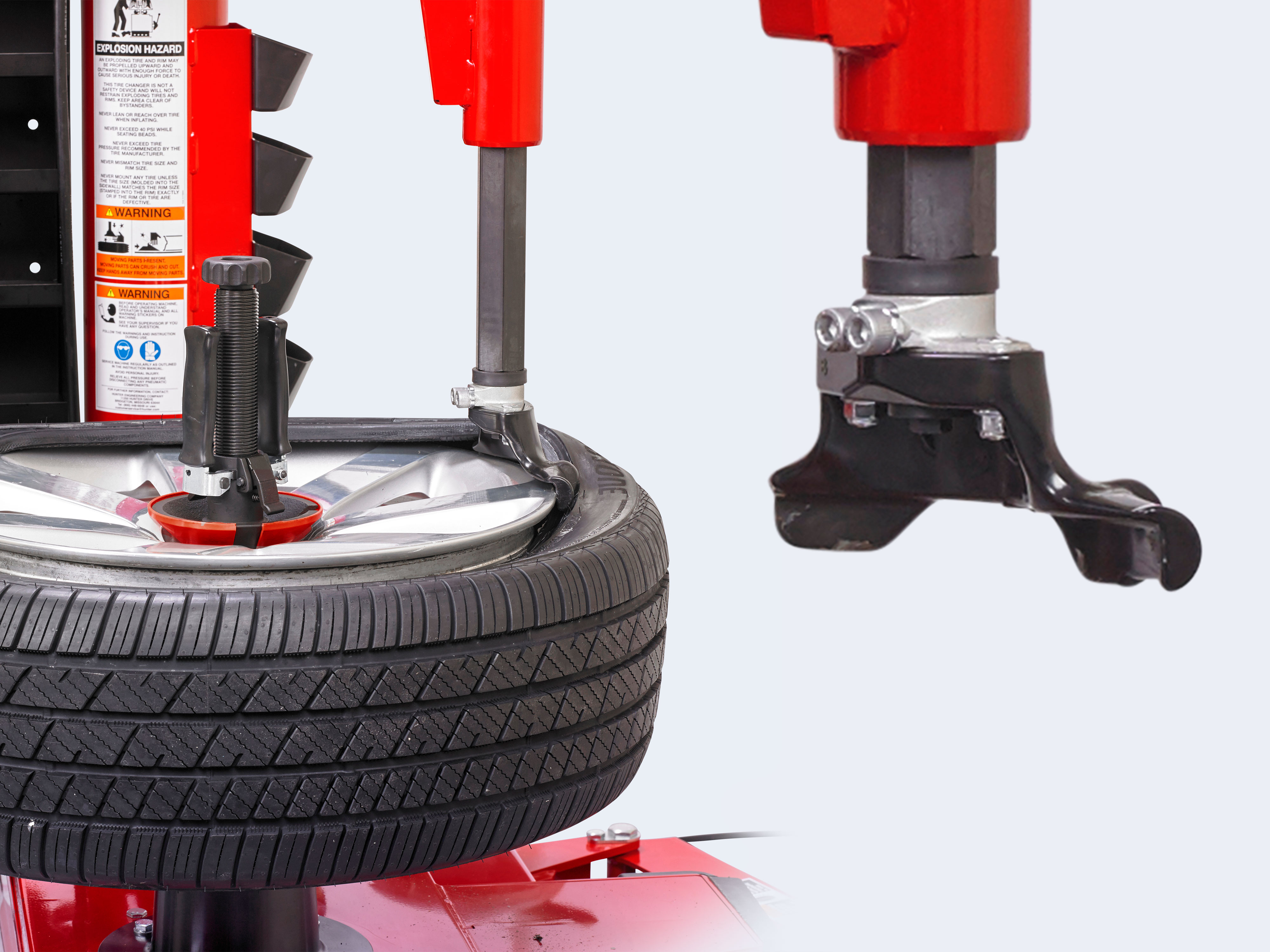

Powerful press arm
Auto34R, TC39 & TC37, optional on TC33
- Assists mounting toughest tires
- Demounting assistance for runflats
Dual bead rollers
Auto34R, TC39, TC37
- Easy bead loosening
- Lower roller demount bottom bead, making heavy tires managable
- Dual rollers essential for match mounting and bead massage
Plus device
TC33
- Assists with a broad range of tires from passenger cars to medium-duty trucks
- Aids in lubricating, lifting and guiding the tire into the drop-center
- Adjustable roller angle
Secure Wheels with no damage
1
2
3
Center-clamp
- Grip from the strongest part of the rim
- No teeth to damage rim
Cam
- Tightens just as much as needed to grip wheel
- Three adjustment heights adapt to all wheel types
Flange (optional)
- Two options for clad wheels and reverse wheels needing extra protection
EASE-OF-USE FEATURES FOR TECHNICIANS
1
2
3
4
Wheel lift (Auto34R)
Standard on Auto34R
Pick and place lift makes lifting and clamping heavy assemblies easy
Wheel lift (TC models)
Optional on TC39, TC37 & TC33
Simplifies lifting heavy assemblies. Safe and away from work area.
PowerOut side shovel
Optional on TC37 & TC39, standard on TC33
Break beads effortlessly to make tire service easier.

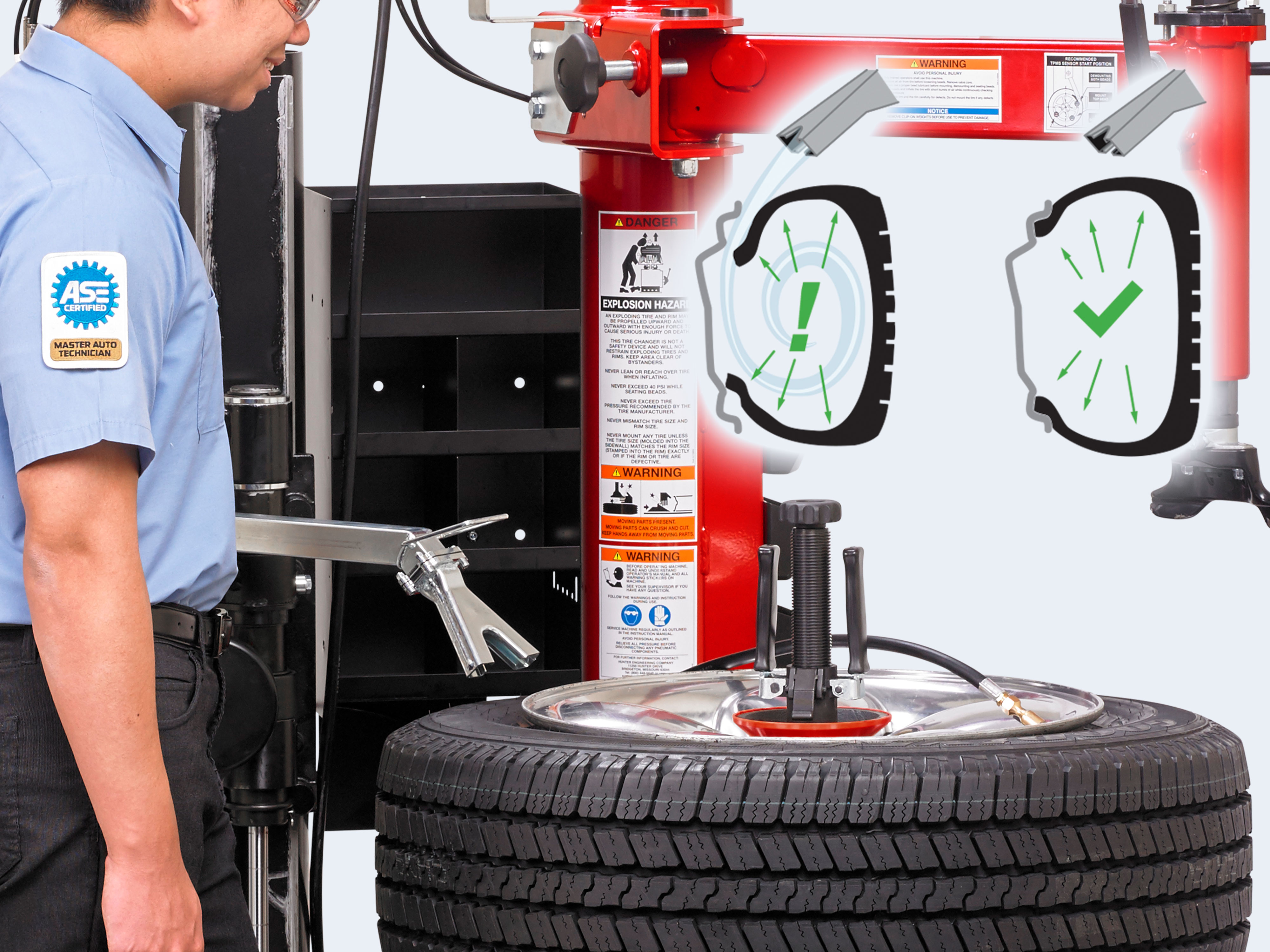

Blast inflation
Handheld air blast nozzle directs burst where needed to seal beads.
1
2
Variable Speed
- 0-14+ rpm forward speed is infinitely variable
- Slow speed for reverse
Powerful Drive
860+ ft-lbs of torque won't stall on tough assemblies
Order Hunter tire changer accessories online
Order standard tire changer consumables 24/7 for the industry's leading tire changing machines at Shop Hunter!
Give your technicians a break
Consistent service times, fewer technician decisions and autonomous WalkAway™ mode makes tire service on the Hunter Revolution™ simpler than ever.
Equip your shop with match-mounting capabilties
Eliminate wheel vibrations by pairing the tire machine with a Road Force® Elite wheel balancer.
