Spring-loaded arms secured by thumb switch grip the tire. Off-center clamping has no effect on accuracy.
Alignment System

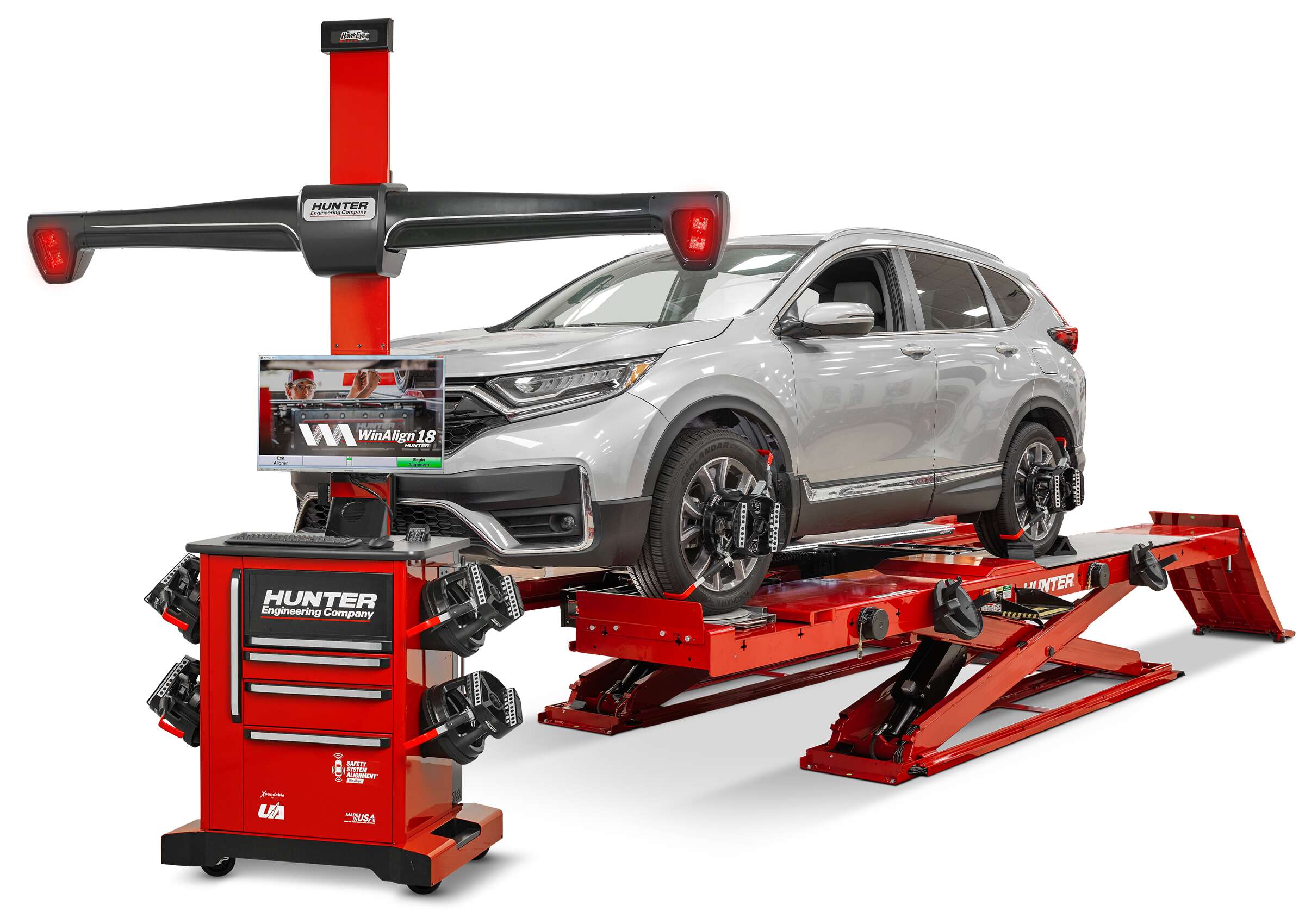

Hunter HawkEye Elite®
70-second alignment measurements with pinpoint accuracy makes the HawkEye Elite® the most powerful wheel alignment machine on the market today.
Hunter HawkEye Elite®
/
HawkEye Elite® at-a-glance
Capture alignment measurements in 70 seconds
WinAlign® software is unmatched in the industry
Simplify positioning of market-leading ADAS static calibration fixtures
Easy-clamping, no metal-to-metal contact QuickGrip® adaptors
Configurations built for any shop space
Fully Integrated Alignment rack integration streamlines processes
HunterNet® connectivity to see and manage your performance
Get alignment results in 70 seconds
Fastest procedure
Only with a HawkEye Elite® can you perform a 70 second alignment check.
Minimal setup effort
One trip around the vehicle means faster alignments.
Immediate, accurate measurements
Easy-to-understand graphic representation of camber, toe and caster.
Define the standard with Hawkeye Elite® + WinAlign®
With 70,000 systems in use worldwide and a database supporting more than 285 million vehicles, HawkEye Elite® and WinAlign® have long defined the performance standard for alignment equipment past, present and future.
70 Second Alignment Drill
Watch how a fully-comprehensive wheel alignment check can be done in just over a minute.
Why Do Cars Need Wheel Alignment?
When your car is out of alignment, you may experience irregular tire wear, handling problems or a crooked steering wheel. A wheel alignment adjustment can correct these problems.
Fully Integrated Alignment Equipment from Hunter Engineering
Hunter's fully integrated alignment system reduces the technician's trips around the vehicle, and greatly reduces trips to the alignment console.
Calculate your payoff and profits
Speed setup time with Hunter's patented QuickGrip® adaptors and 3D targets
Fast installation
Spring-loaded clamping arms install easily — off-center placement has no affect on accuracy.
Avoid rim damage
Clamps hook tires and protective ring provides no metal-to-metal contact.
Efficient design
Lightweight, durable and low-profile form make QuickGrip® adaptors a technician-favorite.
Easy to clamp
No metal-to-metal contact
Clamping arms grip the tire, not the rim. A protective rubber ring sits between the target and the rim.
Lightweight and durable
Weighs only 6 lbs. — nearly 50% lighter than previous designs
Shop-tough polymer structure withstands drops
No electronics, cables or calibration
Only occasional cleaning required
Slim profile
Approximately 9-in. profile
Easy to work around
Great for narrow bays
Quick change arms
Accommodate assemblies up to 37 in.
One arm fits approximately 90% of applications
Off-center application
WinAlign® software calculates actual wheel position regardless of target centering
Align accurately the first time using Hunter's award-winning WinAlign® software
Extensive Database
WinAlign® is powered by the most extensive vehicle information use, 285+ million vehicles supported.
Vehicle-specific procedures
Guide your technicians with step-by-step instructions specific to the vehicle being serviced.
Over 30 years of development
Constant improvements and support come from the largest R&D department in the undercar industry.
See all of the features
ExpressAlign®
Perform every alignment with a streamlined procedure. Analyze each job and present the optimal action sequence with the minimum steps required.
WinToe®
Ensure a straight steering wheel every time without repeated adjustments or using a steering wheel holder.
Tools & Kits Database
Save trips back and forth to the tool box by seeing all of the tools and aftermarket correction kits needed for each alignment.
Virtual View®
See camber, caster and toe angles in real-time 3-D graphics — used by experts and novices alike.
Control Arm Movement Monitor®
Cut adjustment times in half for front-shim, dualcam or dual-slot vehicles by using step-by-step graphics that let you get it right on the first try. Over 60 million vehicles benefit.
Wheel-Off Adjustment
Speed up the alignment process by making adjustments with the wheel removed.
Accessories required
Suspension Body Dimension Audit
Quickly screen vehicles to determine alignability and collision repair needs.
Patented
Shim-Select II®
Eliminate confusing shim charts and tables. Shim-Select II® quickly calculates and displays the template you need for proper shim installation.
Patented
Symmetry Angle Measurements
Instantly access symmetry angles and setback for your body shop customers.
Automatic Bushing Calculator®
Calculate the proper bushing size and position adjustment without wasting time with a zero bushing. Over 10 million light trucks and vans benefit.
Patented
Live Ride Height Adjustment
Measure and adjust ride height in real-time. Over 20 million vehicles require ride height measurement to complete alignment service.
Patented
Adjustment Illustrations
Photo adjustment illustrations provide real-life photos from the actual vehicle model for easy reference.
Video Library
400+ videos and animations cover all aspects of wheel alignment today.
Patented

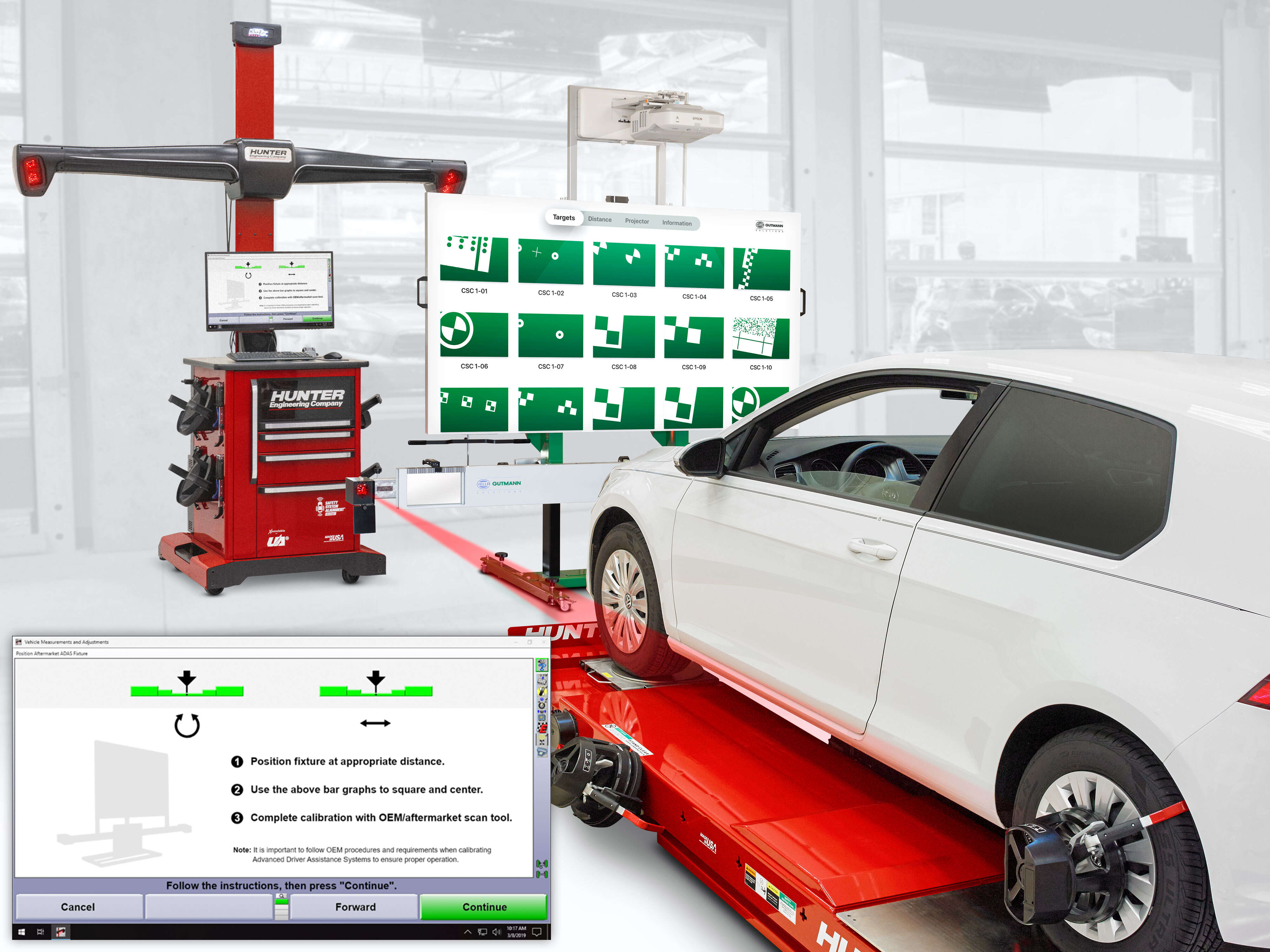

Simplify positioning of market leading fixtures by using Hunter cameras
ADAS alignment setup is fast, efficient and accurate
- 50% faster fixture positioning
- Eliminates potential for wheel damage
- Accurately position fixture to vehicle thrustline using cameras
Shown with Hella Gutmann ADAS calibration fixture.

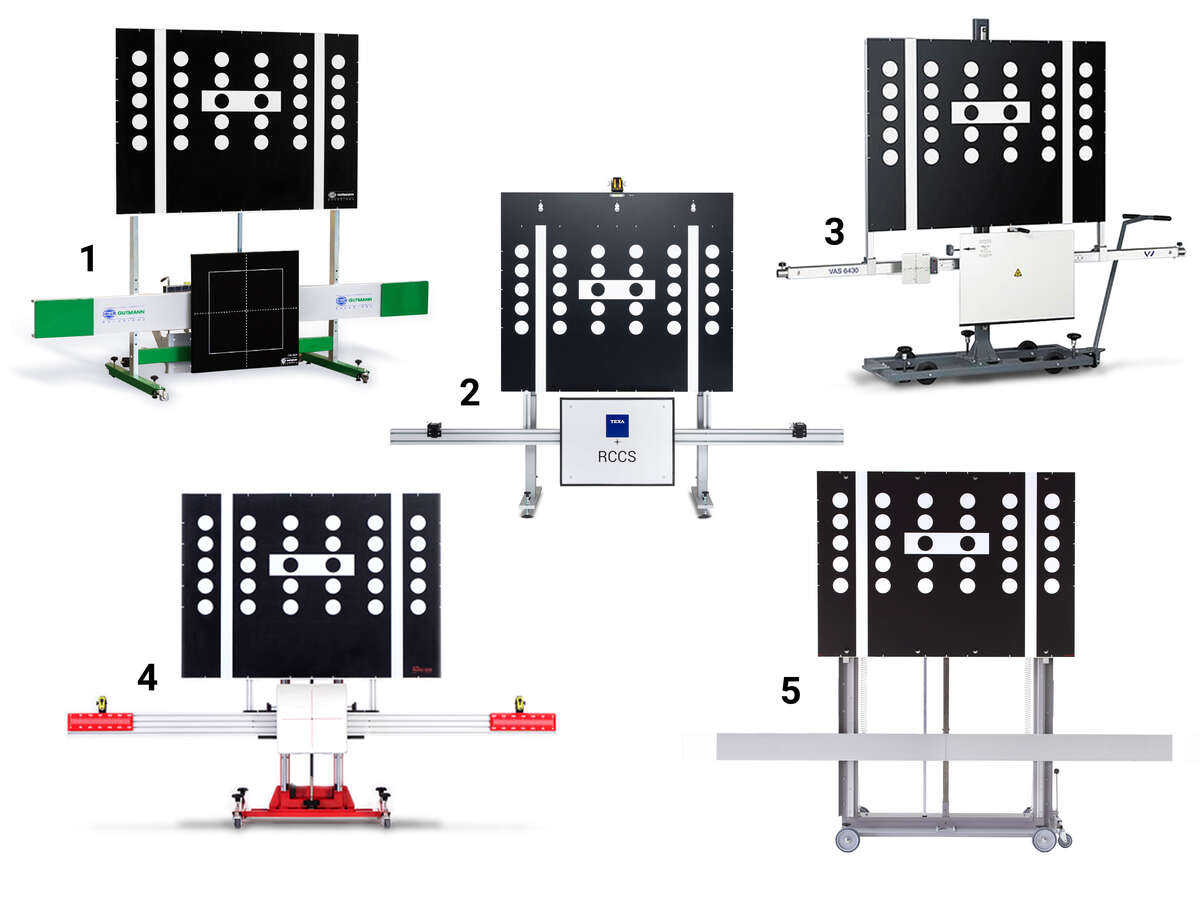

Choose the ADAS Fixture that best covers your workshop
- Hella Gutmann
- Texa
- OEM
- Autel
- WOW!
Fixtures require Hunter camera kit and adaptors.
Alignment machines built to fit your workspace
Options for every shop
Alignment console and sensor combinations to suit every need.
Sensors fit any space
Regardless of bay or space constraints, Hunter has a sensor package designed to fit.
Productive console designs
Award-winning WinAlign® software delivers dozens of productivity tools in a console to fit your needs.
1
2
3
4
Mobility and space-saving
Cabinet-mounted configuration is mobile to service multiple alignment bays and provides a manual lift camera adjustment for a wide range of lift heights.
Full-range height
Motorized and manual movable-camera configurations provide a full range of vertical travel for additional lift height.
Open-floor area
Wall- and ceiling-mount configurations are perfect when space is at a premium.
Compact fit
Fixed column camera configurations fit most service bay applications.
Large console
Maximum storage space and convenient mobility
Compact console
Mobile console unit for tighter spaces
Wall-mounted console
The most compact configuration — mount to wall or sensor column
Streamline the process with Fully Integrated Alignment (FIA)
60% Faster
Complete alignments faster with Hunter's synchronized wheel alignment machine and alignment rack.
Automatic Functions
Turnplates and slip plates auto-lock, and inflation station automatically inflates tires.
Eliminate Errors
Automates technician tasks that can be easily forgotten or skipped.
Precision Cameras
Alignment
- Four high-resolution cameras
- Measurements are taken automatically once the fourth target is installed
WinAlign® Console
Patented
- Guides the technician through the alignment process
- Centralized control of entire system
- Communicate directly with lift to set tire pressure and automatically operate turnplates and slipplates
Auto-locking turnplates & slipplates
Exclusive
Auto-lock saves time and trips around the vehicle
Inflation Station
Patented
- Automatically inflates all four tires simultaneously
- Automatically records starting and final pressures
- Hose recoils to keep work area clear
PowerSlide® System
Patended
- Slipplates and turnplates automatically lock and unlock at appropriate times
- No more struggles with turnplate & slipplate pins
1
Minute
4
Minutes
10
Minutes
70-second wheel alignment results
1 trip around the vehicle
0 console interaction
72 steps total
Camera sensors with traditional rack technology
3 trips around the vehicle
6 console interactions
183 steps total
Conventional wheel-mounted sensors with traditional rack technology
4 trips around the vehicle
6 console interactions
246 steps total

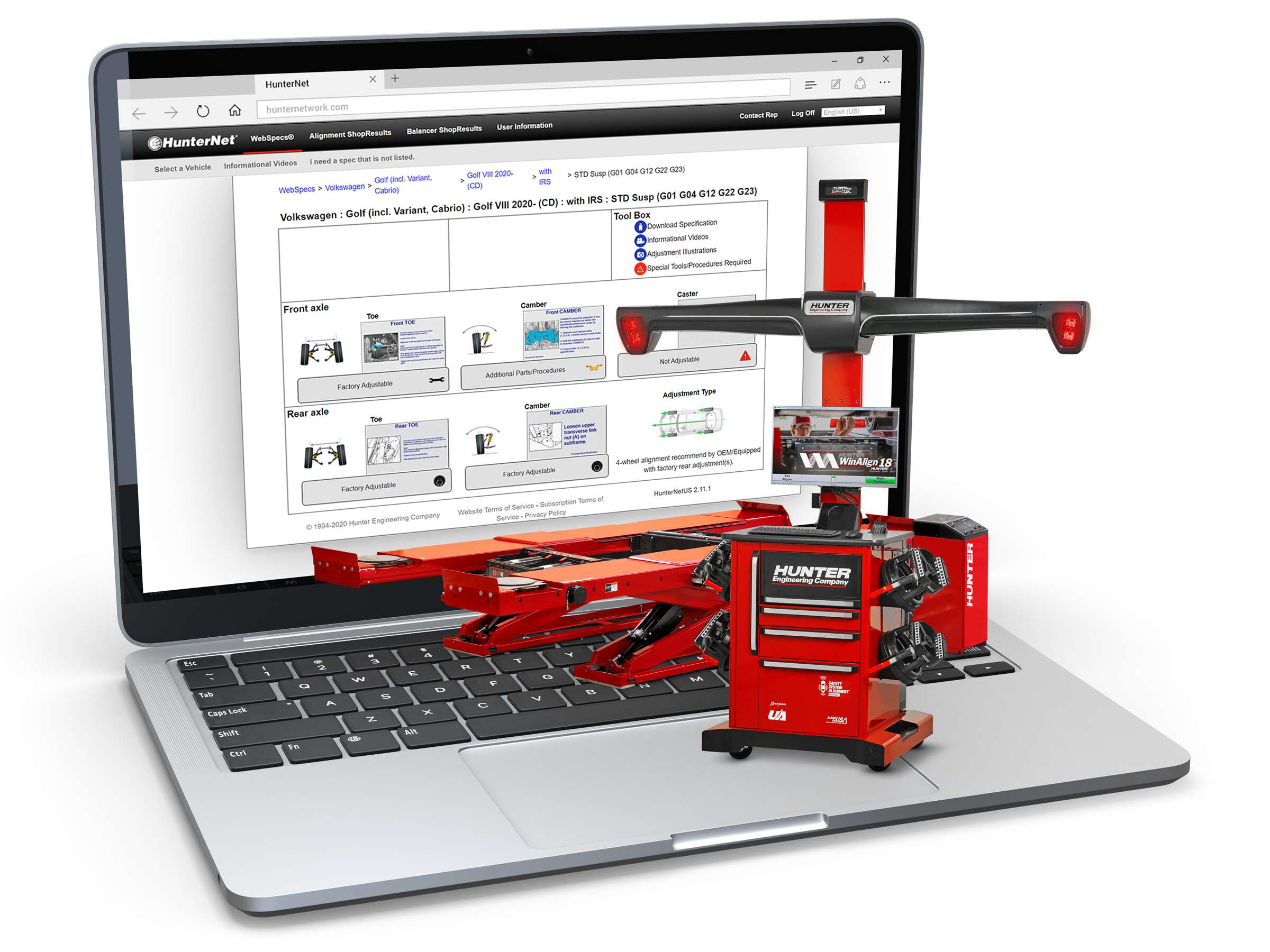

Access vehicle-specific undercar information in the alignment bay
- Explore a vast collection of vehicle-specific undercar information
- Eliminate time-consuming manual searches with our online database of advanced sensor reset requirements
- See how-to's and instructions featuring illustrations, images and videos
Improve communication all around
Communicate results & educate your customers on misalignment, while accessing vehicle-specific undercar information in the alignment bay with WebSpecs®.
See communication features
Communicate results and maintain customer data
- Save & recall vehicle results
- Allow customers to view results online
- Provide results to other business to validate warranties or insurance claims
Eliminate confusing technical conversations
- Show easy-to-understand videos, illustrations and images
- Help your customer make informed decisions
- Solidify trust with your customers
Connect your equipment to your business
- Maximize your shop's performance
- Simplify customer discussions with selling tools
- View extensive undercar information
1
2
3
Monitor Trends
Get a high-level overview of your alignment machine usage trends.
Receive daily reports
Setup to receive daily Push Reports to keep your goals and performance in check.
Recall Past Results
View previously serviced vehicles and recall printouts.
Gallery
Because of continuing technological advances, features and configurations shown in customer photos may vary.
Documents
-
Brochures
-
Specifications
-
Accessories
Hunter's 3-Year Warranty
Hunter Engineering Company warrants new equipment replacement parts for three years and labor for six months.
Proudly designed & built in the USA
From raw steel to finished product. When you choose Hunter, you're investing in more than 1,000 American workers.
