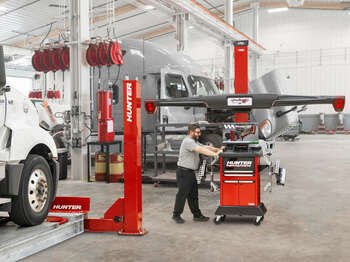

Move the aligner for use in any bay, on the floor or a lift, with adjustable camera beam.
Alignment System

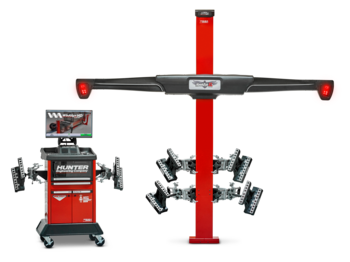

Hunter HawkEye® XL

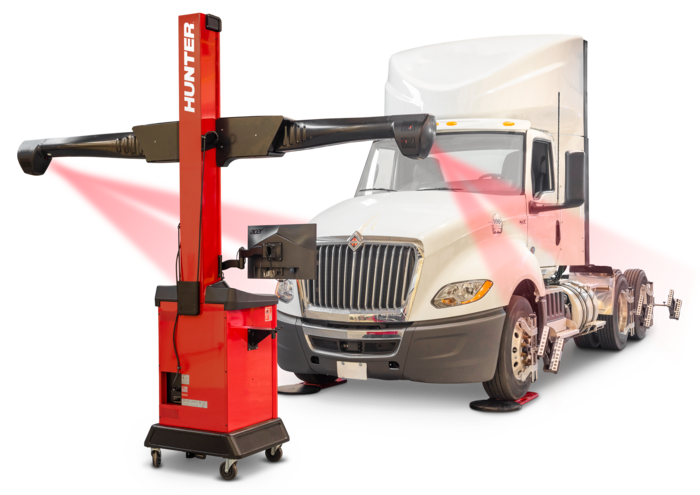

Fast and highly-capable alignment machine featuring Hunter's patented camera technology designed for heavy-duty semi truck and bus, medium-duty utility and fleet, and light-duty passenger vehicles.
HawkEye® XL
/
HawkEye® XL features
Three-dimensional XL targets are durable, low maintenance, and non-electronic
High-definition cameras are accurate, precise, and offer extra-long-range sight
Capture all measurements in a single rolling compensation
See live alignment readings from three axles at once

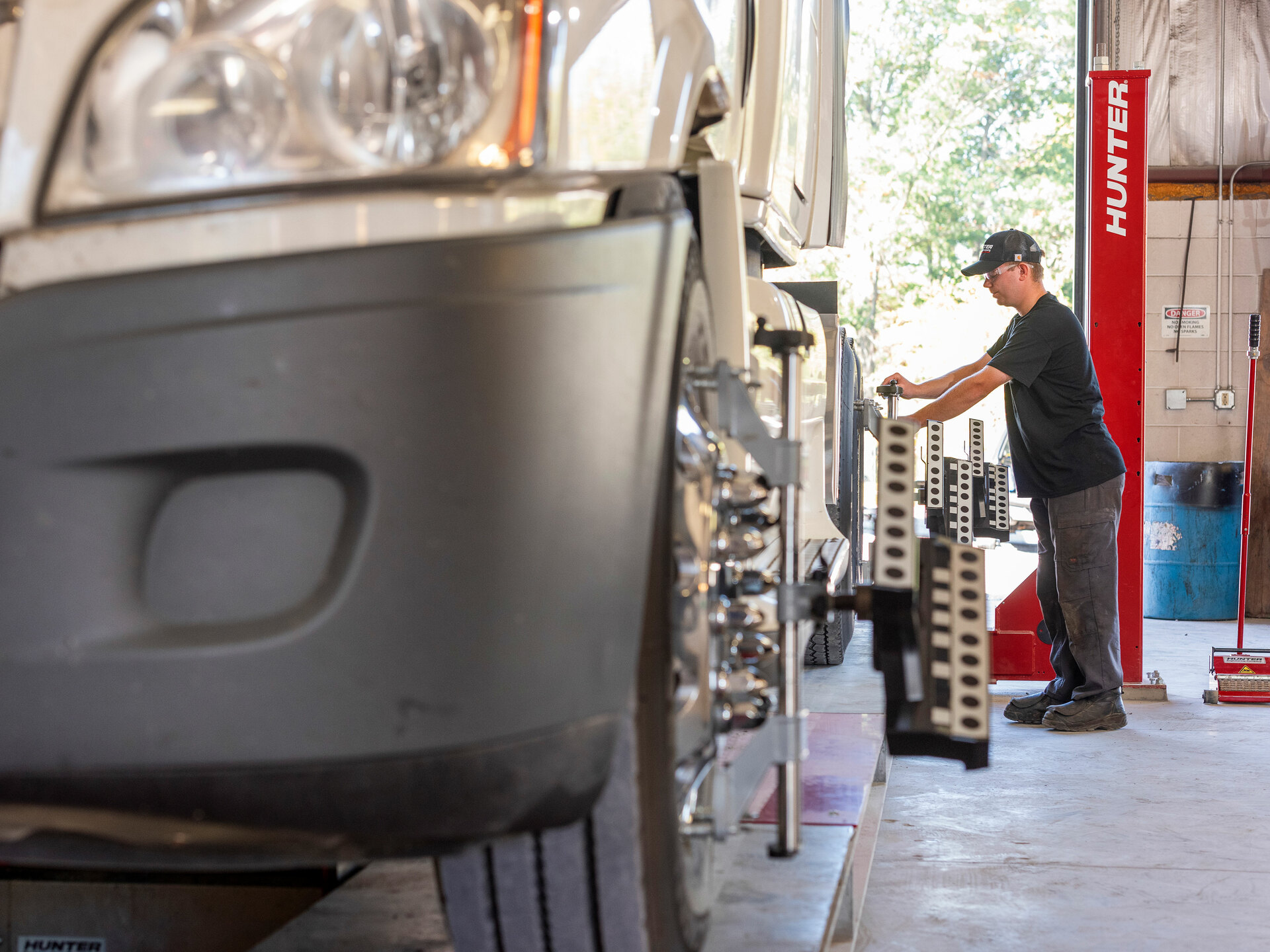

Perform wheel alignments on any surface, in any bay
Fully Integrated Alignment rack integration streamlines processes
HunterNet® 2 connectivity to see and manage your performance
Hunter's industry-standard vision technology built for commercial vehicles

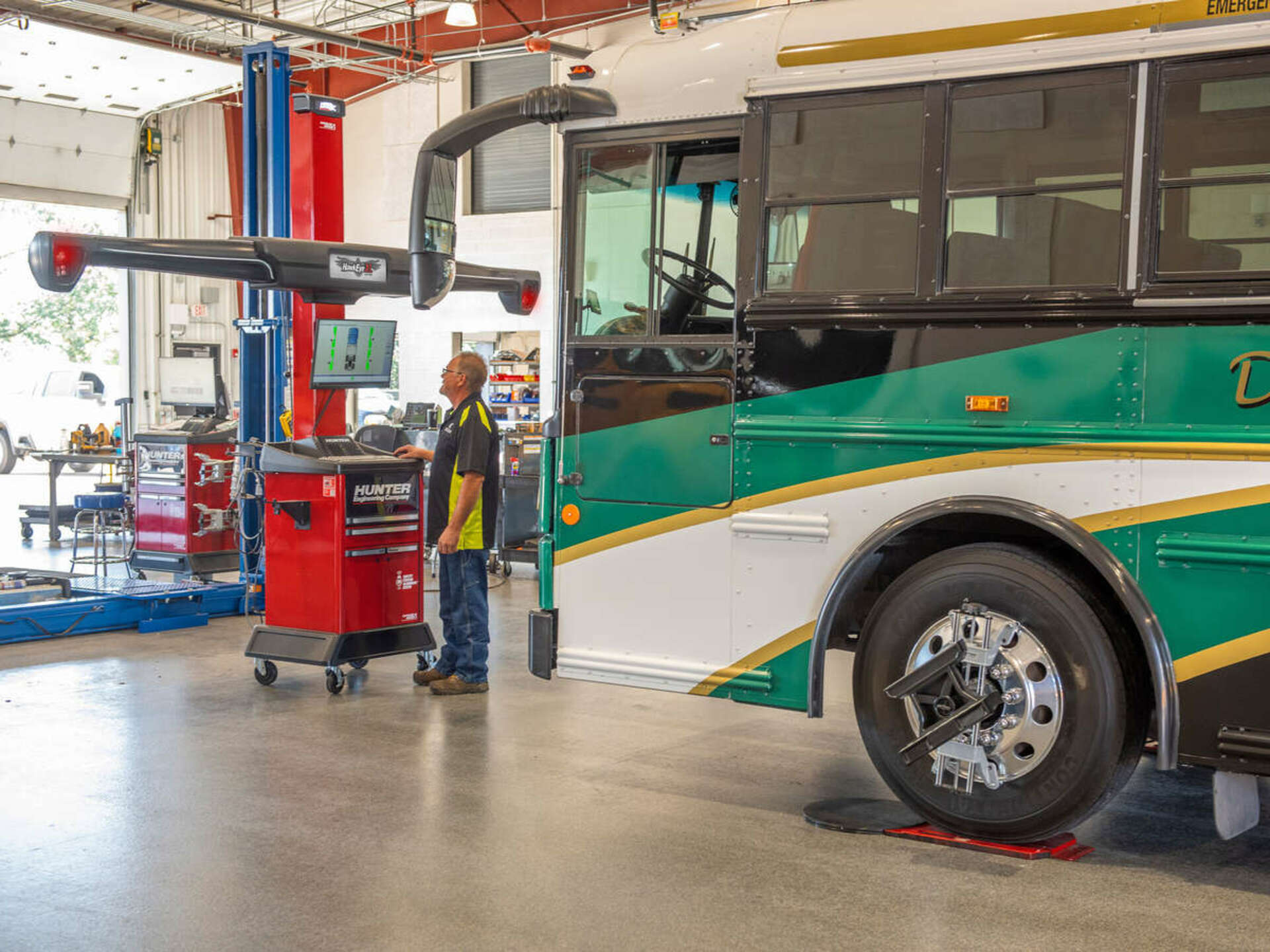

Alignments in any bay
Multi-Axle Readings
See live alignment readings from three axles at one time with guided procedures.

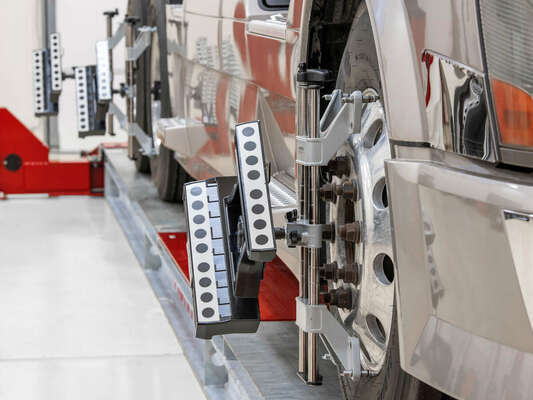

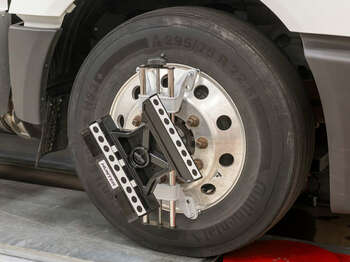

XL Targets
Hunter's patented 3D targets offer extreme durability, low maintenance, and no electronics at the wheel.

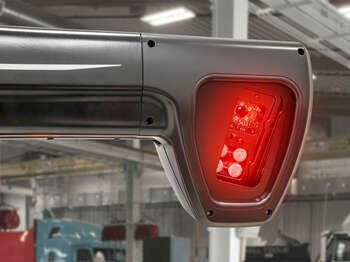

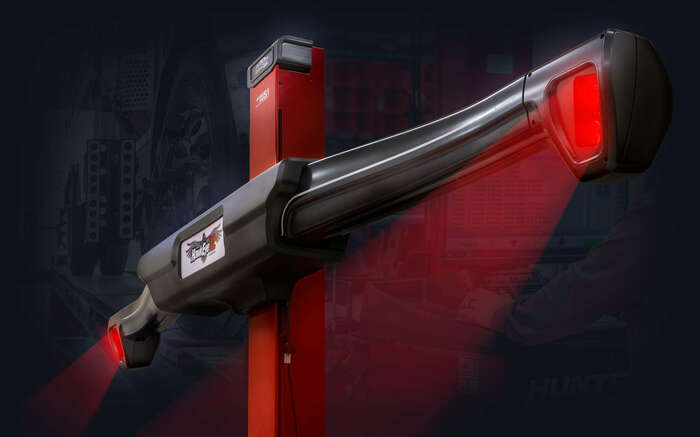

High-definition cameras
Extra-long range, high-resolution cameras precisely monitor each wheel in a 3D space to provide pinpoint-accurate measurements.
Trailer alignment
Long-range cameras easily see targets on 53-foot trailers. Align using optional kingpin adaptor.

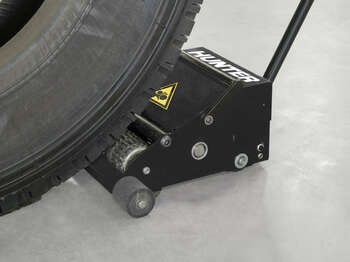

Truck Pusher
Optional
Effortlessly move vehicle for rolling comp with rechargeable battery-powered pusher.
Ob groß oder klein, vermessen Sie sie alle mit HawkEye
Sehen Sie sich das HawkEye-XL-Hype-Video an.
HawkEye® XL helps Prime Inc. maintain its “nonstop” pace
The new HawkEye® XL commercial aligner was designed for shops like Prime Inc. in mind.
HawkEye XL® Alignment System: Beginner's Operation Guide
Field training manager Miles Dierker describes the proper techniques for the smoothest and most efficient operation of the Hawkeye XL®, powered by WinAlign® software.
Fast and highly-capable HawkEye® XL heavy-duty alignment machine
The all-new HawkEye® XL alignment system from Hunter Engineering® features three-dimensional XL targets, high-definition cameras, and three-axle live alignment readings from a single rolling compensation on any surface or any bay.
Entworfen und hergestellt in den USA
Seit 75 Jahren entwirft und baut die Hunter Engineering Company® in den USA Servicegeräte für die Automobilindustrie.

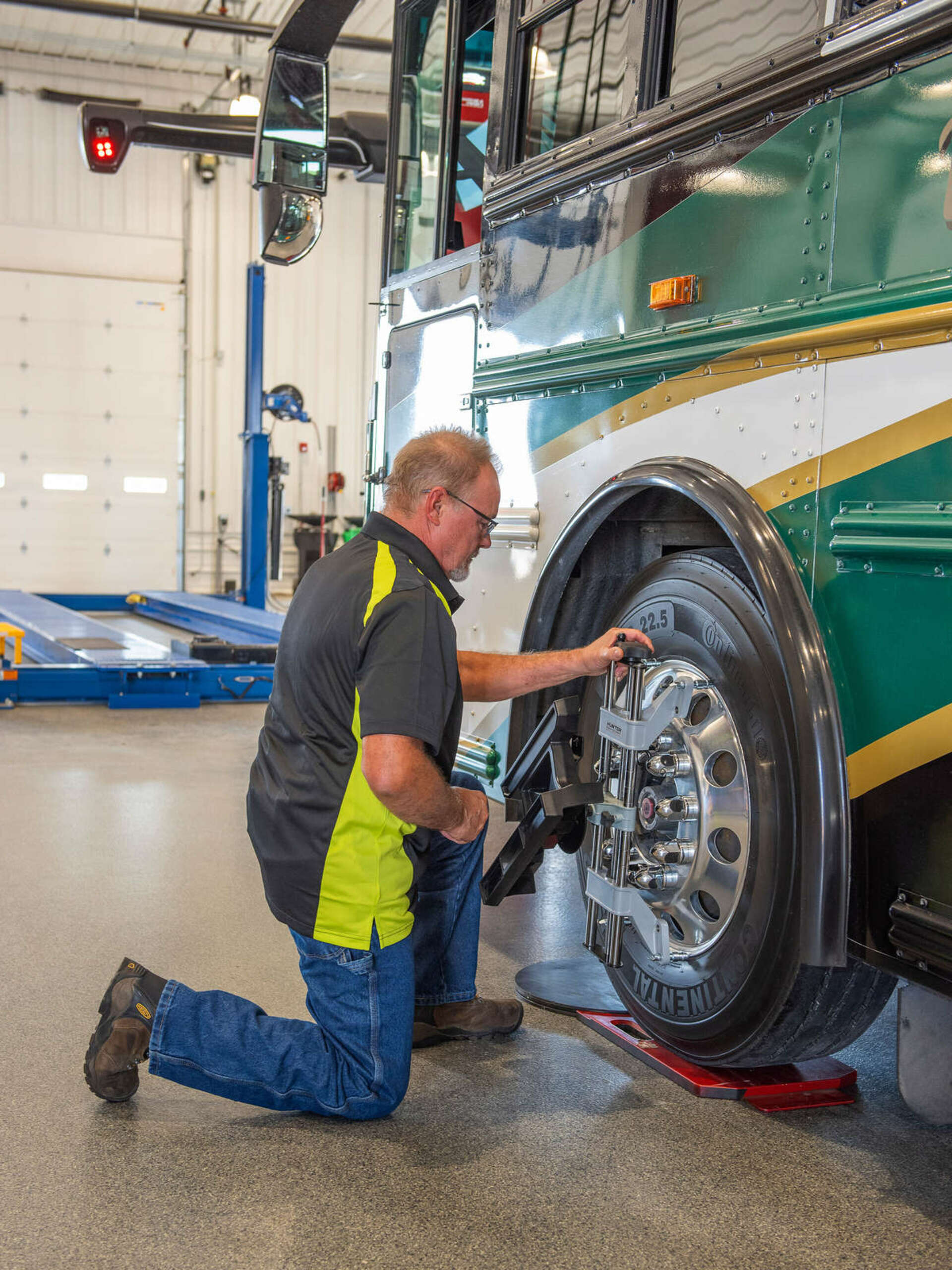

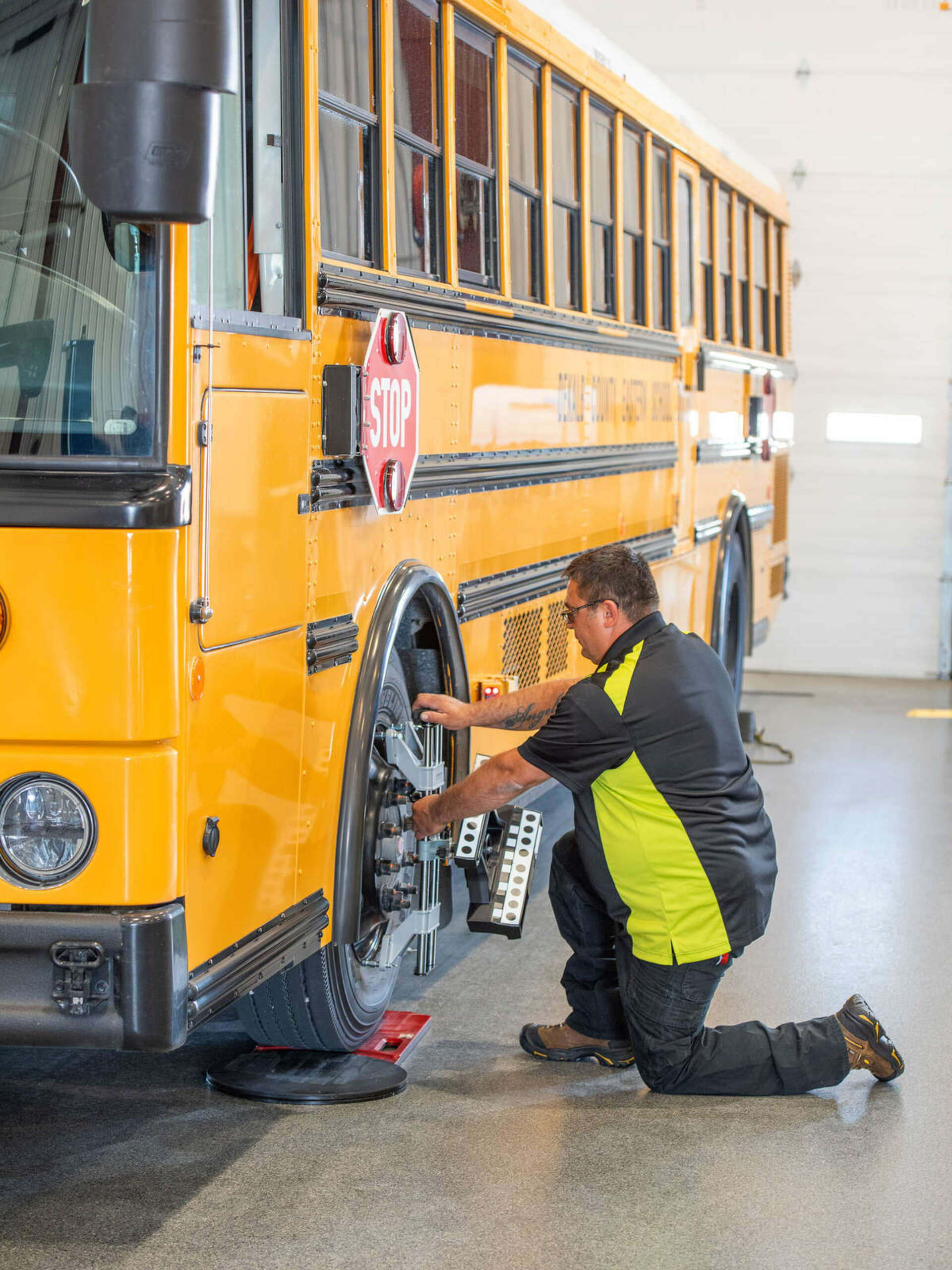

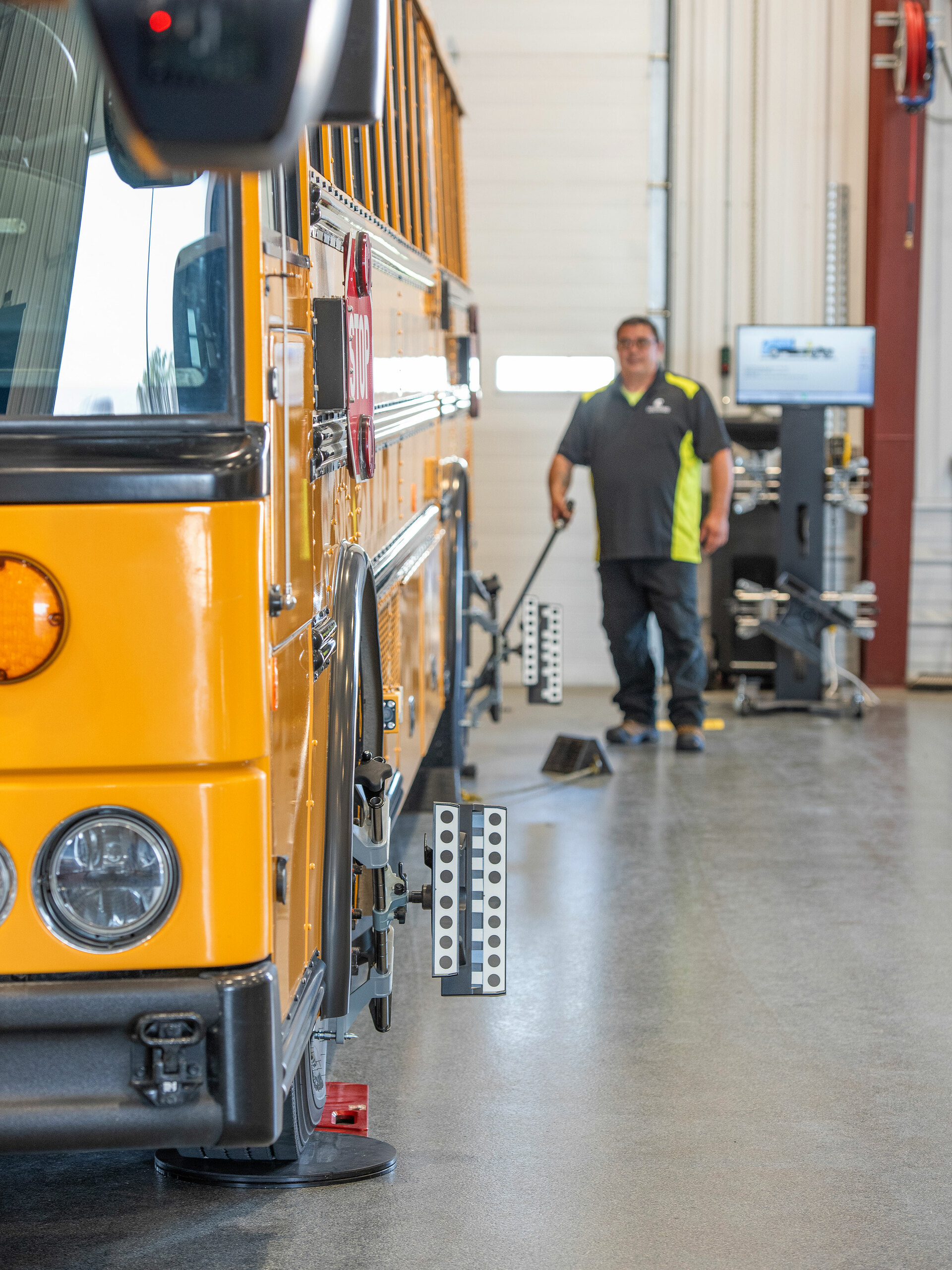

Heavy-duty big rigs
Align multi-axle class 8 tractors, trucks and buses.
Trailer
Align trailers up to 53 feet using the optional kingpin adaptor or new back-in procedure.
Medium-Duty
Align box trucks, utility trucks, fleet vehicles, last-mile deliver vans, and more.

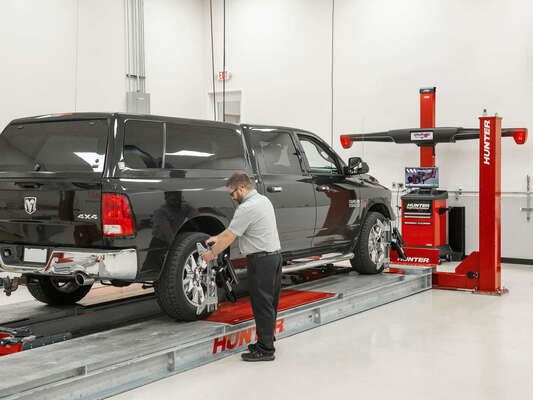

Light-Duty
Align passenger cars and trucks.
Ready for whatever comes through your door
Align a wide range of commercial vehicles from semi-truck tractors, trailers, big rigs, buses, box trucks, and even passenger vehicles.
XL targets for XL alignments
Always ready
No batteries, cables or wireless signal connection are required.

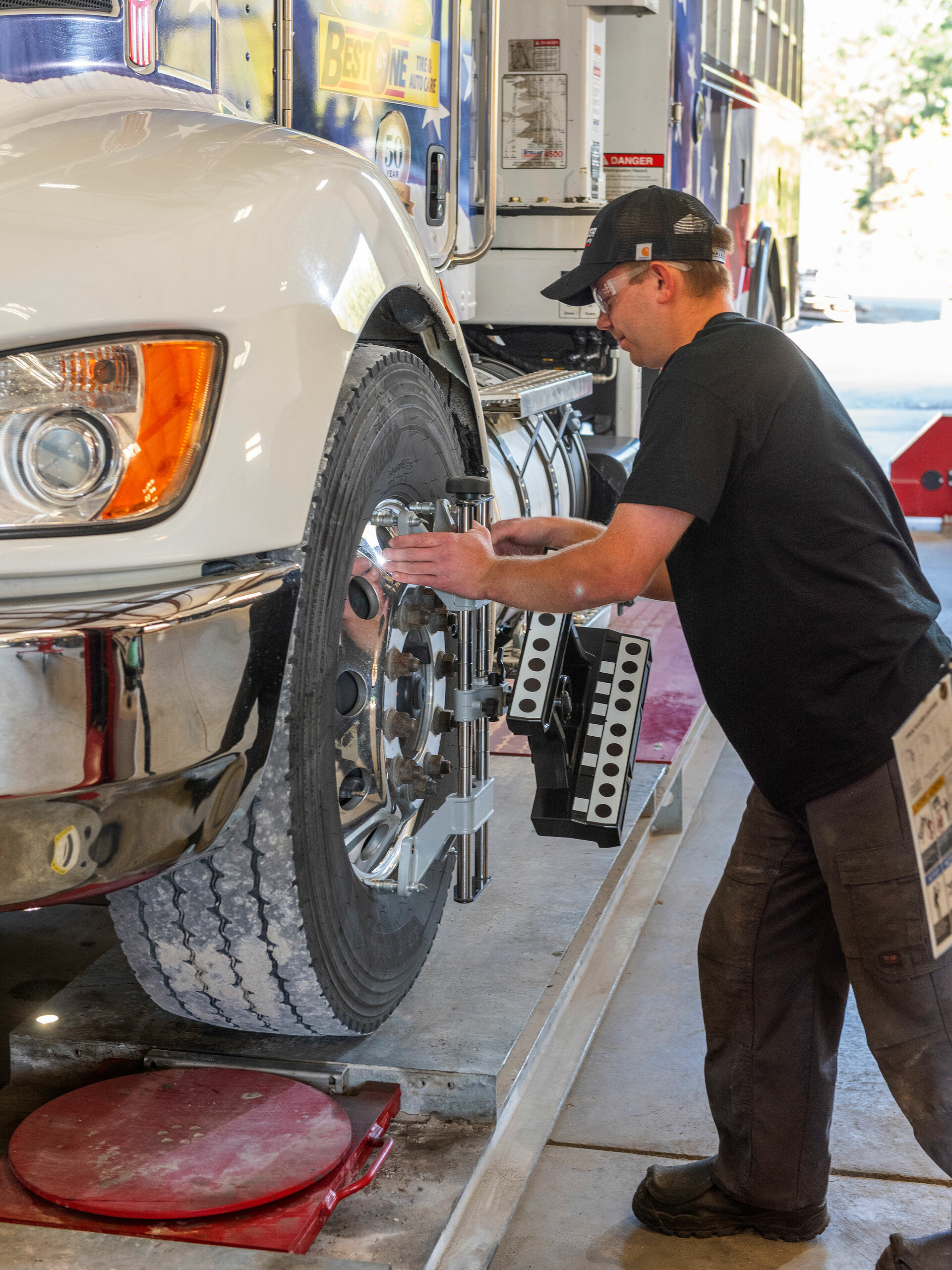

Wheel adaptor options
Highly-versatile self-centering wheel adaptors come standard with optional magnetic adaptors to simplify attachment.
Low cost of ownership
Extremely durable and low-maintenance design make Hunter targets a shop favorite..
Multi-axle readings
See live alignment readings from three axles at one time with guided procedures.

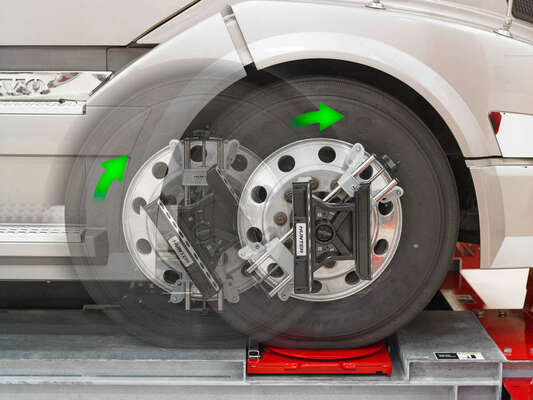

Quick rolling compensation
Compensate all wheels and capture initial measurements in one motion.

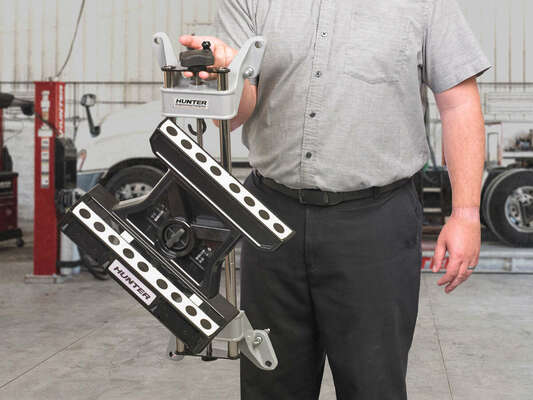

Built shop-tough
Durable, lightweight targets attach to each wheel without any electronics.

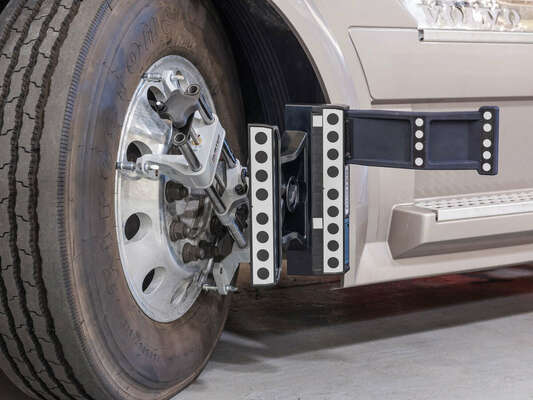

Wide-angle extensions
Extends targets outward for increased visibility when measuring caster and maximum steering angles. Same robust material as XL targets, and no characterization needed.
Optional

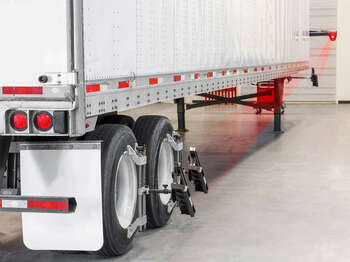

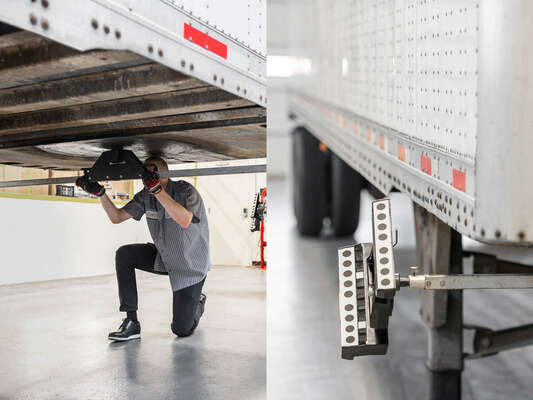

Trailer alignment
Align using optional kingpin adaptor. Long-range cameras easily see targets on 53 foot trailers or back in configuration.
Off-center application
WinAlign® software calculates actual wheel position regardless of target centering.
Calculate your payoff and profits

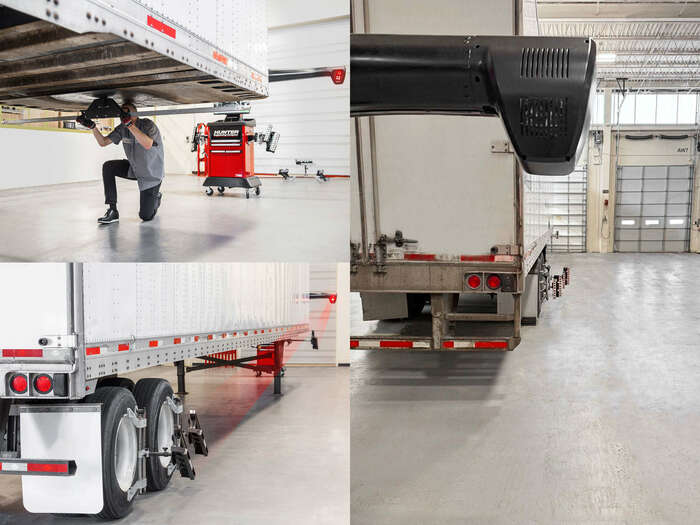

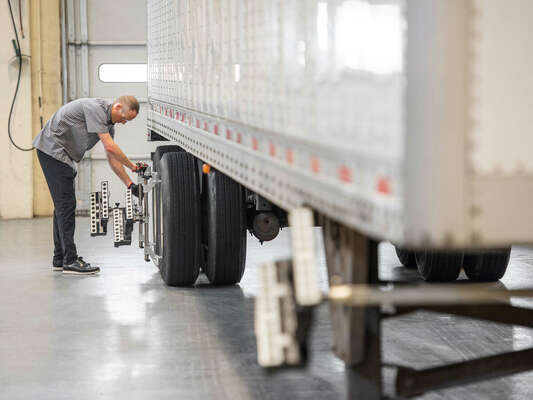

Trailers carry the load. Give them the alignment they deserve.
Long-range cameras easily see targets on 53 foot trailers.
Align using optional kingpin adaptor.
NEW back-in trailer alignment ability via latest Hunter software.
Save yourself the trip

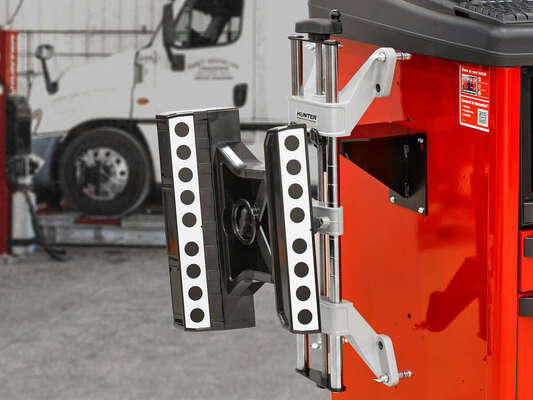

Convenient storage available to hang targets and store truck pusher for quick access.
Secondary console provides better visibility and control. Mounts to cart shown.
All-day power from your own connected battery pack lets you go fully cordless.
Updated

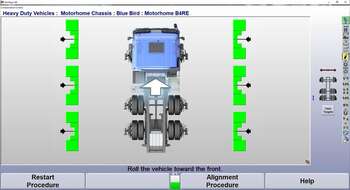

Complete axle configurations

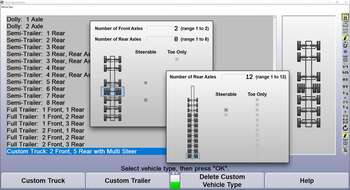

Select from 50 unique procedures or build your own truck and trailer axle configurations to perform the fastest, easiest, step-by-step alignment process on virtually any vehicle.
New

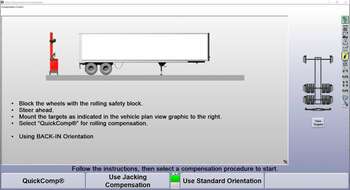

Back-in trailer procedure
Align backed-in trailers with or without the truck connected.

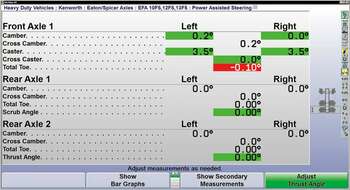

Three Axles Live
See three axles live with all measurements at once. Reduce setup time through minimal target movement.
ExpressAlign®
Perform every alignment with a streamlined procedure. ExpressAlign® analyzes each job and presents the optimal action sequence with the minimum steps required.

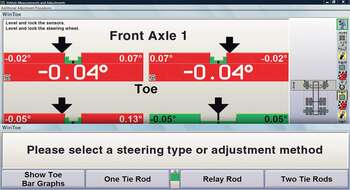

WinToe®
Ensure a straight steering wheel every time without repeated adjustments or using a steering wheel holder. Works with all vehicles on the road today, from cars to Freightliners.

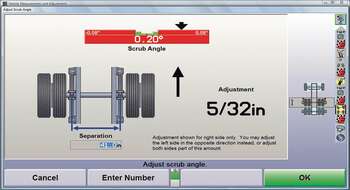

Rear Axle Adjustment
Cut adjustment times in half for rear axle corrections. Graphics let you get it right on the first try. (Patented)

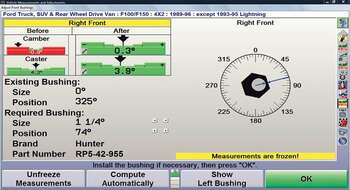

Automatic Bushing Calculator®
Calculate the proper bushing size and position adjustment without wasting time with a zero bushing. Eases the process of servicing Ford F-150-450's.
Patented

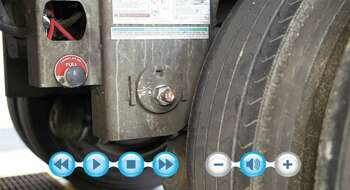

Adjustment Videos
Strengthen technician competency and extend profit opportunities with helpful adjustment videos.
Top-Software
Genaue Achsvermessung auf Anhieb, mit der ausgezeichneten WinAlign® Software von Hunter
Hand your customers a complete view of their big rig
WinAlign® HD printouts provide a comprehensive outlook of the multi-axle vehicle's wheel alignment measurements.

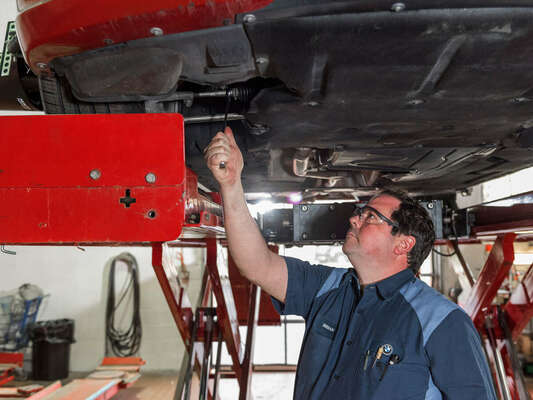

Take your adjustments with you.
Use the optional cordless Remote Indicator to see live adjustments from underneath the truck.
Optimieren Sie den Prozess mit vollständig integrierter Vermessung (FIA)
FIA-fähige Hebebühne oder Drehplatten von Hunter erforderlich
1 trip
To the aligner console
0 jacking axles
Required
81 steps
Total in the process
4 minutes
To get alignment readings
WinAlign® console
Communicates directly with lift to automatically operate turnplates and slip plates.
Vier-Säulen-Schwerlast-Hebebühnenkonsole
Das Anheben des Fahrzeugs führt dazu, dass die Sensoren nach Radreflektoren suchen.
PowerSlide®-System
Schiebe- und Drehplatten ver- und entriegeln automatisch zum richtigen Zeitpunkt

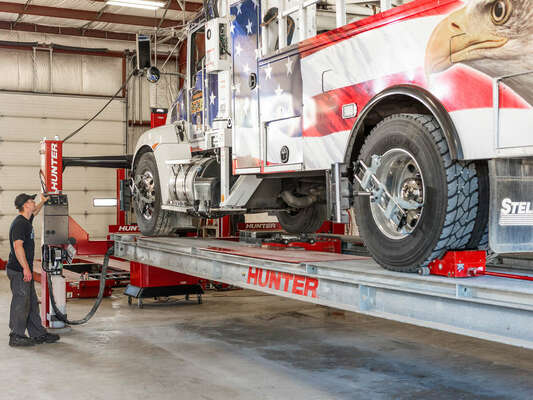

Lift up to 35,000-lbs. Align up to 300-in. wheelbase.
Hunter's Heavy-Duty Four-Post semi and truck lift features galvanized runways, turn plate pockets, and slip plates for servicing heavy or standard vehicles. Optional FIA functions connect it to the aligner to streamline the process.

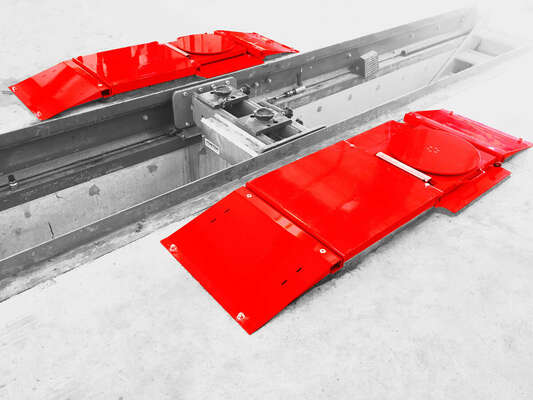

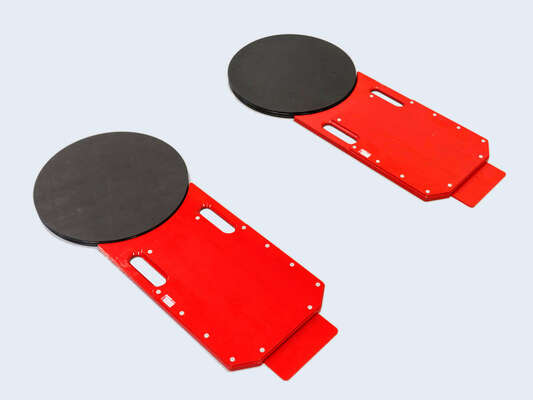

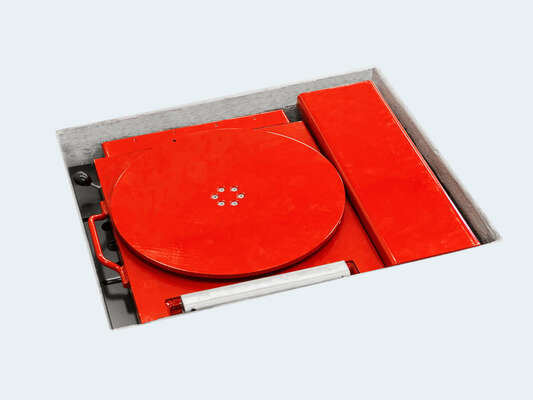

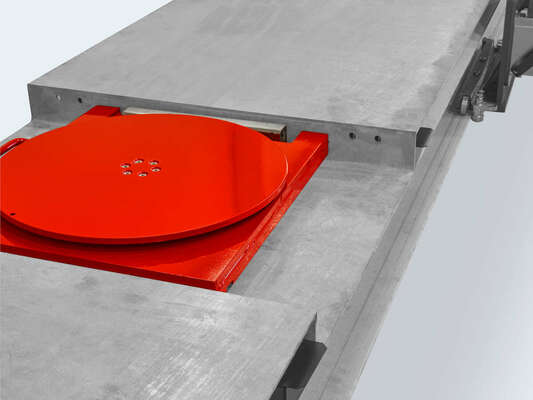

Optionale Drehplatten für Boden- oder andere Bühnen
Verwenden Sie eine vorhandene Grube
- Festinstallatation
- Passt problemlos für vorhandene Gruben, keine Bühne erforderlich
- Einstellbare Spurbreite – Halbtonner bis Klasse 8
- 10.000 kg pro Achse
- Eingebaute Drehplattenbrücke für Rollkompensation
Enhance your rack
- Compatible with Hunter HD alignment pit rack models
- Perform Quick Check®s and alignments more easily
- Adjustable track width — half-ton to Class 8
- 22,000 lbs. (10,000 kg) per axle
- Built-in bridges for rolling compensation
Great for new construction
- Level profile — reduces tripping hazards
- Provides clean installation and smooth approach
- Adjustable track width — half-ton to Class 8
- 22,000 lbs. (10,000 kg) per axle
- Built-in turnplate bridges for rolling compensation
Ultimate versatility
- Perfect for multiple bays or multiple steer axles (additional sets required)
- Mobile alignment service
- 22,000 lbs. (10,000 kg) per axle
Choose the configuration that fits your shop

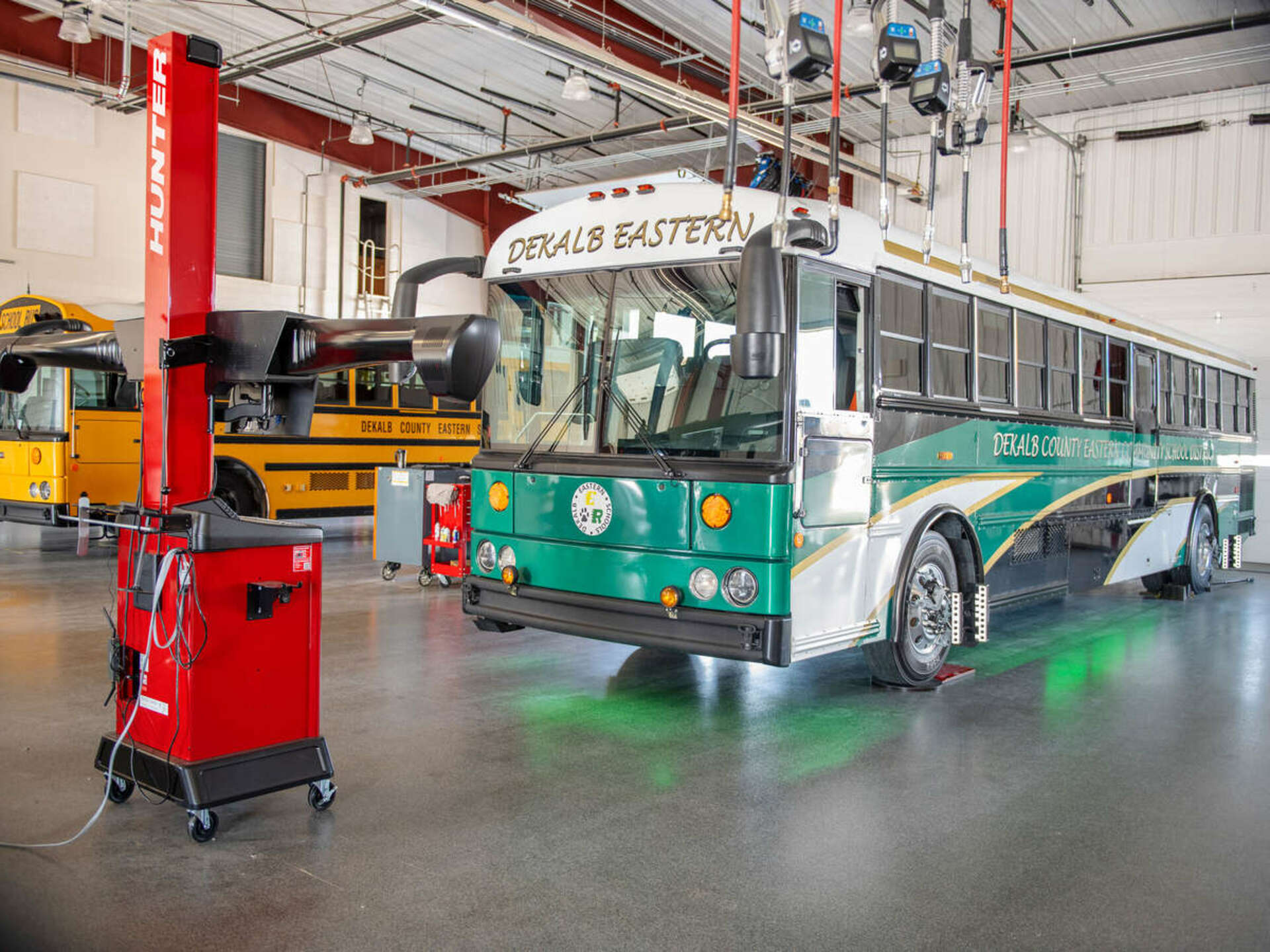

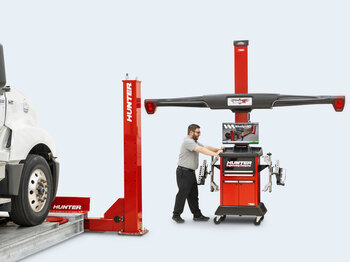

Movable
Cabinet-mounted
Use the aligner in multiple bays with a full range of travel for additional lift height.
Fixed
Fixed column
Suitable for traditional HD pits and challenging or tight bay setups. Moveable console can be placed where needed for easy technician access.
Weitere Möglichkeiten zur Erweiterung Ihrer Kompetenzen
1
2
3
4
5
Convenient Accessibility
- Rolling Storage Cart - Hang targets for quick access.
- Secondary Console Kit - Provide better visibility and control. Mounts to cart shown.
Mini Self-Centering Clamps
Mount to hub center of front rims. (set of 2)
Trailer Gauge
Mounts to the kingpin for trailer alignments.
Remote Indicator
Maintain control while making adjustments.
Wide-Angle Targets
Easily and accurately measure max steer.
Scan every vehicle, find every opportunity.

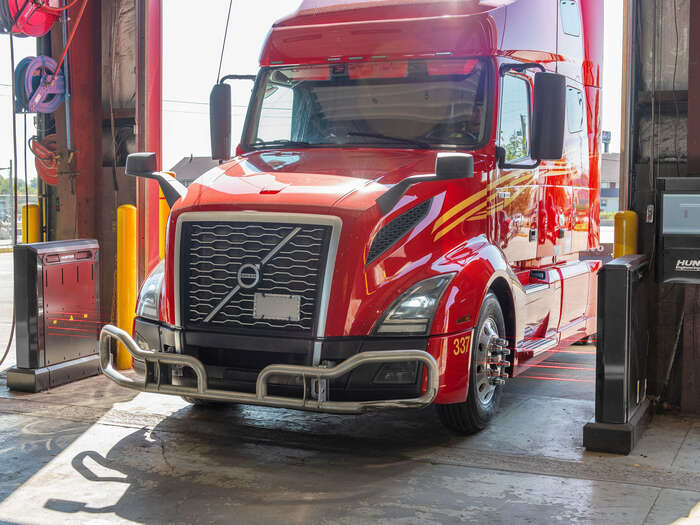

Quick Check® Commercial inspects for camber, total toe, scrub and tire wear on every truck, axle and tire that comes into your shop with no technician required. Keep your equipment producing with a steady stream of high-margin alignments.
Want to see it in action?
Send a message to your local Hunter heavy-duty business consultant to schedule a free on-site demo.

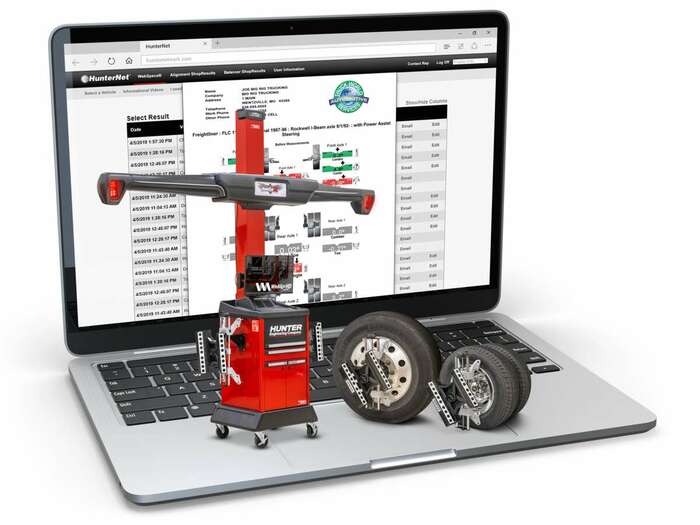

HunterNet® Portal
Connect your equipment to your business to maximize your shop's performance, simplify customer discussions with selling tools, and view extensive undercar information.
1
2
3
4
Recall alignment results
View previously serviced vehicles and recall printouts.
Monitor trends
Get a high-level overview of your alignment machine usage trends.
View usage details
See in-depth alignment machine usage statistics.
Receive daily reports
Setup to receive daily Push Reports to keep your goals and performance in check.
