Spring-loaded arms secured by thumb switch grip the tyre. Off-center clamping has no effect on accuracy.
Alignment System
Hunter HawkEye Elite®
70-second alignment measurements with pinpoint accuracy makes the HawkEye Elite® the most powerful wheel alignment machine on the market today, while also future-proofed with integrated ADAS calibration and diagnostic capabilities.
Hunter HawkEye Elite®
/
HawkEye Elite® features
Capture alignment measurements in 70 seconds
WinAlign® software is unmatched in the industry
Simplify positioning of market-leading ADAS static calibration fixtures
Easy-clamping, no metal-to-metal contact QuickGrip® adaptors
Configurations built for any shop space
Fully Integrated Alignment rack integration streamlines processes
HunterNet® connectivity to see and manage your performance
Erhalten Sie Vermessungsergebnisse innerhalb von 70 Sekunden
Fastest procedure
Only with a HawkEye Elite® can you perform a 70 second alignment check.
Minimal setup effort
One trip around the vehicle means faster alignments.
Immediate, accurate measurements
Easy-to-understand graphic representation of camber, toe and caster.
Define the standard with Hawkeye Elite® + WinAlign®
With 70,000 systems in use worldwide and a database supporting more than 285 million vehicles, HawkEye Elite® and WinAlign® have long defined the performance standard for alignment equipment past, present and future.
70 Second Alignment Drill
Watch how a fully-comprehensive wheel alignment check can be done in just over a minute.
Why Do Cars Need Wheel Alignment?
When your car is out of alignment, you may experience irregular tire wear, handling problems or a crooked steering wheel. A wheel alignment adjustment can correct these problems.
Fully Integrated Alignment Equipment from Hunter Engineering
Hunter's fully integrated alignment system reduces the technician's trips around the vehicle, and greatly reduces trips to the alignment console.
Berechnen Sie Ihren Vorteil und Gewinn
Speed setup time with Hunter's patented QuickGrip® adaptors and 3D targets
Fast installation
Spring-loaded clamping arms install easily — off-center placement has no affect on accuracy.
Avoid rim damage
Clamps hook tires and protective ring provides no metal-to-metal contact.
Efficient design
Lightweight, durable and low-profile form make QuickGrip® adaptors a technician-favorite.
Easy to clamp
No metal-to-metal contact
Clamping arms grip the tyre, not the rim. A protective rubber ring sits between the target and the rim.
Lightweight and durable
The lightweight, 2.75 kg (6 lb.) design is 50% lighter than previous models, featuring a durable polymer structure that resists drops and requires minimal maintenance with no electronics or calibration.
Slim profile
With an approximately 23-cm (9-in.) profile, it’s easy to work around and ideal for narrow bays.
Quick change arms
Accommodates assemblies up to 94 cm (37 in.), with one arm fitting approximately 90% of applications.
Off-center application
WinAlign® software calculates actual wheel position regardless of target centering.
Genaue Achsvermessung auf Anhieb, mit der ausgezeichneten WinAlign®-Software von Hunter
Extensive Database
WinAlign® is powered by the most extensive vehicle information use, 285+ million vehicles supported.
Vehicle-specific procedures
Guide your technicians with step-by-step instructions specific to the vehicle being serviced.
Over 30 years of development
Constant improvements and support come from the largest R&D department in the undercar industry.
See all of the features

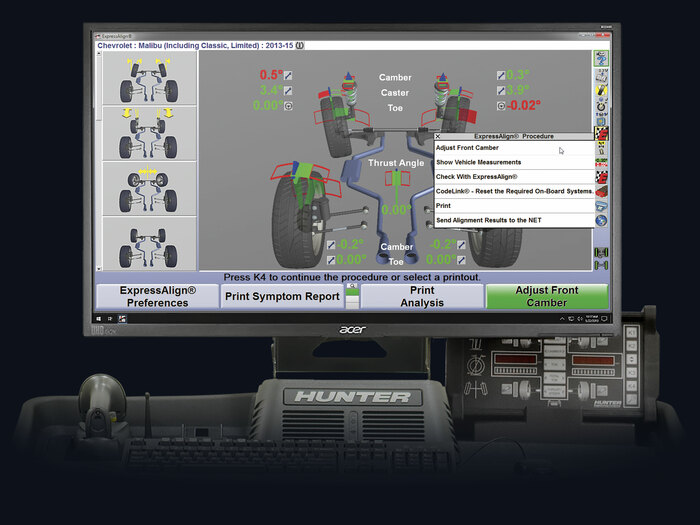

ExpressAlign®
Perform every alignment with a streamlined procedure. Analyze each job and present the optimal action sequence with the minimum steps required.
WinToe®
Ensure a straight steering wheel every time without repeated adjustments or using a steering wheel holder.
Tools & Kits Database
Save trips back and forth to the tool box by seeing all of the tools and aftermarket correction kits needed for each alignment.
Virtual View®
See camber, caster and toe angles in real-time 3-D graphics — used by experts and novices alike.
Control Arm Movement Monitor®
Cut adjustment times in half for front-shim, dualcam or dual-slot vehicles by using step-by-step graphics that let you get it right on the first try. Over 60 million vehicles benefit.
Wheel-Off Adjustment
Speed up the alignment process by making adjustments with the wheel removed.
Accessories required
Suspension Body Dimension Audit
Quickly screen vehicles to determine alignability and collision repair needs.
Patented
Shim-Select II®
Eliminate confusing shim charts and tables. Shim-Select II® quickly calculates and displays the template you need for proper shim installation.
Patented
Symmetry Angle Measurements
Instantly access symmetry angles and setback for your body shop customers.
Automatic Bushing Calculator®
Calculate the proper bushing size and position adjustment without wasting time with a zero bushing. Over 10 million light trucks and vans benefit.
Patented
Live Ride Height Adjustment
Measure and adjust ride height in real-time. Over 20 million vehicles require ride height measurement to complete alignment service.
Patented
Adjustment Illustrations
Photo adjustment illustrations provide real-life photos from the actual vehicle model for easy reference.
Vereinfachen Sie die Positionierung marktführender Geräte durch den Einsatz von Hunter-Kameras
Die Einrichtung der ADAS-Achsvermessung ist schnell, effizient und präzise
- 50 % schnellere Positionierung der Vorrichtung
- Eliminiert das Risiko von Radschäden
- Genaue Positionierung der Vorrichtung zur Fahrachse mithilfe von Kameras
Dargestellt mit Hella Gutmann ADAS-Kalibriervorrichtung.
Wählen Sie die ADAS-Vorrichtung, die am besten für Ihre Werkstatt geeignet ist
- 1. Hella Gutmann
- 2. Texa
- 3. OEM
- 4. Autel
- 5. WOW!
Die Vorrichtungen erfordern den Hunter Zusatzkamerasatz und Adapter.
Achsvermessungsgeräte, die sich an Ihre Platzverhältnisse anpassen
Optionen für jede Werkstatt
Die Kombinationen aus Achsvermessungskonsole und -Sensor erfüllen all Ihre Anforderungen.
Sensoren für jeden Platzbedarf
Ungeachtet der räumlichen Einschränkungen in der Grube oder im Raum, verfügt Hunter über ein Sensorpaket, das überall passt.
Produktive Konsolenkonstruktion
Die prämierte WinAlign® -Software bietet zahlreiche produktivitätssteigernde Werkzeuge für Ihren Bedarf in einer Konsole.
1
2
3
4
Mobility and space-saving
Cabinet-mounted configurations. Service multiple alignment bays and provides a full range of travel for additional lift height.
Choose from Xpandable or traditional.
Full-range height
Motorized, moveable or fixed-column configurations fit most service bay applications.
Open-floor area
Wall- and ceiling-mount configurations enable the optimal use of available space.
Compact fit
Fixed column camera configurations fit most service bay applications.
Große Konsole
Sehr viele Ablagemöglichkeiten und komfortable Mobilität
Kompakte Konsole
Mobile Konsole für enge Räume
Wandmontierte Konsole
Die kompakteste Konfiguration – Wandmontage oder Sensorsäule
Optimieren Sie den Prozess mit vollständig integrierter Vermessung (FIA)
60 % schneller
Führen Sie Achsvermessungen dank der synchronisierten Achsvermessungsanlage und Achsvermessungshebebühne um 60 % schneller durch.
Automatischer Betrieb
Drehteller und Schiebeplatten verriegeln automatisch und die Aufpumpstation befüllt automatisch die Reifen.
Beseitigung von Fehlern
Profitieren Sie von automatisierten Technikeraufgaben, die leicht vergessen oder ausgelassen werden können.
Precision Cameras
Capture measurements automatically once the final target is installed. (Patented)
WinAlign® Console
Communicates directly with lift to set tire pressures and operate turnplates and slipplates. (Patented)
Auto-locking turnplates & slipplates
Auto-locking process saves time and trips around the vehicle. (Exclusive)
InflationStation™
Automatically inflate all four tyres simultaneously while recording starting and final pressures. Hose recoils to keep the work area clear. (Patented)
PowerSlide® System
Slipplates and turnplates automatically lock or unlock at appropriate times — no more struggling with pins. (Patented)
1
Minute
4
Minutes
10
Minutes

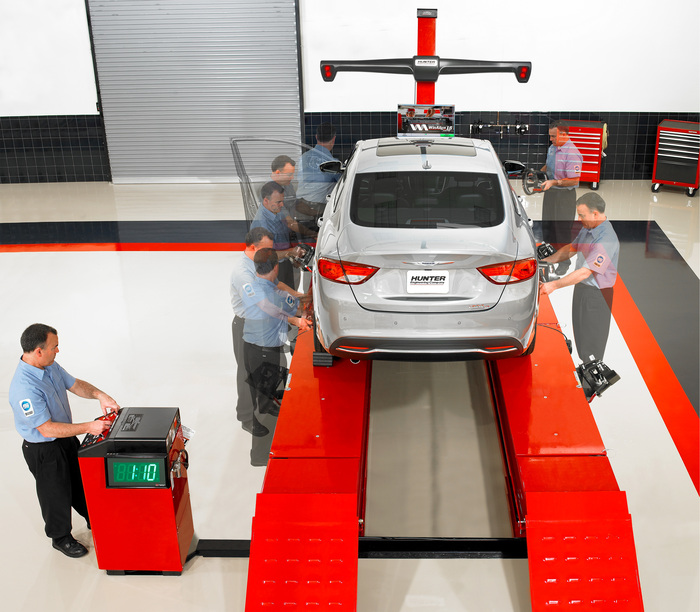

70-second wheel alignment results
1 trip around the vehicle
0 console interaction
72 steps total

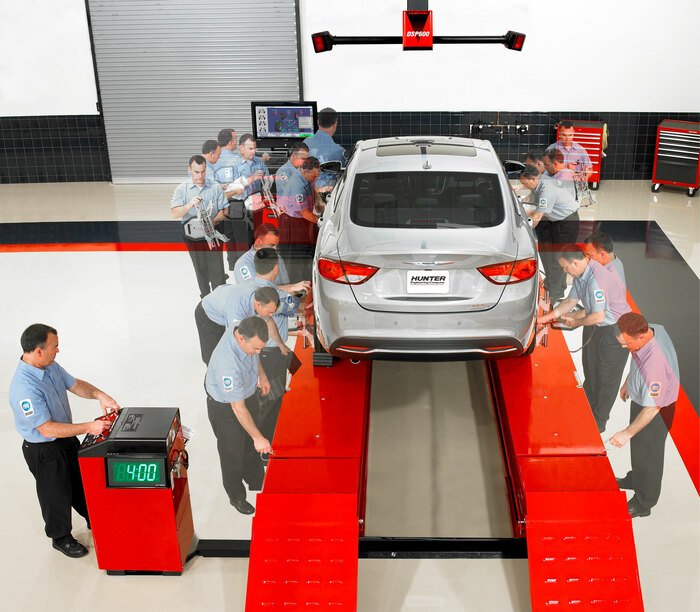

Camera sensors with traditional rack technology
3 trips around the vehicle
6 console interactions
183 steps total

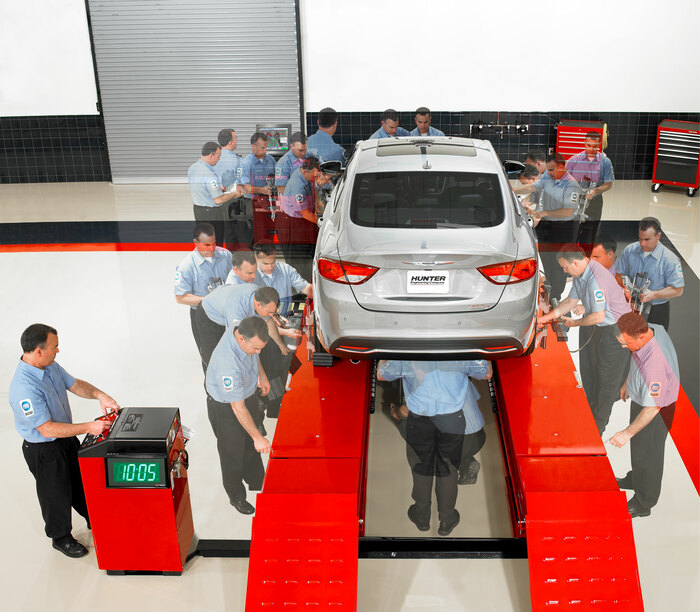

Conventional wheel-mounted sensors with traditional rack technology
4 trips around the vehicle
6 console interactions
246 steps total
Access vehicle-specific undercar information in the alignment bay
- Explore a vast collection of vehicle-specific undercar information
- Eliminate time-consuming manual searches with our online database of advanced sensor reset requirements
- See how-to's and instructions featuring illustrations, images and videos
Improve communication all around
Communicate results & educate your customers on misalignment, while accessing vehicle-specific undercar information in the alignment bay with WebSpecs®.
See communication features
Ergebnisse kommunizieren und Kundendaten verwalten
- Ergebnisse von Kfz-Inspektionen speichern und abrufen
- Es Kunden ermöglichen, Ergebnisse online einzusehen
- Ergebnisse anderen Unternehmen bereitstellen, um Garantien oder Versicherungsansprüche zu prüfen
Verwirrende, technische Kommunikation vermeiden
- Leicht verständliche Videos, Abbildungen und Bilder nutzen
- Den Kunden helfen, die richtige Entscheidung zu treffen
- Das Vertrauen Ihrer Kunden festigen
Verbinden Sie Ihre Geräte mit Ihrem Unternehmen
- Maximieren Sie die Leistung Ihrer Werkstatt
- Vereinfachen Sie Kundengespräche durch Verkaufstools
- Umfassende Informationen zum Unterboden anzeigen
Erfahren Sie mehr darüber, was HunterNet® für Ihre Werkstatt tun kann
1
2
3
Monitor Trends
Get a high-level overview of your alignment machine usage trends.
Receive daily reports
Setup to receive daily Push Reports to keep your goals and performance in check.
Recall Past Results
View previously serviced vehicles and recall printouts.
Galerie
Aufgrund des fortlaufenden technischen Fortschritts können die auf den Kundenfotos gezeigten Funktionen und Konfigurationen variieren.
Dokumente
-
Brochures
-
Specifications
-
Zubehör
3 Jahre Garantie von Hunter
Die Hunter Engineering Company gewährt eine 3-jährige Garantie auf neue Geräteersatzteile sowie eine Garantie von sechs Monaten auf Herstellungsdefekte.
In den USA entworfen und gefertigt
Vom Rohstahl zum Enderzeugnis. Wenn Sie sich für Hunter entscheiden, investieren Sie in mehr als 1.000 Arbeitskräfte in den USA.
