Quickly and easily secure the target to the wheel through magnetic pins adhering to the lug nuts, minimizing wheel damage risk.
Alignment System
Hunter HawkEye® XL
Fast and highly-capable alignment machine featuring Hunter's patented camera technology designed for heavy-duty semi truck and bus, medium-duty utility and fleet, and light-duty passenger vehicles.
HawkEye® XL
/
HawkEye® XL features
Three-dimensional XL targets are durable, low maintenance, and non-electronic
High-definition cameras are accurate, precise, and offer extra-long-range sight
Capture all measurements in a single rolling compensation
See live alignment readings from three axles at once
Perform wheel alignments on any surface, in any bay
Fully Integrated Alignment rack integration streamlines processes
HunterNet® 2 connectivity to see and manage your performance
Always adapting to the needs of trucks and fleet vehicles
New features and additions to HawkEye® XL keep your shop fully-capable of servicing heavy-duty, medium-duty and light-duty vehicles.
Magnetic wheel adaptors
Additional sensor configurations
Choose from the already-available movable cabinet-mount or the new fixed-column or drive-through sensors.
Secondary console and storage cart
Power through the day with cordless freedom, easy access storage, and enhanced visibility.
WinAlign 18.3 software
Packed with new features including target extension placement guidance, aligner placement for cabinet-mounted systems, and frame reference alignment procedures.
Hunter's industry-standard vision technology built for commercial vehicles
Alignments in any bay
Move the aligner for use in any bay, on the floor or a lift, with adjustable camera beam.
Multi-Axle Readings
See live alignment readings from three axles at one time with guided procedures.

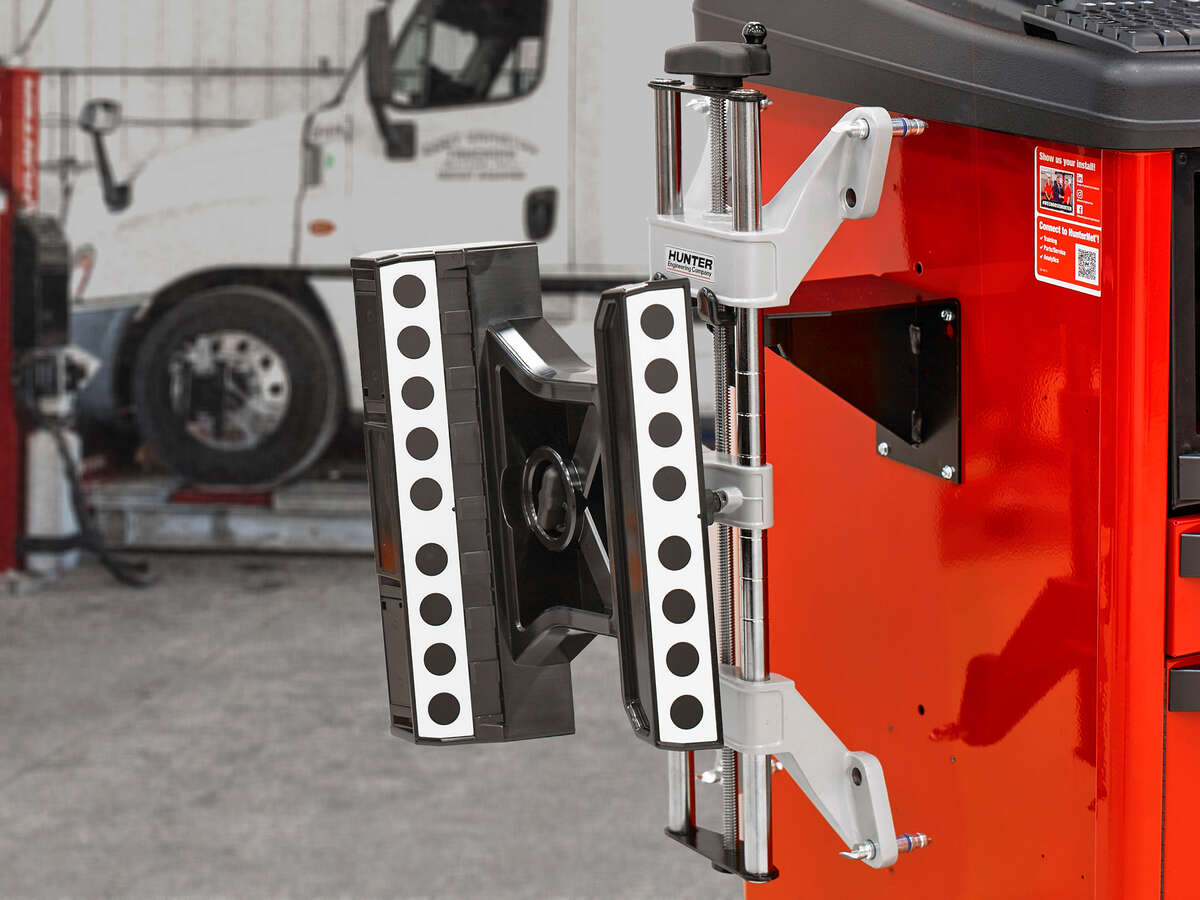

XL Targets
Hunter's patented 3D targets offer extreme durability, low maintenance, and no electronics at the wheel.
High-definition cameras
Extra-long range, high-resolution cameras precisely monitor each wheel in a 3D space to provide pinpoint-accurate measurements.
Trailer alignment
Long-range cameras easily see targets on 53-foot trailers. Align using optional kingpin adaptor.
Truck Pusher
Optional
Effortlessly move vehicle for rolling comp with rechargeable battery-powered pusher.
Velké nebo malé, seřiďte je všechny s HawkEye XL
Podívejte se na video k HawkEye XL Hype.
Navrženo a vyrobeno v USA
Hunter Engineering Company® již 75 let navrhuje a vyrábí zařízení pro servis automobilů v USA.
Heavy-duty big rigs
Align multi-axle class 8 tractors, trucks and buses.
Trailer
Align trailers up to 53 feet using the optional kingpin adaptor or new back-in procedure.
Medium-Duty
Align box trucks, utility trucks, fleet vehicles, last-mile deliver vans, and more.
Light-Duty
Align passenger cars and trucks.
Ready for whatever comes through your door
Align a wide range of commercial vehicles from semi-truck tractors, trailers, big rigs, buses, box trucks, and even passenger vehicles.
XL targets for XL alignments
Always ready
No batteries, cables or wireless signal connection are required.
Wheel adaptor options
Highly-versatile self-centering wheel adaptors come standard with optional magnetic adaptors to simplify attachment.
Low cost of ownership
Extremely durable and low-maintenance design make Hunter targets a shop favorite..
Multi-axle readings
See live alignment readings from three axles at one time with guided procedures.
Quick rolling compensation
Compensate all wheels and capture initial measurements in one motion.
Built shop-tough
Durable, lightweight targets attach to each wheel without any electronics.
Wide-angle extensions
Extends targets outward for increased visibility when measuring caster and maximum steering angles. Same robust material as XL targets, and no characterization needed.
Optional
Trailer alignment
Align using optional kingpin adaptor. Long-range cameras easily see targets on 53 foot trailers or back in configuration.
Off-center application
WinAlign® software calculates actual wheel position regardless of target centering.
Calculate your payoff and profits
Trailers carry the load. Give them the alignment they deserve.
Long-range cameras easily see targets on 53 foot trailers.
Align using optional kingpin adaptor.
NEW back-in trailer alignment ability via latest Hunter software.
Save yourself the trip
Convenient storage available to hang targets and store truck pusher for quick access.
Secondary console provides better visibility and control. Mounts to cart shown.
All-day power from your own connected battery pack lets you go fully cordless.
Updated
Complete axle configurations
Select from 50 unique procedures or build your own truck and trailer axle configurations to perform the fastest, easiest, step-by-step alignment process on virtually any vehicle.
New
Back-in trailer procedure
Align backed-in trailers with or without the truck connected.
Three Axles Live
See three axles live with all measurements at once. Reduce setup time through minimal target movement.
ExpressAlign®
Perform every alignment with a streamlined procedure. ExpressAlign® analyzes each job and presents the optimal action sequence with the minimum steps required.
WinToe®
Ensure a straight steering wheel every time without repeated adjustments or using a steering wheel holder. Works with all vehicles on the road today, from cars to Freightliners.
Rear Axle Adjustment
Cut adjustment times in half for rear axle corrections. Graphics let you get it right on the first try. (Patented)
Automatic Bushing Calculator®
Calculate the proper bushing size and position adjustment without wasting time with a zero bushing. Eases the process of servicing Ford F-150-450's.
Patented
Adjustment Videos
Strengthen technician competency and extend profit opportunities with helpful adjustment videos.
Nepřekonatelný software
Proveďte seřízení geometrie hned napoprvé pomocí oceňovaného softwaru WinAlign® společnosti Hunter
Hand your customers a complete view of their big rig
WinAlign® HD printouts provide a comprehensive outlook of the multi-axle vehicle's wheel alignment measurements.
Take your adjustments with you.
Use the optional cordless Remote Indicator to see live adjustments from underneath the truck.
Zjednodušte proces pomocí plně integrovaného seřízení geometrie (FIA)
Vyžaduje zvedák nebo otočné talíře Hunter s funkcí FIA
1 trip
To the aligner console
0 jacking axles
Required
81 steps
Total in the process
4 minutes
To get alignment readings
WinAlign® console
Communicates directly with lift to automatically operate turnplates and slip plates.
Konzole pro čtyřsloupový zvedák pro nákladní vozidla a autobusy
Zvednutí vozidla spustí snímače, které hledají terče kol.
Systém PowerSlide®
Posuvné a otočné desky se v odpovídajícím čase automaticky aretují a odaretují.
Lift up to 35,000-lbs. Align up to 300-in. wheelbase.
Hunter's Heavy-Duty Four-Post semi and truck lift features galvanized runways, turn plate pockets, and slip plates for servicing heavy or standard vehicles. Optional FIA functions connect it to the aligner to streamline the process.
Možnosti otočné desky pro podlahové nebo jiné zvedáky
Použijte stávající montážní jámu
- Pevná instalace
- Snadno se přizpůsobí stávající jámě, bez nutnosti dalších úprav
- Nastavitelná šířka plošiny – pro vozidla od půl tuny až po velké nákladní automobily
- 10 000 kg (22 000 liber) na nápravu
- Vestavěné přejezdové vložky u otočných desek pro pojezdovou kompenzaci
Enhance your rack
- Compatible with Hunter HD alignment pit rack models
- Perform Quick Check®s and alignments more easily
- Adjustable track width — half-ton to Class 8
- 22,000 lbs. (10,000 kg) per axle
- Built-in bridges for rolling compensation
Great for new construction
- Level profile — reduces tripping hazards
- Provides clean installation and smooth approach
- Adjustable track width — half-ton to Class 8
- 22,000 lbs. (10,000 kg) per axle
- Built-in turnplate bridges for rolling compensation
Ultimate versatility
- Perfect for multiple bays or multiple steer axles (additional sets required)
- Mobile alignment service
- 22,000 lbs. (10,000 kg) per axle
Choose the configuration that fits your shop
Movable
Cabinet-mounted
Use the aligner in multiple bays with a full range of travel for additional lift height.
Fixed
Fixed column
Suitable for traditional HD pits and challenging or tight bay setups. Moveable console can be placed where needed for easy technician access.
Fixed
Drive-through
Drive-through sensor configuration offers flexibility with open lanes preventing the need to back out. Floor alignments only.
Další volby pro rozšíření vašich možností
1
2
3
4
5
Convenient Accessibility
- Rolling Storage Cart - Hang targets for quick access.
- Secondary Console Kit - Provide better visibility and control. Mounts to cart shown.
Mini Self-Centering Clamps
Mount to hub center of front rims. (set of 2)
Trailer Gauge
Mounts to the kingpin for trailer alignments.
Remote Indicator
Maintain control while making adjustments.
Wide-Angle Targets
Easily and accurately measure max steer.
Scan every vehicle, find every opportunity.
Quick Check® Commercial inspects for camber, total toe, scrub and tire wear on every truck, axle and tire that comes into your shop with no technician required. Keep your equipment producing with a steady stream of high-margin alignments.
Want to see it in action?
Send a message to your local Hunter heavy-duty business consultant to schedule a free on-site demo.
1
2
3
4
Recall alignment results
View previously serviced vehicles and recall printouts.
Monitor trends
Get a high-level overview of your alignment machine usage trends.
View usage details
See in-depth alignment machine usage statistics.
Receive daily reports
Setup to receive daily Push Reports to keep your goals and performance in check.
