- 16,000 lb capacity
- 2 x 9,000 lb capacity jacks
- 195" 2-wheel alignment wheelbase
- Flush mount only
- PowerSlide and Inflation Station capable
Maximum productivity, minimum space
Alignment Rack

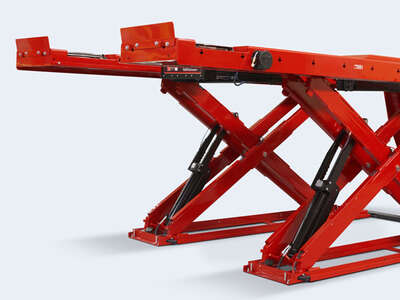

SCISSOR ALIGNMENT LIFTS
Maximum Productivity, Minimum Space
Hunter's automotive scissor lift family offers four capacities and several wheelbase lengths to meet virtually any need. Hunter vehicle scissor lift racks feature low drive on heights for all models, or even popular flush mount configurations. Add InflationStation™, PowerSlide®, and AlignLights options to really ramp up productivity.
New harsh-duty options available for high road salt/brine use applications.
FEATURES AT-A-GLANCE
-
Open-front and rear access
-
Stainless steel turnplates standard
-
Built-in slip plates standard
-
Two moveable worksteps standard
SPECIFICATIONS AT-A-GLANCE
-
10-16,000 LBS.Capacity
-
2 SWING JACKSTechnician Favorite
-
24" & 26"Wide runways
-
162"-195"2-Wheel Alignment Wheelbase
Hunter Scissor Alignment Lifts
/
PRODUCT FAMILY AT-A-GLANCE
RX16
16,000 lb Capacity
RX14
14,000 lb Capacity
- 14,000 lb capacity
- 2 x 9,000 lb capacity jacks
- 195" 2-wheel alignment wheelbase

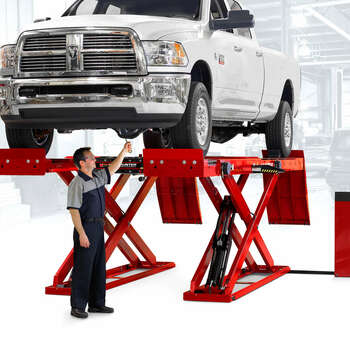

- Surface mount only
- PowerSlide and Inflation Station capable

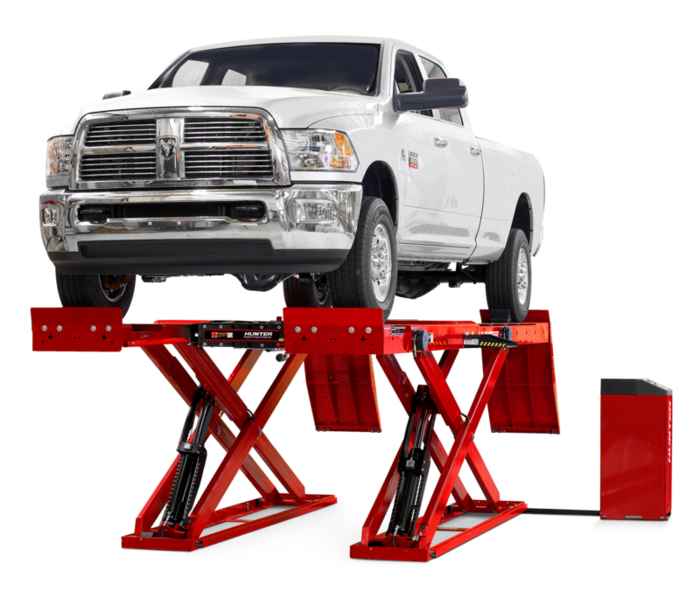

RX12
12,000 lb Capacity
- 12,000 lb capacity
- 2 x 6,000 lb capacity jacks
- 179" 2-wheel alignment wheelbase
- Flush or surface mount
- PowerSlide and Inflation Station capable

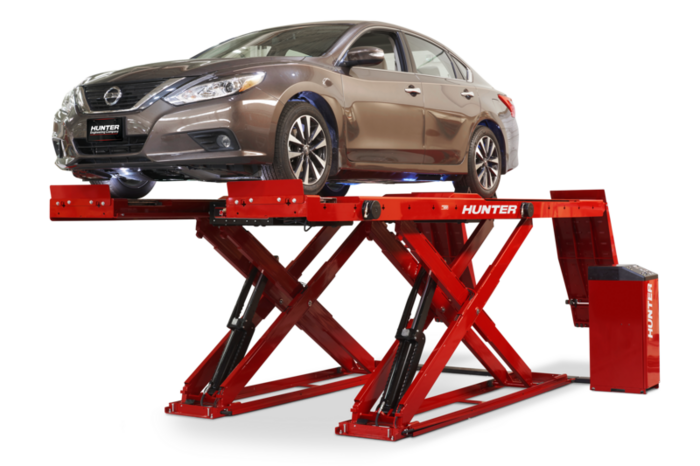

RX10
10,000 lb Capacity
- 10,000 lb capacity
- 2 x 6,000 lb capacity jacks
- 162"-179" 2-wheel alignment wheelbase
- Flush or surface mount
- PowerSlide and Inflation Station capable

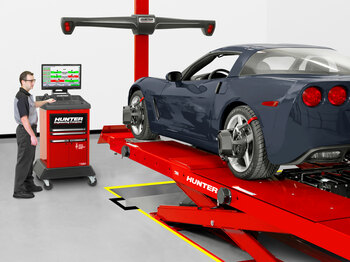

Streamline the process with Fully Integrated Alignment (FIA)
Eliminate errors
Automates technician tasks, like locking and unlocking turnplates, so critical steps aren’t skipped, preventing poor alignments.
60% Faster
Complete alignments faster with Hunter's synchronized wheel alignment machine and alignment rack.
WinAlign® Console
Guides technicians step-by-step, automates turnplates and slipplates, and communicates directly with the lift to set tire pressure.
Automatic Functions
Turnplates and slip plates auto-lock, and inflation station automatically inflates tires.
Precision Cameras
Alignment
- Four high-resolution cameras
- Measurements are taken automatically once the fourth target is installed
Auto-locking turnplates & slipplates
Exclusive
Auto-lock saves time and trips around the vehicle

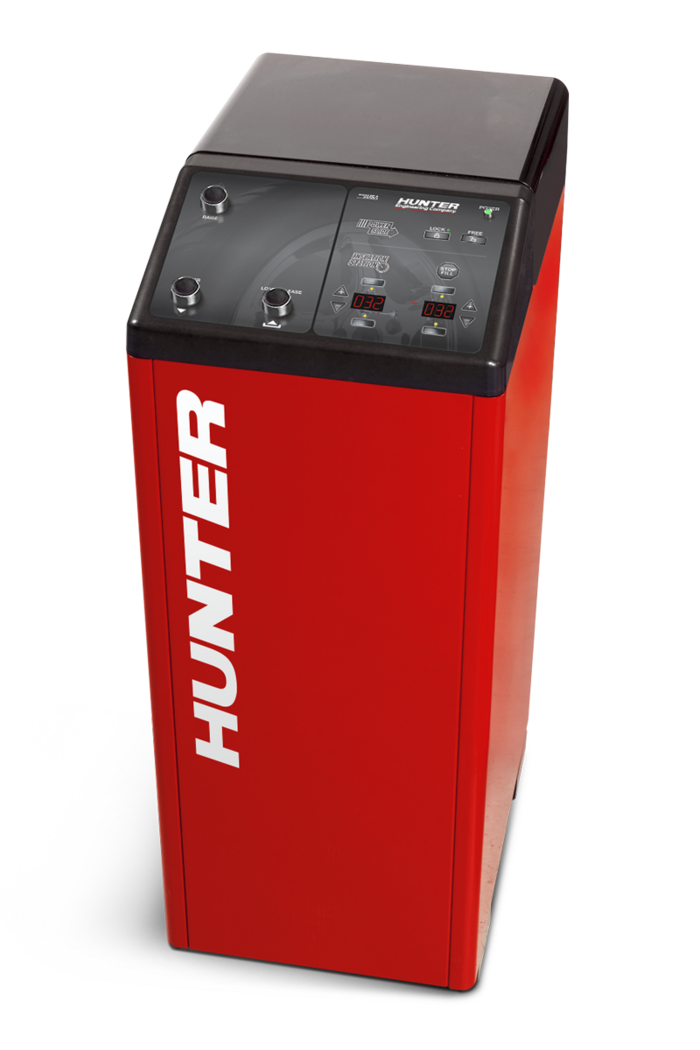

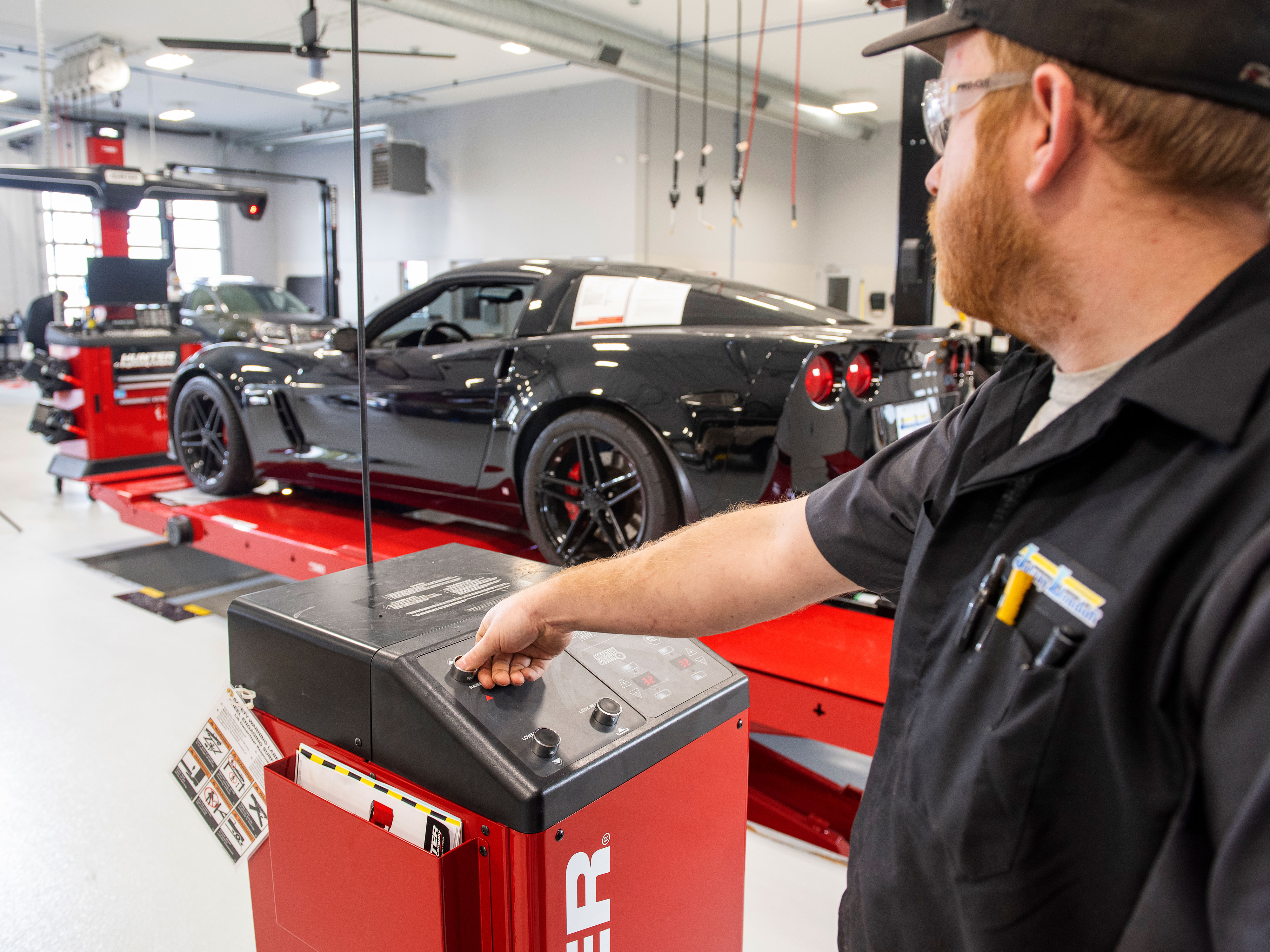

Inflation Station
Patented
- Automatically inflates all four tires simultaneously
- Automatically records starting and final pressures
- Hose recoils to keep work area clear
PowerSlide® System
Patended
- Slipplates and turnplates automatically lock and unlock at appropriate times
- No more struggles with turnplate & slipplate pins
Hunter's 3-Year Warranty
Hunter Engineering Company warrants new equipment replacement parts for three years and labor for six months.
Hunter Scissor Alignment Lifts: Standard Operations
See a quick demonstration of the safest and most efficient methods of operating the Hunter RX Scissor Lift Rack with a vehicle loaded on the runways.
The Hunter Four-Post Lift Rack: Detailed Operation
See a hands-on demonstration of the Hunter series of four-post lift racks that includes raising the vehicle, using the swing air jacks, resetting the locks, and returning the vehicle to the floor.
Future-proof your business with HawkEye Elite® X
HawkEye Elite® X is an all-new, future-proof alignment + diagnostics + ADAS package. Proudly made in the USA, the aligner comes standard with the ADASLink® diagnostic scan tool with secure gateway ability for dynamic calibrations, standard-setting WinAlign® software and specs database, pre- and post-scans, and steering system resets, plus aligner remote viewer and control ability anywhere in the bay. Critically, HawkEye Elite® X allows for a seamless upgrade from best-in-class alignment to the best-in-class Ultimate ADAS® laser-guided static calibration system, cutting target setup time by up to 70 percent.
Hunter RX series scissor lift: Harsh-duty option
Hunter Engineering service rep Rick Marzen and Babcox Media’s Joe Keene provide a quick introduction to the harsh-duty option in the RX series line of alignment scissor lifts. Stainless steel slip plates, zinc-rich primer, epoxy-sealed joints to combat salt, and LED lights combine to make this 10,000-lb. RX lift a solid option for cold-weather climates.
New at SEMA - RX14KL Scissor Alignment Rack
Hunter’s new, longer variations of its popular RX14 and RX16 scissor alignment racks can now accommodate up to 195-inch two-wheel wheelbases. The new RX14KL lift gains an additional 13 inches, while the RX16KL picks up an additional 17 inches. The longer wheelbase adds more medium-duty vehicle capability, along with more runway to perform rolling compensation on crew-cab pickups and larger vans. It also adds more last-mile delivery vehicle capability, thus meeting the needs of a rapidly growing service segment.
Shop Alignment System Parts and Accessories
Genuine Hunter alignment machine parts will keep your investment aligned with your goals.

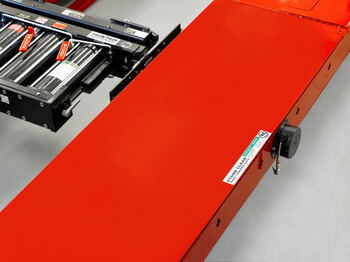

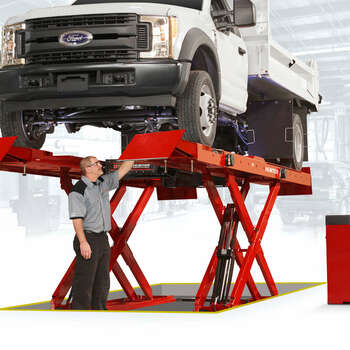

Flush-Mounting
Eliminate ground clearance concerns, and give your workspace a premium appearance.
Extra-Wide Runways
Drive‑on ease, up to vehicles 92" wide—including full‑size pickups, SUVs, minivans, and even delivery vans. Wheelbase choices allow for fits for every shop.
Fast Descent
Reduced lowering time by 50% with soft landing ensures safety.

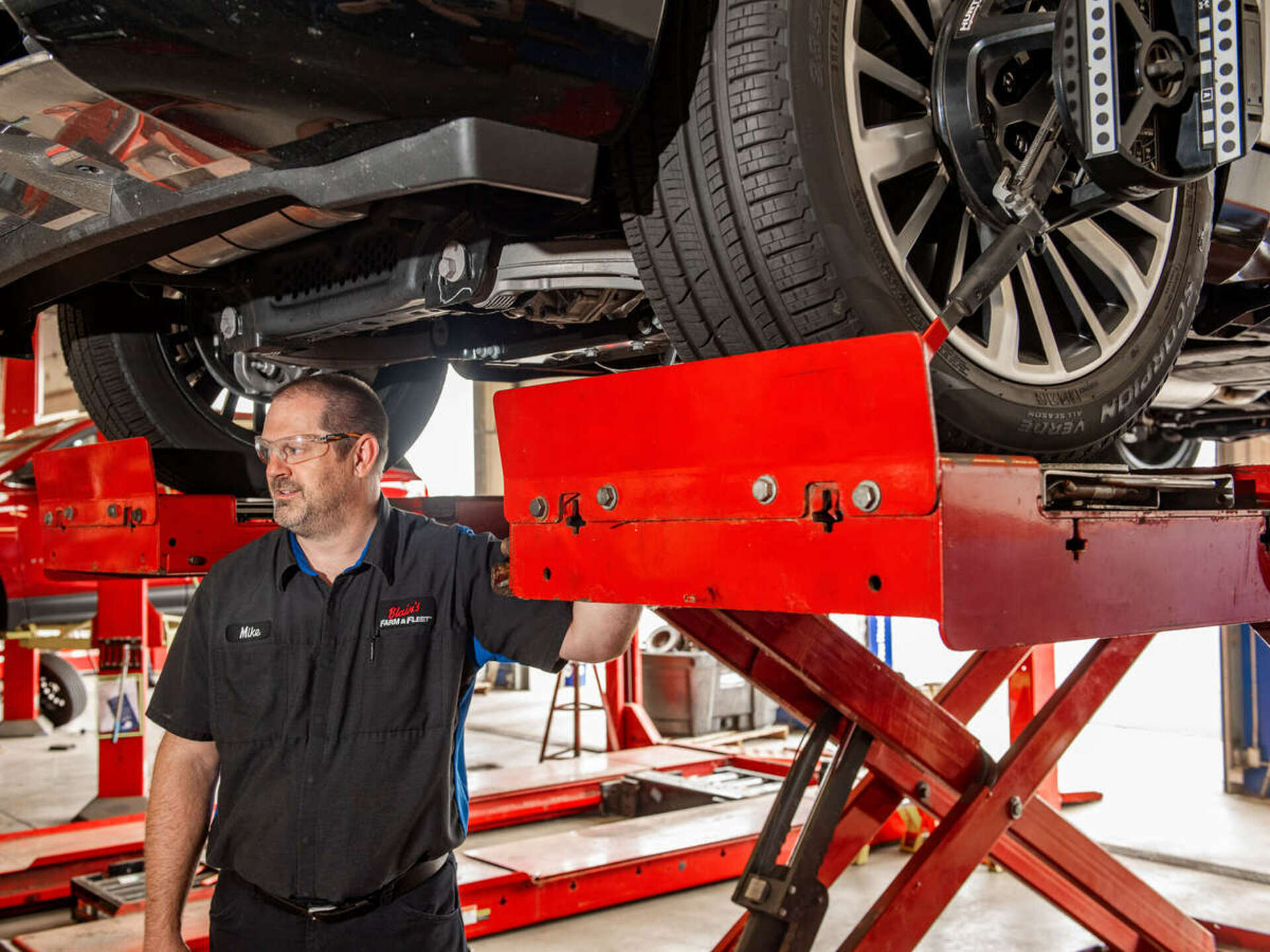

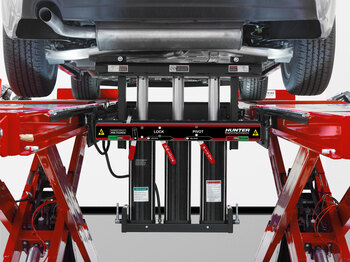

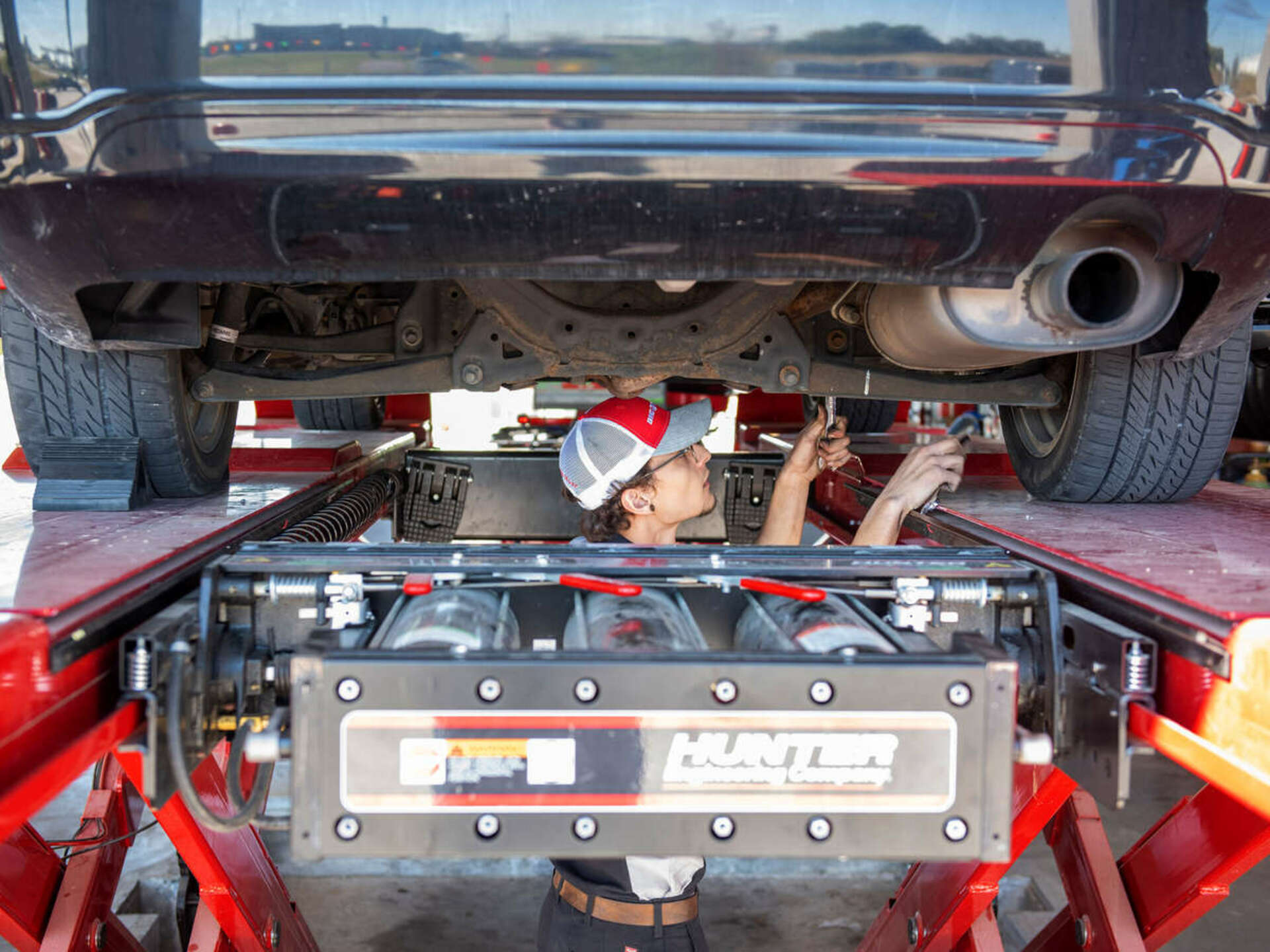

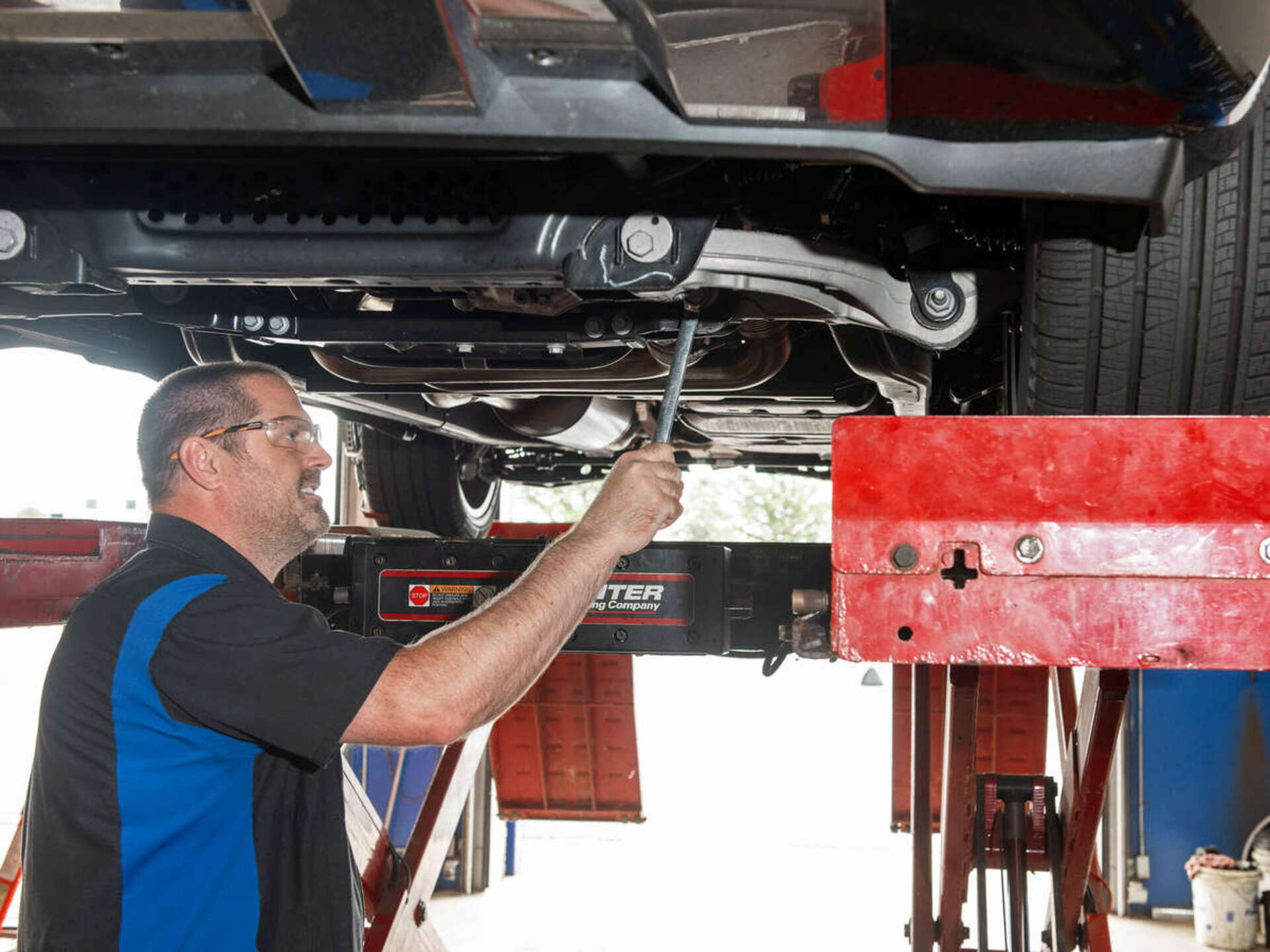

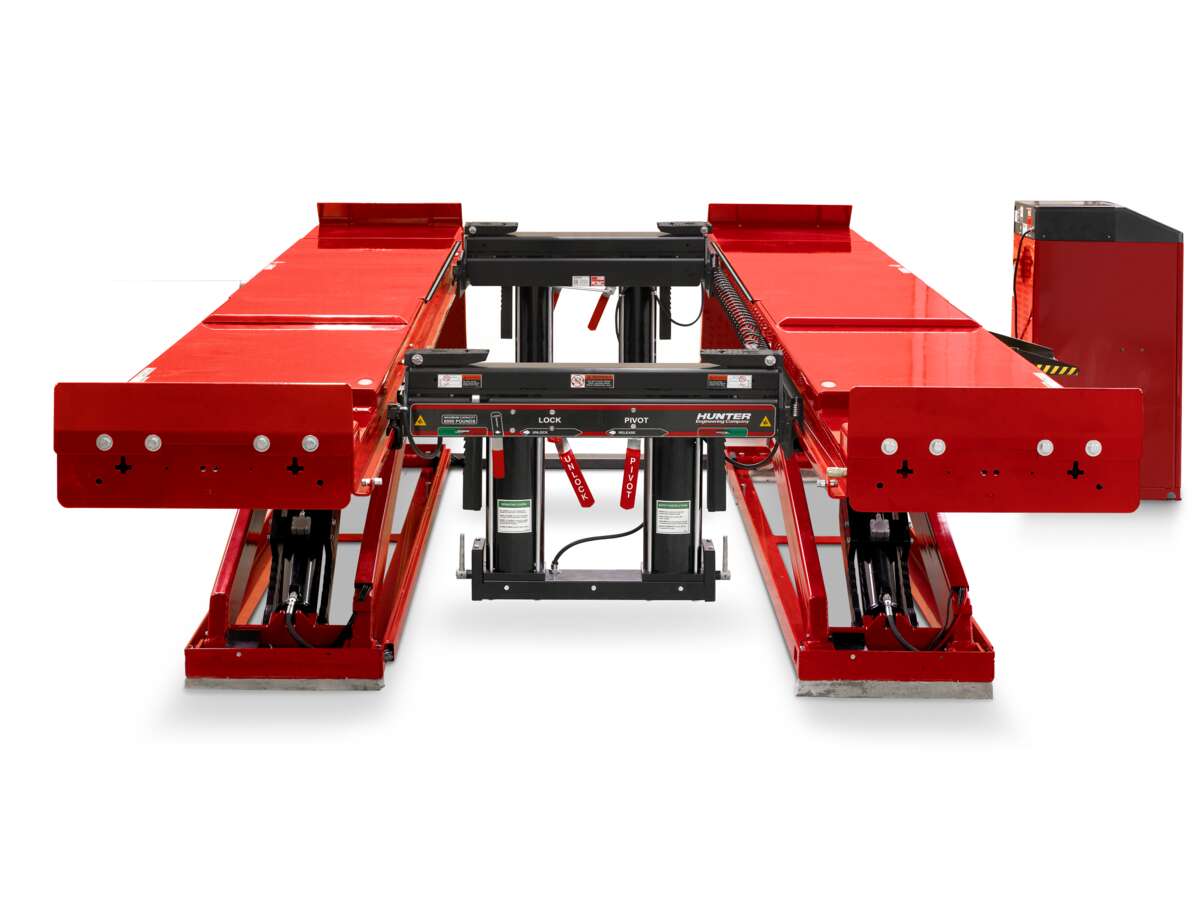

Swing Air Jack Equipped
Two high-capacity swing air jacks come equipped—an industry standard with unmatched height, reach and durability.

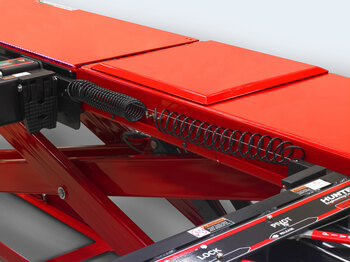

Built-in Rear Slip Plates
88" to 158" long for 4-wheel alignments on any vehicle.

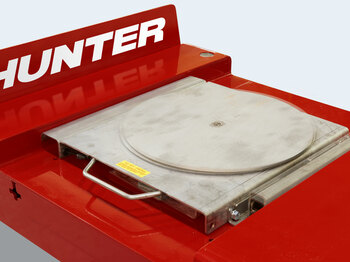

Stainless Steel Turnplates
Stainless Steel Turnplates Standard, for a lifetime of easy and accurate alignments.

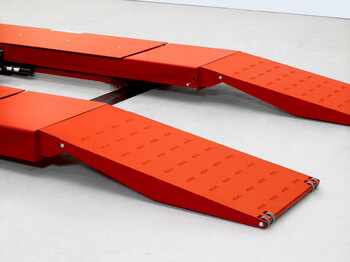

Louvered Approach Ramps
High traction prevents wheel spin. Better than diamond plate or abrasive finish.

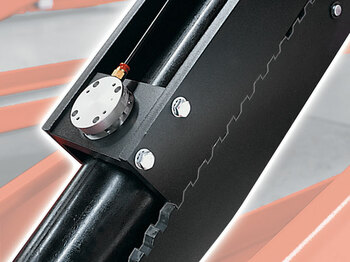

Sixteen Position Locks
Fine mesh locks insure levelness and safety.
Electronic Level Control
Keeps runways level at all time shuts down with obstruction.

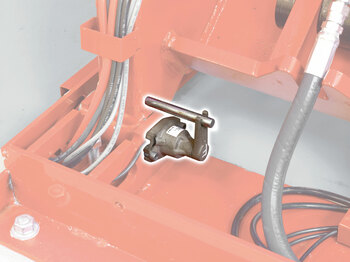

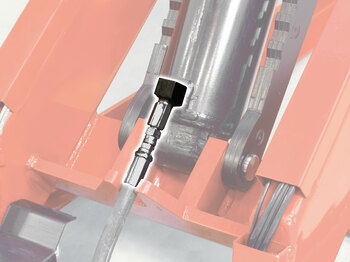

Hydraulic Safety Fuses
Instantly shutdown in event of hose failure.
Optional Alignlights
See where you work. Lights shut off automatically when rack is lowered, light when raised.
Air Line Kit
Air supply to jacks and auxiliary ports standard.

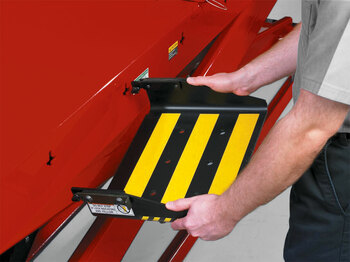

Two Movable Worksteps
Sturdy, lightweight and lock into multiple convenient locations (not suitable for flush lifts).
Hunter Scissor Lift Features
Discover how your Hunter Scissor Lift can benefit your shop.
Complete Alignment Automation
Our fully inegrated alignment system (FIA) automates turnplates, slip plates, and tire inflation while WinAlign® guides every step. Upgrade your scissor rack with seamless alignment capability today.
Optional Harsh Duty
Racks with Hunter's Harsh Duty feature enhanced corrosion protection for those regions with high road salt and brine solution usage. Available only on IS and PS model lift racks.
Zinc-rich primer
Zinc-rich primer on runways, ramps and bases provide a second layer of protection
Stainless Steel Slipplate Tops
Corrosion-resistant stainless steel slipplate tops and complete turnplates
Epoxy-Sealed Joints
Epoxy-sealed joints and seams prevent salt seepage between adjoining pieces of metal
Polymer Components
Polymer slipplate balls and retainers will not corrode
Threshold Cover
Pre-galvanized and powder coated threshold cover
Order alignment rack accessories online
Keep raising your shop capabilities by purchasing alignment rack consumables 24/7 through Shop Hunter!
SET ASIDE A BIT OF SPACE IN
YOUR SHOP FOR PRODUCTIVITY
SCHEDULE A FREE ON-SITE DEMO
Receive same- or next-day service
Get a free quote or on-site demo
Register for ASE-accredited training
General information & questions
SPECIFICATIONS
|
|
|||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GALLERY
Because of continuing technological advances, features and configurations shown in customer photos may vary.
