Four precision cameras measure each wheel using Hunter’s patented QuickGrip® adaptors.
Walk-around convenience plus high capacity
Alignment Rack

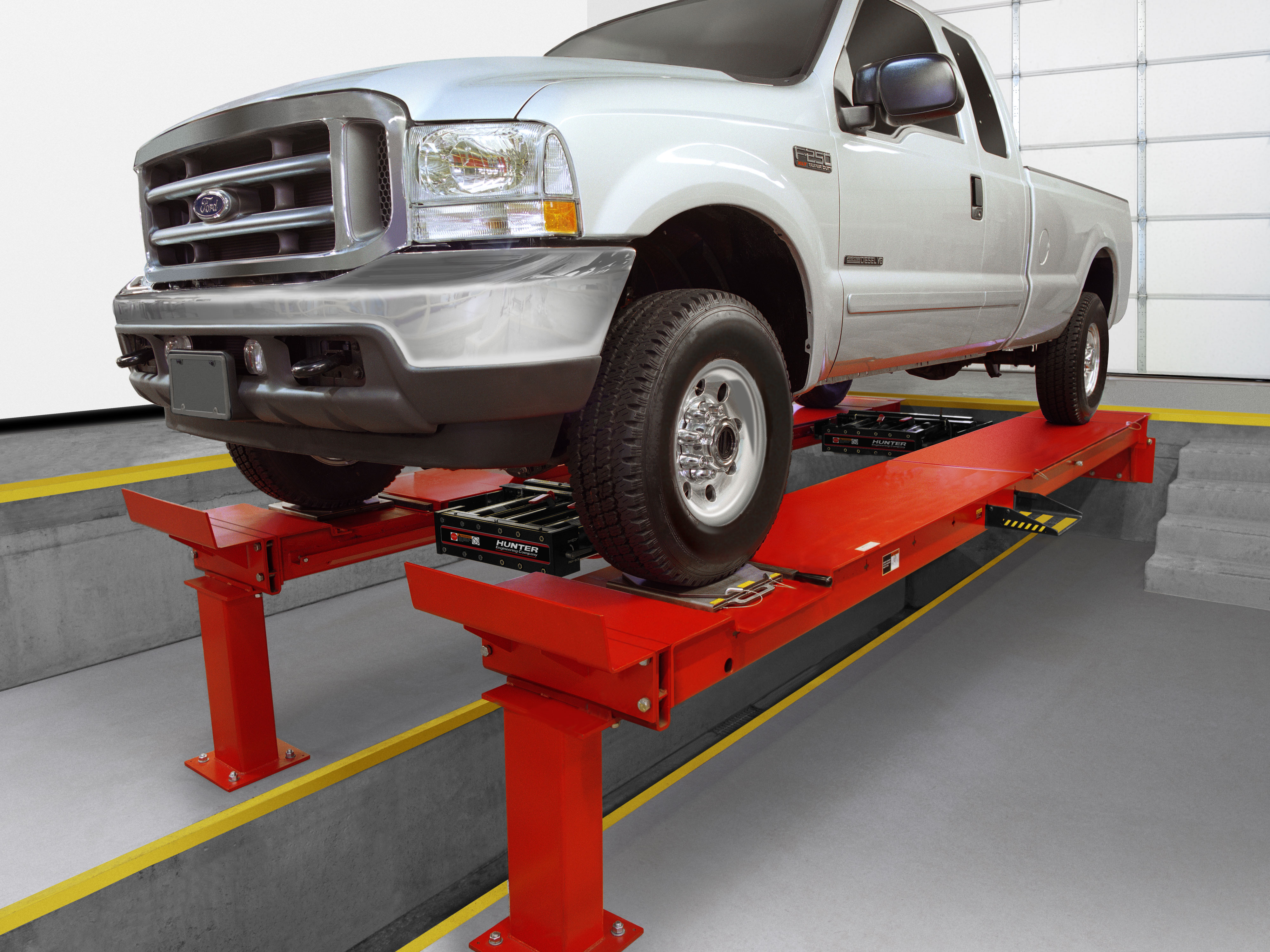

ALIGNMENT PIT RACKS
WALK-AROUND CONVENIENCE PLUS HIGH CAPACITY
Hunter’s pit racks are 18,000-lb. capacity and provide feature two 9,000-lb. capacity swing jack. 4-wheel alignment wheelbases up to 158-in. can be serviced. 2-wheel alignment wheelbases are limited only by the space behind the rack as rear axles can rest on approach concrete.

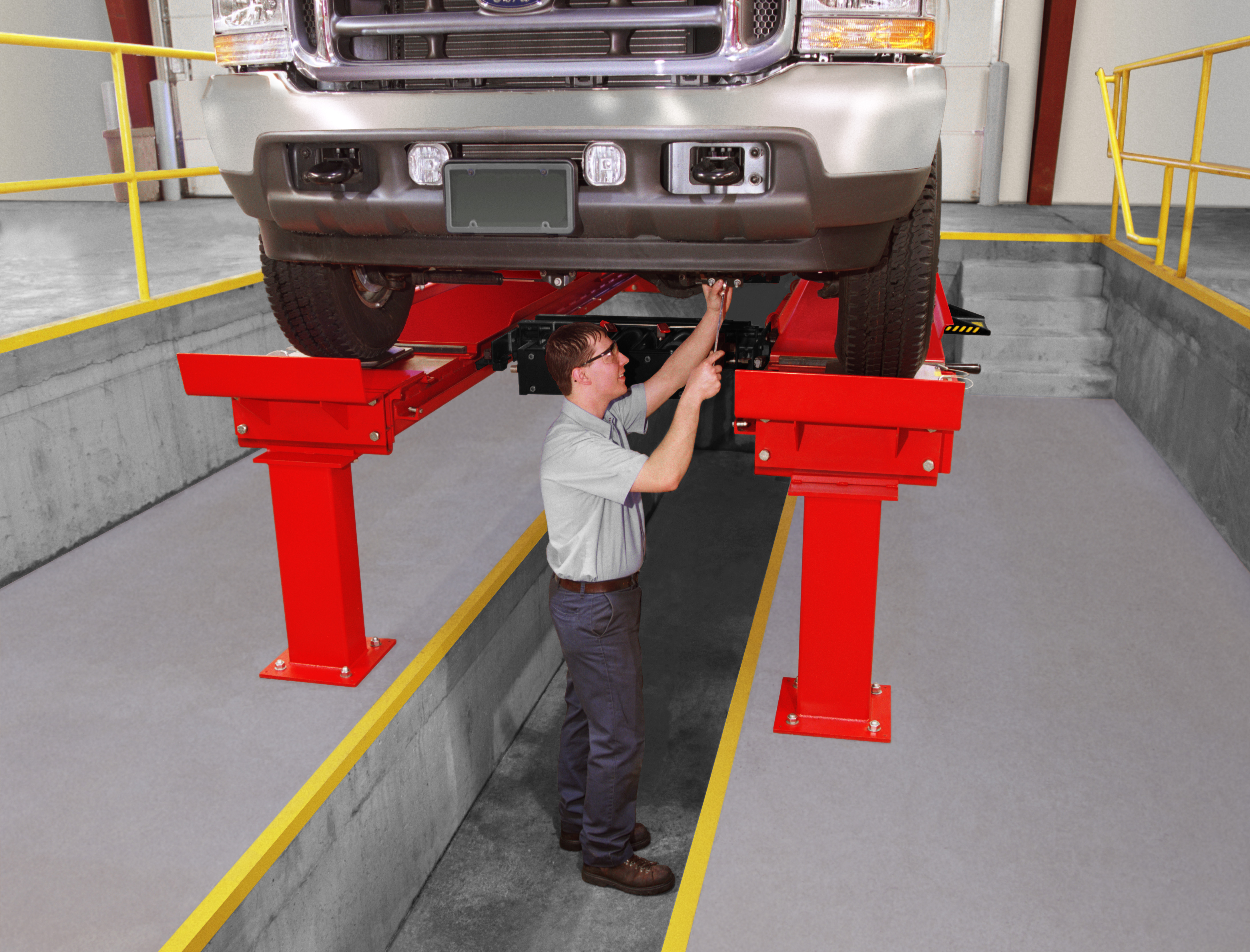

A deep center allows easy access underneath of vehicles, while a walk-around shallow pit provides easy use of alignment instrumentation.
FEATURES AT-A-GLANCE
-
Wide runways ease service of large vehicles
-
Stainless steel turnplates standard
-
Built-in slipplates standard
-
36" pit depth
SPECIFICATIONS AT-A-GLANCE
-
18,000 LBS.Capacity
-
2 x 9,000 LBS.Capacity jacks
-
26"Wide runways
-
223" OR 255.5"Runway lengths available
Hunter Alignment Pit Racks
/
PRODUCT FAMILY AT-A-GLANCE
P451
- 8164 kg. capacity
- 660 mm. wide runways
- 5564 mm. deck length
P451L
- 8164 kg. capacity
- 660 mm. wide runways
- 223 mm or 255.5 mm deck length
Hunter's 3-Year Warranty
Hunter Engineering Company warrants new equipment replacement parts for three years and labor for six months.
PIT RACK FEATURES
1
2
3
4
WALK-AROUND PIT
Saves time spent raising and lowering lift.
WIDE VEHICLE COVERAGE
18,000lb capacity, 26" wide runways, and up to 255.5" deck lengths, plus concrete allows the longest vehicles to be serviced.
BUILT-IN SLIP PLATES
88" to 158" for 4-wheel alignments.
OPTIONAL POWERSLIDE
One touch locking and unlocking of turnplates and slipplates.
1
2
3
4
AIR LINE KIT
Air supply to jacks and auxiliary ports standard.
SWING JACK EQUIPPED
Two 9,000lb capacity swing-air jacks are standard.
STAINLESS STEEL TURNPLATES
For a lifetime of easy and accurate alignments.
OPTIONAL INFLATION STATION
Inflate all four tires to specification, at the same time.
ORDER ALIGNMENT RACK ACCESSORIES ONLINE
Keep raising your shop capabilities by purchasing alignment rack consumable 24/7 through Shop Hunter!
